  • PLX Devices DM-6 Multi Gauge

    MAP price match guarantee Unbeatable Price Guarantee
    Instant Savings!

    PLX Devices

    PLX Devices DM-6 Multi Gauge

    PART# PLX 897346002368
    We Price Match!

    Contact us to ensure you're getting the right part for your car at the absolute best pricing on earth!

    Email - sales@maperformance.com
    Phone 1(888)627-3736



    $ 99.99

    this item typically ships in 3-5 Days. Delivered by , to your door when ordered within hrs and mins

    Fits Your
    MAP Loyalty: Earn $ 2.00 Toward Next Purchase!

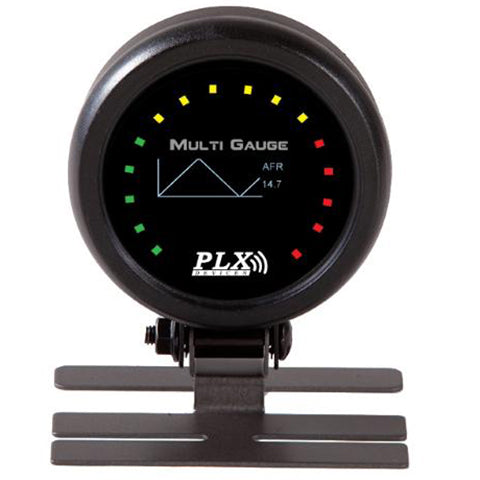

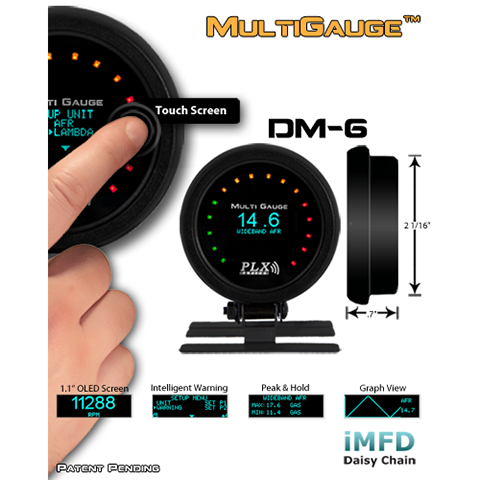

    The DM-6 Multi Gauge Display Module is an OLED automotive gauge designed to display the measured values from your PLX Sensor Modules. Measuring only 0.7" (18 mm) thin, it can be mounted virtually anywhere. The DM-6 Multi Gauge is designed to fit into most aftermarket 2 1/16" (52 mm) cups, and can be mounted for seamless integration into your vehicle. Utilizing new touch screen sense technology, buttons are a thing of the past. Navigate your gauge and menus with ease by touching the bezel of the gauge. An ideal accessory for your PLX Sensor Modules. Connect to a Multi Gauge with OBD II for even more information than any standard gauge.

    Features

    • Plug and Play
    • US and Metric Units
    • Automatic Sensor Detection
    • 180 deg viewing angle
    • Excellent daytime visibility
    • 3 position multi touch interface

    Kit Includes

    • DM-6 2 1/16" (52 mm) Gauge
    • 4 Pin connector for SM-AFR connectivity
    • 2 Terminals for 4 pin Connector
    • 3 Wire 8 V. Power Converter

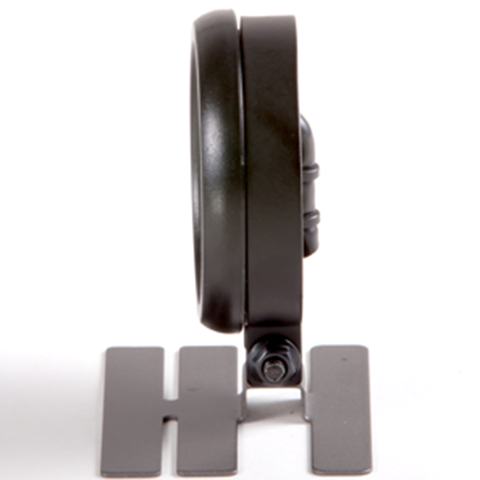

    Physical Dimensions: Standard 2 1/16 x 0.7" (52 X 18 mm)
    Display Technology: 1.10" OLED Screen (124 x 36 pixels)
    LED (16 Green, Yellow, Red)
    Viewing Angle: 180 Degrees
    Polarization: None
    Supply Voltage: 3.3V and 8V from SM Module
    Power Consumption: < 1 Watt
    Cable Length: 6' Power, 6" Serial
    Operating Temp: 0 - 85 Degrees Celsius
    Human Interface: 3 Button Capacitive Touch
    Number of Sensors: 16 Maximum Daisy Chain
    Supported Units: US Standard, Metric


    Sensor Address Units Min Max
    Wideband O2 0 0 - Lambda 0.68 1.36
    1 - Gasoline (14.7) 10 20
    2 - Diesel (14.6) 9.93 19.86
    3 - Methanol (6.4) 4.35 8.7
    4 - Ethanol (9.0) 6.12 12.24
    5 - LPG (15.5) 10.54 21.08
    6 - CNG (17.2) 11.7 23.39
    7 - E85 (9.76) 6.64 13.27
    Exhaust Gas Temp 1 0 - Celsius 0 1023
    1 - Fahrenheit 32 1873
    Fluid Temp 2 0 - Celsius Water 0 150
    1 - Fahrenheit Water 32 302
    2 - Celsius Oil 0 150
    3 - Fahrenheit Oil 32 302
    Vacuum 3 0 - Vac in/Hg 29.93 0
    1 - Vac mm/Hg 760 0
    Boost 4 2 - Boost 0-30 PSI 0 30
    3 - Boost 0-2 kg/cm2 0 2.07
    4 - Boost 0-15 PSI 0 15
    5 - Boost 0-1 kg/cm2 0 1.12
    6 - Boost 0-60 PSI 0 60
    7 - Boost 0-4 kg/cm2 0 4.22
    Air Intake Temp 5 0 - Celsius 0 150
    1 - Fahrenheit 32 302
    RPM 6 0 - 8k 0 8000
    1 - 12k 0 12000
    2 - 20k 0 20000
    Speed 7 0 - MPH 0 160
    1 - km/H 0 258
    Throttle Position 8 0 - Percent 0 100
    Engine Load 9 0 - Percent 0 100
    EOL>EOL>
    Sensor Address Units Min Max
    Fluid Pressure 10 0 - PSI Fuel 0 120
    1 - kg/cm2 Fuel 0 8.44
    2 - Bar Fuel 0 8.27
    3 - PSI Oil 0 120
    4 - kg/cm2 Oil 0 8.44
    5 - Bar Oil 0 8.27
    Timing 11 0 - Degree -64 64
    Manifold Absolute 12 0 - kPa 0 255
    Pressure (MAP) 1 - inHg 0 75.3
    Mass Air Flow (MAF) 13 0 - g/s 0 655.35
    1 - lb/min 0 86.69
    Short Term Fuel Trim 14 0 - Percent -100 100
    Long Term Fuel Trim 15 0 - Percent -100 100
    Narrowband O2 16 0 - Percent 0 100
    1 - Volts 0 1.275
    Fuel Level 17 0 - Percent 0 100
    Volt Meter 18 0 - Volts 0 20
    Knock 19 0 - Volts 0 5
    Duty Cycle 20 0 - Positive 0 100
    1 - Negative 0 100
    Fuel Efficiency 21 0 - MPG 0 100
    1 - KM/L 0.43 42.51
    2 - L=100KM
    Analog Voltage 22 0 - Volts 0 5
    Speed (Hertz) 23 0 - Hz 0 10,230

    Important Note: This item is not vehicle specific. It is compatible with a wide range of applications and is therefore displayed on our site regardless of your vehicle selection. Please review the specifications and verify compatibility prior to placing your order.
