    AEM Gauges X-Series 35PSI/2.5BAR Boost Pressure Display Gauge

    PART#
    We Price Match!

    Contact us to ensure you're getting the right part for your car at the absolute best pricing on earth!

    Email - sales@maperformance.com
    Phone 1(888)627-3736



    $ 181.51   $ 201.68
    Holiday Savings % ()

    Built To Order Delivered by , to your door when ordered within hrs and mins
    Fits Your
    MAP Loyalty: Earn $ 3.63 Toward Next Purchase!

    X-Series 35PSI / 2.5BAR Boost Display Gauge 30-0306

    AEM's 30-0306 X-Series -30in/Hg~35PSI / 2~2.5BAR Digital Boost Display gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want highly accurate boost pressure readouts up to 35 PSI or 2.5 BAR in their high performance vehicle.

    EASIER TO READ
    Visual improvements include a bright center LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping green LED needle lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance.

    EASIER TO MOUNT
    Despite the larger display, X-Series Gauges are contained in a standard 22/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825", with a cup depth of only 0.200". This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.

    SMARTER INTERFACE
    X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ2 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.

    AEM 30-0306 Features

    • 22/16th (52mm) gauge diameter for easy mounting in gauge pods
    • Slim 0.825" overall gauge depth and 0.200" cup depth mount them virtually anywhere!
    • Programmable center LED is 87% larger than original AEM gauges
    • 24 green outer LEDs for quick reference to engine parameter
    • User selectable standard or metric display ( -30in/Hg~35PSI / 2~2.5BAR)
    • Peak/Recall via gauge face buttons
    • User selectable threshold warnings

    Benefits

    • Optional silver bezel and white faceplate accessory kit available (sold separately)
    • AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
    • 0-5v analog outputs for transmitting data to EMS or Data Logger
    • Auto-dimming sensor delivers ideal display brightness
    • Positive locking connectors provide secure connection

    Please Note:

    • NOTE: The AEM 30-0306 comes with a black bezel and reversible black PSI/BAR boost pressure faceplate. You will need to purchase the optional 30-0306-ACC accessory kit to get the silver bezel and reversible white standard/metric boost pressure faceplate. Each faceplate is double sided with standard PSI on one side and metric BAR on the other. The calibration for standard or metric display is easily performed using the buttons on the face of the gauge.

    Applications

    • Universal Application

    What's in the Box?

    • Gauge
    • Black Bezel
    • Reversible Black Face (PSI / BAR)
    • Wiring
    • Hose
    • Installation Hardware and Accessories

    Warranty

    • AEM Limited Warranty

    X-Series 35PSI / 2.5BAR Boost Display Gauge 30-0306

    AEM's 30-0306 X-Series -30in/Hg~35PSI / 2~2.5BAR Digital Boost Display gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want highly accurate boost pressure readouts up to 35 PSI or 2.5 BAR in their high performance vehicle.

    EASIER TO READ
    Visual improvements include a bright center LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping green LED needle lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance.

    EASIER TO MOUNT
    Despite the larger display, X-Series Gauges are contained in a standard 22/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825", with a cup depth of only 0.200". This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.

    SMARTER INTERFACE
    X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ2 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.

    AEM 30-0306 Features

    • 22/16th (52mm) gauge diameter for easy mounting in gauge pods
    • Slim 0.825" overall gauge depth and 0.200" cup depth mount them virtually anywhere!
    • Programmable center LED is 87% larger than original AEM gauges
    • 24 green outer LEDs for quick reference to engine parameter
    • User selectable standard or metric display ( -30in/Hg~35PSI / 2~2.5BAR)
    • Peak/Recall via gauge face buttons
    • User selectable threshold warnings

    Benefits

    • Optional silver bezel and white faceplate accessory kit available (sold separately)
    • AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
    • 0-5v analog outputs for transmitting data to EMS or Data Logger
    • Auto-dimming sensor delivers ideal display brightness
    • Positive locking connectors provide secure connection

    Please Note:

    • NOTE: The AEM 30-0306 comes with a black bezel and reversible black PSI/BAR boost pressure faceplate. You will need to purchase the optional 30-0306-ACC accessory kit to get the silver bezel and reversible white standard/metric boost pressure faceplate. Each faceplate is double sided with standard PSI on one side and metric BAR on the other. The calibration for standard or metric display is easily performed using the buttons on the face of the gauge.

    Applications

    • Universal Application

    What's in the Box?

    • Gauge
    • Black Bezel
    • Reversible Black Face (PSI / BAR)
    • Wiring
    • Hose
    • Installation Hardware and Accessories

    Warranty

    • AEM Limited Warranty

    Customer Reviews

    Based on 10 reviews
    90%
    (9)
    10%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    J
    J.C.
    Works well, looks great

    As always great service from Tony at MAP. Shipping is stupid fast. The X-series gauges are great. Great functionality that goes beyond simply reading afr’s, boost, pressures, etc. I recommend this product to anyone looking to tune their vehicle.

    R
    R.
    Good

    For my evo 8 instalation the wirring was not too short.

    F
    F.
    Excellent

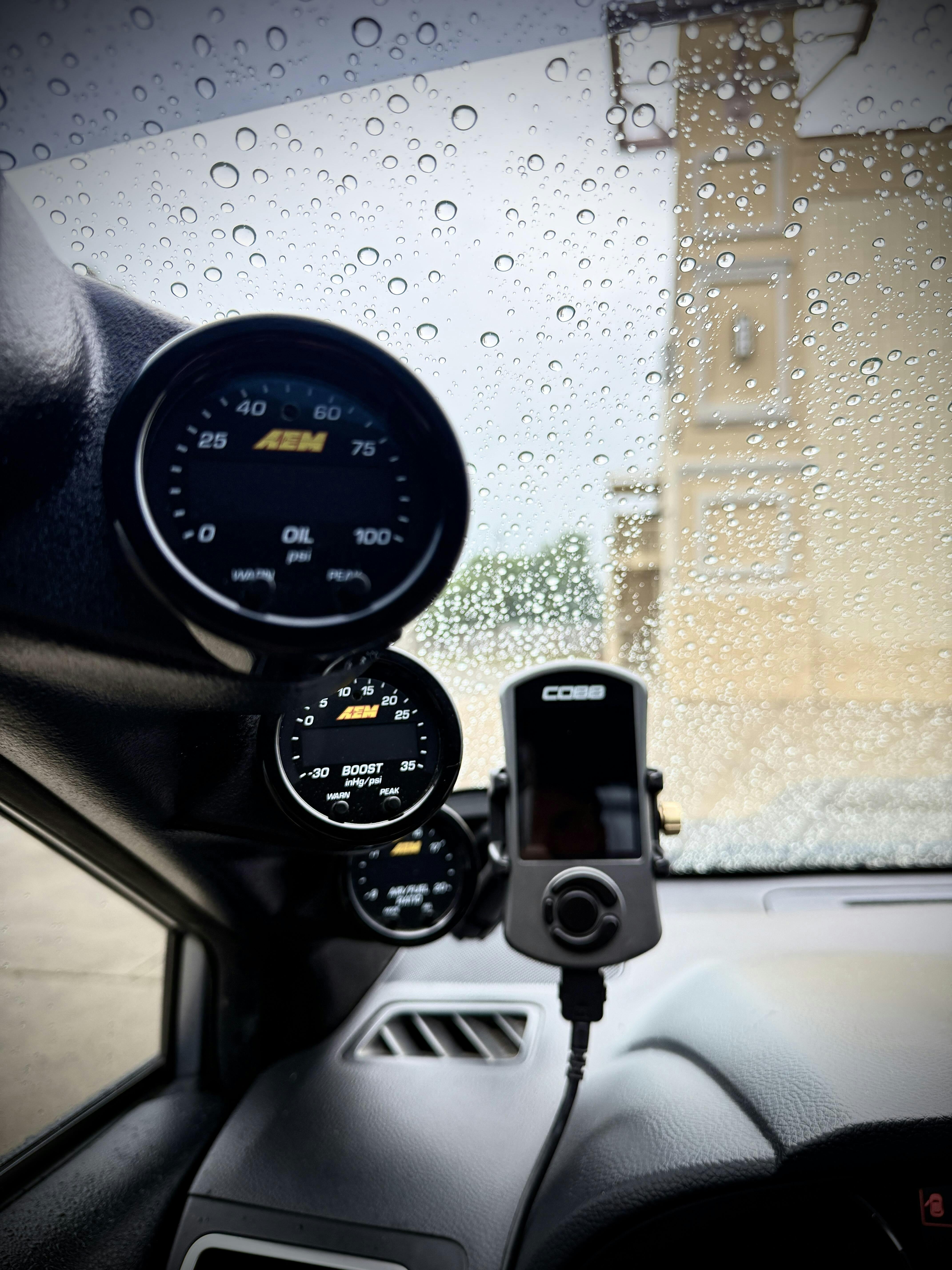

    I bought this boost gauge along with a X series oil pressure gauge. Very easy to read. Highly recommend

    F
    F.R.
    Awesome Gauge

    The X-Series gauges are awesome. I bought this with an oil pressure and wideband. Couldn't be happier. Works great!

    L
    L.
    Line and fittings do not match

    The T-fitting to tap the boost line is 1/8”, most lines are 1/4”. It comes with a rubber line 1/8 to match the T, but the adapter hose fitting nipple is 1/4”.
    The 1/4” fitting puts a lot of stress on the hose. With time and heat it can crack and leak.
    The harness for the sensor is too short needed to add about 8’ for an EVO X application.

    For the cost of this unit, you will think that comes reasonable amount of material and options.

    Is a good product, but the support material for installation is a joke.
