    MegaSquirt

    MegaSquirt MicroSquirt ECU w/ 8' Wiring Harness

    PART# MSQ MicroSqrt8
    We Price Match!

    Contact us to ensure you're getting the right part for your car at the absolute best pricing on earth!

    Email - sales@maperformance.com
    Phone 1(888)627-3736



    $ 388.00


      +1-888-627-3736
    Free delivery by , to your door when ordered within hrs and mins
    Fits Your
    MAP Loyalty: Earn $ 7.76 Toward Next Purchase!

    MicroSquirt ECU with 8' Wiring Harness by MegaSquirt

    The versatile MicroSquirt with 8′ Harness: Standalone Engine Management System, Transmission Controller or CAN I/O Expansion Module- Version 3.0

    MicroSquirt with 8′ Harness is an entry-level, fully assembled ECU and universal 8' pigtail with varied applications targeting power sports, single cylinder all the way up to 8 cylinders with up to 2 fuel and 4 spark outputs. Over 40 different ignition modes are supported from mainstream applications like GM LS1, Ford Zetec, Bosch Motronic, and Chrysler Gen III Hemis to unusual modes like Renix Jeep and the Suzuki Swift GTI.

    MicroSquirt transmission control free firmware allows you to use MicroSquirt to control a number of electronic automatic transmissions (gearboxes). It can work standalone or integrate with one of our ECU’s over canbus. Microsquirt I/O Box firmware also allows you to use a Microsquirt as a plug’n’play I/O extension box for MS3 or MS3Pro ECUs.

    Features (Engine Management Software)

    • Supports speed density, alpha-N (TPS based), or MAF based fuel and spark tables
    • 0.66 microsecond injector pulse width resolution
    • Allows blending multiple load types, including specialized mode for independent throttle bodies
    • Supports a wide variety of OEM cam and crank position sensors
    • Accelerator pump or model based acceleration enrichment
    • Closed or open loop idle speed and boost control -On/off nitrous control
    • Wankel rotary support: 2 rotor engines with separate leading and trailing spark tables
    • Staged injection
    • Table switching
    • 16 x 16 fuel and spark tables
    • 2 step rev limiter (launch control) with no-lift shifting
    • Wideband AFR target table
    • Flex fuel sensor input
    • Real time barometric correction (external sensor required)
    • Sequential shift cut and air shifter control

    Features (Transmission Control)

    • Control a number of electronic automatic transmissions (gearboxes)
    • Can work standalone or integrate with one of our ECU’s over canbus
    • Control applications: GM 4L60E I GM 4L80E I GM 4T40E I GM 5L40E (dev) I A341E I 41TE (dev) I Ford 4R70W I Ford E40D (dev) I Subaru W4A33 & more

    Features (CAN I/O Expansion)

    • 7 Analog inputs (0-5V variable)
    • 2 Wheel speed inputs (VR or hall type)
    • 2 Wheel speed (hall type) or ground-switch inputs
    • 1 dedicated ground-switch input
    • 2 high current PWM/switch ground-switching outputs
    • 4 mid current PWM/switch ground-switching outputs
    • 1 low current PWM/switch 0-12V output
    • Perfect for capturing and logging vehicle speed and additional sensor data

    Applications

    • Universal

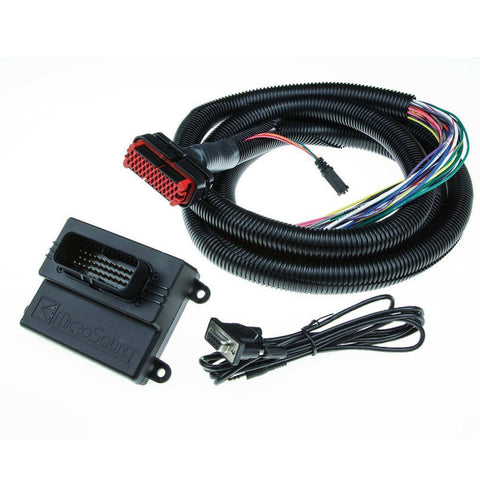

    What's In The Box?

    • 1 - Assembled MicroSquirt ECU
    • 1 - 8' Wiring Harness

    Warranty

    • Manufacturer Standard Warranty

    MicroSquirt ECU with 8' Wiring Harness by MegaSquirt

    The versatile MicroSquirt with 8′ Harness: Standalone Engine Management System, Transmission Controller or CAN I/O Expansion Module- Version 3.0

    MicroSquirt with 8′ Harness is an entry-level, fully assembled ECU and universal 8' pigtail with varied applications targeting power sports, single cylinder all the way up to 8 cylinders with up to 2 fuel and 4 spark outputs. Over 40 different ignition modes are supported from mainstream applications like GM LS1, Ford Zetec, Bosch Motronic, and Chrysler Gen III Hemis to unusual modes like Renix Jeep and the Suzuki Swift GTI.

    MicroSquirt transmission control free firmware allows you to use MicroSquirt to control a number of electronic automatic transmissions (gearboxes). It can work standalone or integrate with one of our ECU’s over canbus. Microsquirt I/O Box firmware also allows you to use a Microsquirt as a plug’n’play I/O extension box for MS3 or MS3Pro ECUs.

    Features (Engine Management Software)

    • Supports speed density, alpha-N (TPS based), or MAF based fuel and spark tables
    • 0.66 microsecond injector pulse width resolution
    • Allows blending multiple load types, including specialized mode for independent throttle bodies
    • Supports a wide variety of OEM cam and crank position sensors
    • Accelerator pump or model based acceleration enrichment
    • Closed or open loop idle speed and boost control -On/off nitrous control
    • Wankel rotary support: 2 rotor engines with separate leading and trailing spark tables
    • Staged injection
    • Table switching
    • 16 x 16 fuel and spark tables
    • 2 step rev limiter (launch control) with no-lift shifting
    • Wideband AFR target table
    • Flex fuel sensor input
    • Real time barometric correction (external sensor required)
    • Sequential shift cut and air shifter control

    Features (Transmission Control)

    • Control a number of electronic automatic transmissions (gearboxes)
    • Can work standalone or integrate with one of our ECU’s over canbus
    • Control applications: GM 4L60E I GM 4L80E I GM 4T40E I GM 5L40E (dev) I A341E I 41TE (dev) I Ford 4R70W I Ford E40D (dev) I Subaru W4A33 & more

    Features (CAN I/O Expansion)

    • 7 Analog inputs (0-5V variable)
    • 2 Wheel speed inputs (VR or hall type)
    • 2 Wheel speed (hall type) or ground-switch inputs
    • 1 dedicated ground-switch input
    • 2 high current PWM/switch ground-switching outputs
    • 4 mid current PWM/switch ground-switching outputs
    • 1 low current PWM/switch 0-12V output
    • Perfect for capturing and logging vehicle speed and additional sensor data

    Applications

    • Universal

    What's In The Box?

    • 1 - Assembled MicroSquirt ECU
    • 1 - 8' Wiring Harness

    Warranty

    • Manufacturer Standard Warranty
