Haltech Nexus S3 Plug 'n' Play Adapter Harness Kit | 2006-2007 Mitsubishi EVO 9 (HT-213318)

Nexus S3 Plug 'n' Play Adapter Harness Kit for 2006-2007 Mitsubishi EVO 9 by Haltech

Haltech's Nexus S3 is the successor to the acclaimed Elite 2500, offering a serious upgrade in performance and functionality. The S3 combines all the classic functionality of the Elite 2500 with new features and the superior processing power of the successful Nexus platform.

Features

• 8 x peak/hold injector drivers (can be used as low side drive outputs)
• 8 x low current ignition outputs (can be used as low side drive outputs)
• 6 x low side drive outputs, PWM capable (DPOs)
• 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
• 1 x ECR output
• 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
• Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
• 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
• 1 x on-board wideband controller, supporting NTK and LSU4.9
• 1 x on-board 4 bar MAP sensor
• 2 x CAN ports with switchable termination

Benefits

• Controlled via NSP (Nexus Software Programmer)
• Long Term Learning
• Stepper Motor Control
• 4D Closed Loop Boost Control
• Closed Loop CO2 Control
• Rotational Idle
• Launch Control
• Traction Control
• Anti-Lag
• Dual Knock Control
• Trans Brake Control
• Race Timer
• Multi Stage Fuel Injection
• Multi-level Engine Protection
• 6 Stage Nitrous Control
• 4-sensor variable cam control
• Intake Air Bleed Control
• Flat Shift Control
• Shock Travel & Ride Height Control
• Advanced Torque Management
• On-board Wi-Fi
• On-board datalogging (128MB)

Applications

• 2006-2007 Mitsubishi EVO 9

What's In The Box?

• 1 - Nexus S3 ECU
• 4 - Mounting bolts
• 1 - USB-C Cable w/ dust cap
• 1 - Quick Start Guide
• 1 - Wiring Diagram

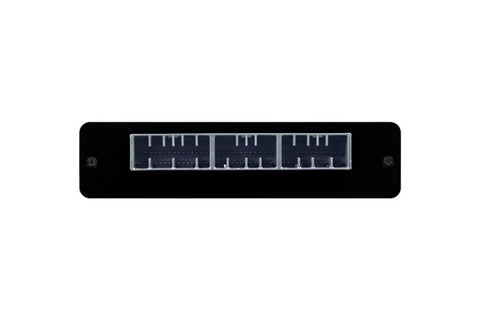

• 1 - Injection molded plastic plug 'n' play adaptor harness
• 1 - M14 x 1.5 air temp sensor with matching plug and pins
• Auxiliary I/O 16 Pin Tyco plug and pins

Warranty

• Limited Manufacturers Warranty
