Wisefab Front Drift Angle Lock Kit with Rack Relocation | 2003-2008 Infiniti G35 and 2003-2009 Nissan 350Z (WF350 INS)

2003-2008 Infiniti G35 and 2003-2009 Nissan 350Z Front Drift Angle Lock Kit with Rack Relocation by Wisefab

Wisefab Infiniti G35 front suspension kit with rack relocation is about the same weight as the original aluminum suspension. All the metal components on the G35 front suspension kit are from high-strength steel, including sheet metal components, tubes, tube ends, and rod end housings. Rod ends and spherical bearings are used, with no rubber bushings. Lower control arms are a one-piece design with a shock motion ratio.

Features

• One-piece lower control arm design
• Constructed from High-Quality Materials

Benefits

• 65 degrees of lock, parallel steering
• Adjustable lock stopper
• Higher roll center
• Very good camber control and minimal bump steer with high steering angles
• Steering jacking control
• Consistent and predictable self-alignment torque
• Adjustable spring and shock absorber motion ratio

Please Note: This kit assumes coilovers to have enough clearance. Ride height is designed to be ~80mm from front subframe to ground. Dependent on rim width and ET, wider fenders or fender flares would be needed. Inner wheel wells do not need to be modified with tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18, etc). Minimum rim diameter is 17”. Recommended backspacing is ~135mm (7“ ET45; 8“ ET35; 9“ ET20). If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used. The kit is designed and manufactured the way that after installation and toe adjustment it’s ready to use right away.

Applications

• 2003-2008 Infiniti G35
• 2003-2009 Nissan 350Z

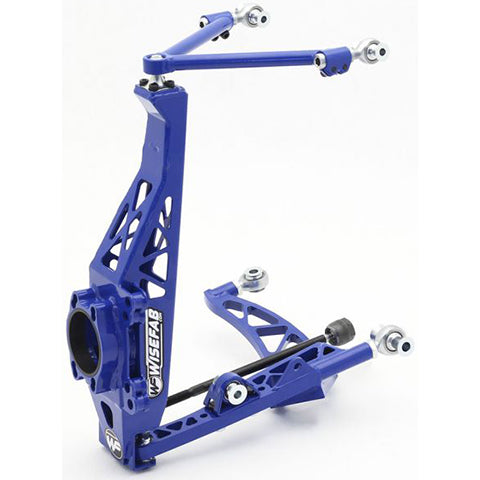

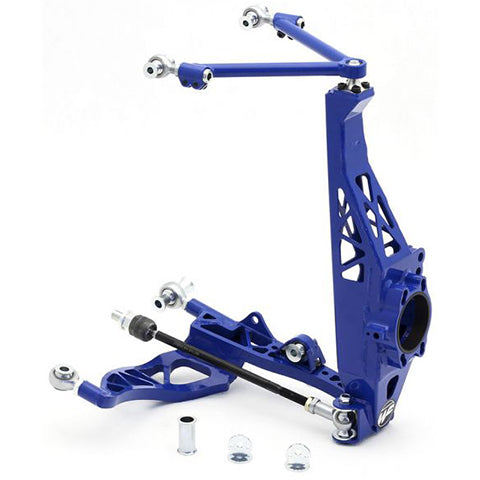

What's In The Box?

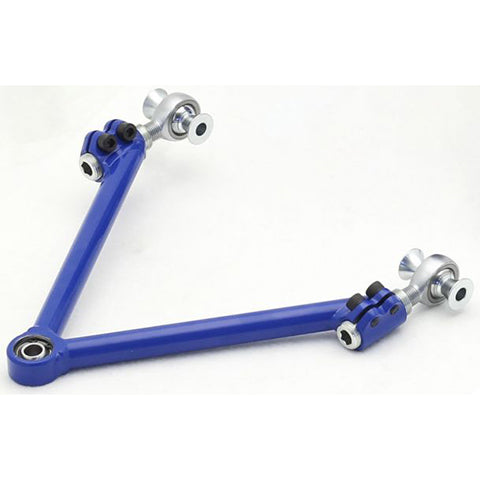

• 2 - Pre-Set Upper Control Arms

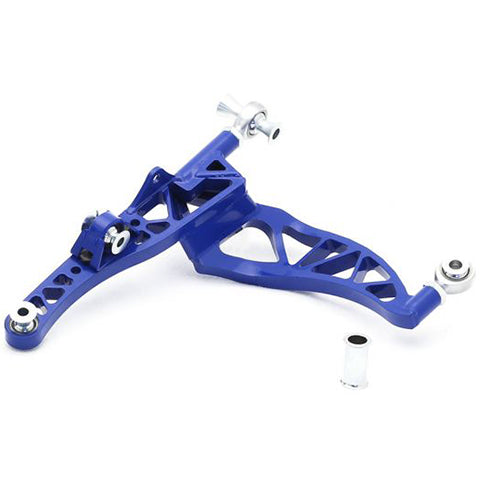

• 2 - Pre-Set Lower Control Arms

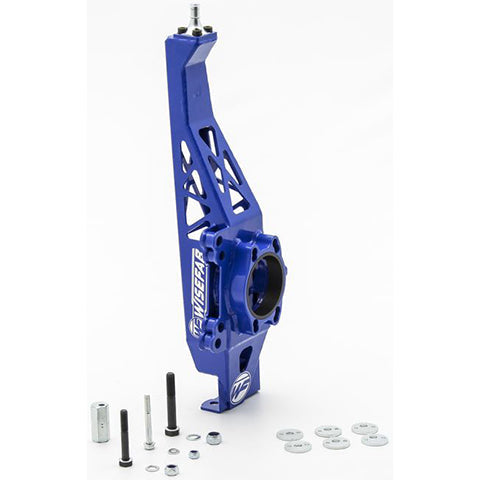

• 2 - Knuckles with Hardware
• 1 - Assembled Tie Rod Kit

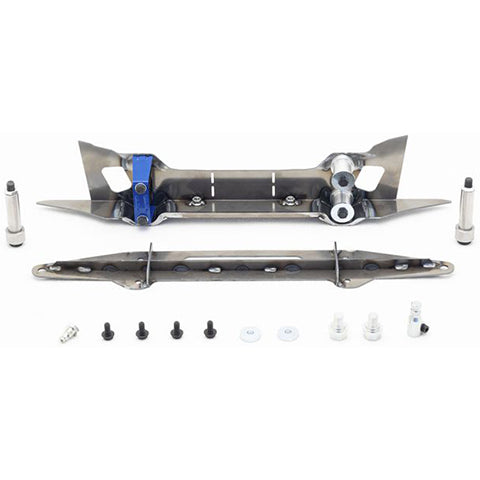

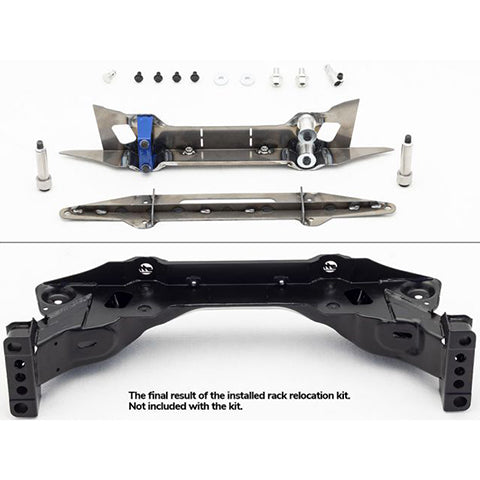

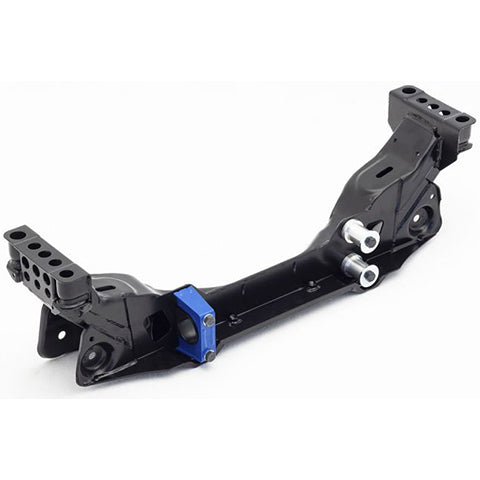

• 1 - Rack Relocation Kit

Warranty

• Wisefab's Limited Manufacturer's Warranty
