Wisefab Front Drift Angle Lock Kit | 2006-2011 BMW 3 Series/M3 (WF900)

2006-2011 BMW 3 Series/M3 Front Drift Angle Lock Kit by Wisefab

Wisefab BMW e9x lock kit can be fitted on a variety of BMW models. E90, E91, E92, E81, E82, E87, E88 M and nonM. Brackets included fitting the M brake caliper. Either M or nonM front coilovers would work with Wisefab E90 knuckle. All the metal components on the Wisefab E90 front suspension are from high-strength steel, including sheet metal components, tubes, tube ends, and rod end housings. Rod ends and spherical bearings are used, with no rubber bushings.

Features

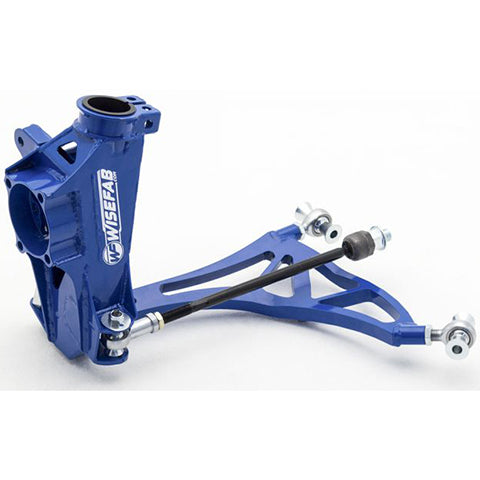

• One-piece lower control arm design
• Constructed from High-Quality Materials

Benefits

• 65 degrees of lock, parallel steering
• Adjustable lock stopper
• Higher roll center
Very good camber control and minimal bump steer with high steering angles Steering jacking control Consistent and predictable self-alignment torque

Please Note: This kit assumes coilovers, to have enough clearance. Ride height is designed to be ~80mm from front subframe to ground. Dependent on rim width and ET, wider fenders or fender flares would be needed. Inner wheel wells do not need to be modified with tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18, etc). The minimum rim diameter is 17”. Recommended backspacing is ~135mm (7“ ET45; 8“ ET35; 9“ ET20). If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used. The kit is designed and manufactured the way that after installation and toe adjustment it’s ready to use right away.

Applications

• 2006-2011 BMW 3 Series/M3

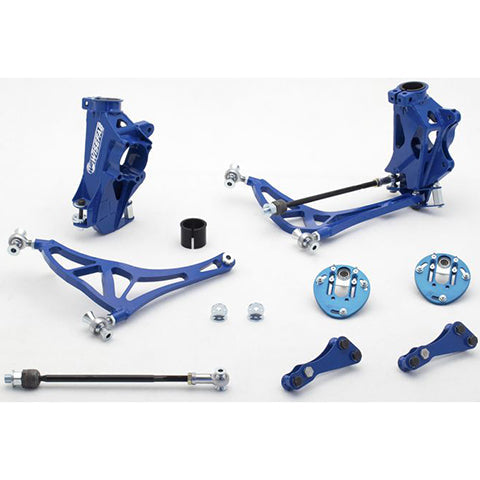

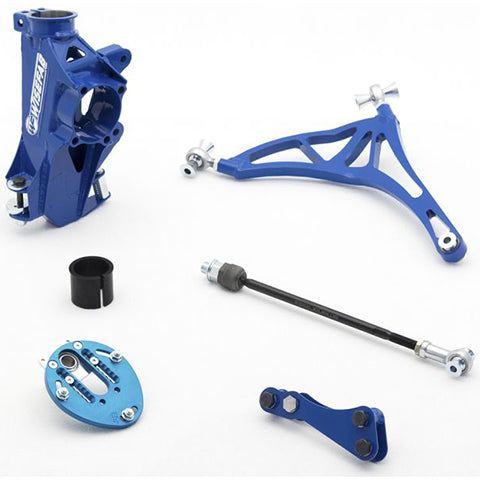

What's In The Box?

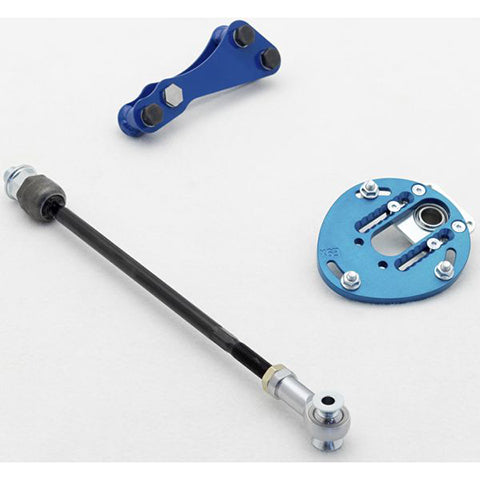

• 2 - Adjustable Coilover Upper Mounts, Formula Drift Compliance

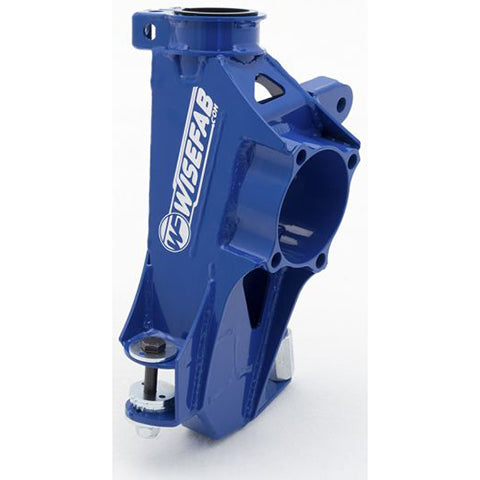

• 2 - Knuckles with Hardware

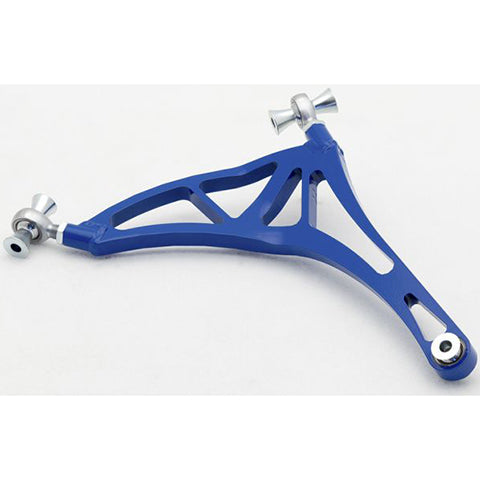

• 2 - Lower Control Arms
• 1 - Assembled Tie Rod Kit
• 2 - Brake Adapters for M Model Brakes
• 2 - 45mm Coilover Adapter Sleeve

References

• Installation Instructions

Warranty

• Wisefab's Limited Manufacturer's Warranty
