  • Wiseco Sport Compact Series Pro Tru Pistons | Multiple VW Fitments (K001ESV) - Modern Automotive Performance
  • Wiseco Sport Compact Series Pro Tru Pistons | Multiple VW Fitments (K001ESV) - Modern Automotive Performance

    Wiseco LSX 5.3 +6cc Dome Piston Set | Multiple Chevy Fitments (K0041X1)

    PART# WIS K001ESV
    No reviews

    $ 443.55

    Free Shipping

    MAP Loyalty Program: Earn $ 8.87 Toward Next Purchase!
    Wiseco Sport Compact Series Pro Tru Pistons | Multiple VW Fitments (K001ESV) - Modern Automotive Performance

    5.3L LSX Pistons

    Chevy EFI Late Models: As the leader in LS2 forged pistons, Wiseco pulled out all the stops when designing this series. These pistons are designed to accommodate the reluctor ring on stroker cranks without having to notch the pin bosses. Offset pins like OE and skirt shapes specifically designed for street applications make these the best available. They have been tested successfully in the highest horsepower applications.

    Features

    • Bore Size: 3.79
    • Comp Height: 1.321
    • Stroke: 3.622
    • Rod Length: 6.098
    • 0 Deck at: 9.230
    • Std. Deck Height: 9.240
    • Dome Volume: 6+
    • Comp Ratio @ 58cc: 11.5
    • Comp Ratio @ 61cc: 11.1
    • Pins (included): S785 (.945 x 2.250)
    • Tension Rings (included): 9625XX
    • Valve Pocket: LS1, 2, 3, 6, 92 (cathedral)

    Applications

    • 2013+ Chevy Corvette
    • 2013+ Chevy Camaro

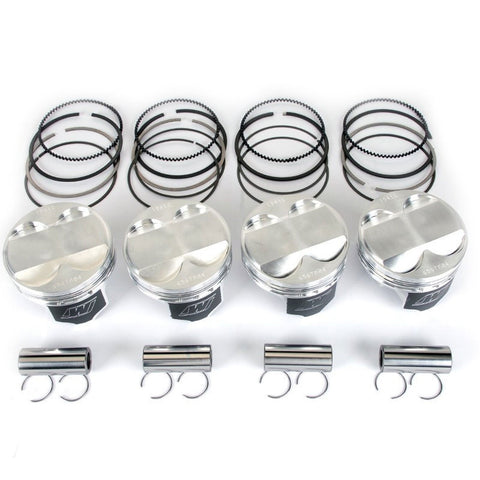

    What's in the box?

    • Pistons
    • Piston rings

    Warranty

    • PMI warrants that any Product manufactured by PMI will be free from defects in material and workmanship for 30 days following date of original purchase (“PMI Warranty”).
