Torque Solution V2 HD Oil Pan | Subaru EJ Engines (TS-SU-599V2-S)

Multiple Subaru Fitments HD Oil Pan by Torque Solution

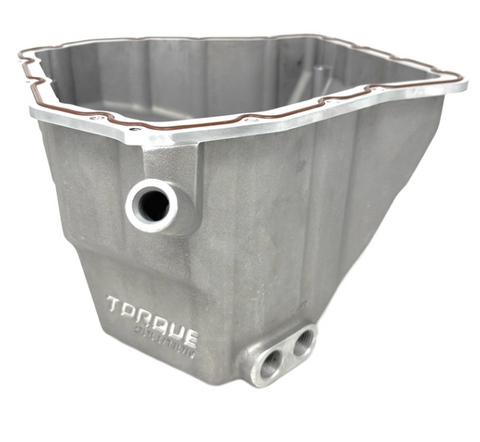

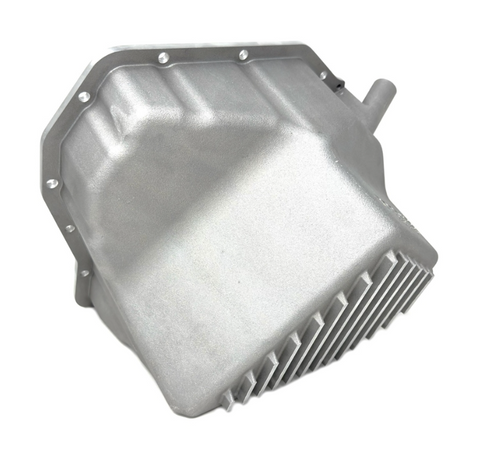

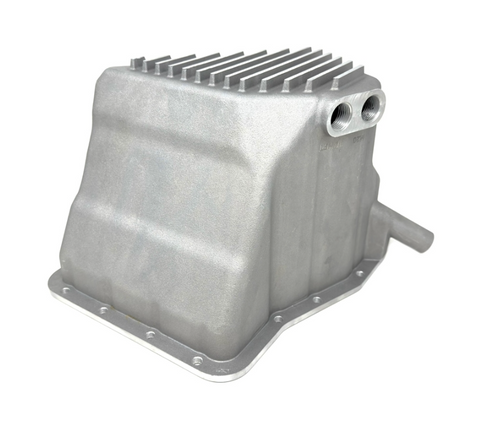

Torque Solution HD Oil Pan is the perfect solution to keep your EJ engine happy and lubricated. Our pan is molded from cast aluminum and then CNC'd to perfection. Featuring an FKM rubber o-ring gasket for a leak-proof seal and ease of installation or removal. No more scraping off gasket material!! We also incorporated cooling fins to the bottom of the pan, which are positioned to have airflow pass through them to aid in keeping oil temps down. We have also welded in internal baffles to prevent slosh and help keep the oil at the pickup where it is needed. All necessary installation hardware is included.

Features

• CNC'd Cast Aluminum
• Black Anodized
• Seamless FKM Rubber O-Ring Gasket

• CNC'd Cooling Fins
• M20 and 1/2" NPT Ports
• Stainless Steel and Alloy Install Hardware

Benefits

• 6 Quart Oil Capacity (Over 30% Increase In Oil Capacity)
• Welded Internal Baffles

Please Note: Will not fit OEM or Moroso oil pick up. Confirmed fitment with ETS and Killer B header. Perrin header needs a little work to fit, such as compressing the primary upper tube slightly down towards the lower tube. 02-05 WRX EJ20 engines must use an EJ25 Dipstick Part # 11140AA150

Applications

• 1992-1996 Subaru WRX
• 2002-2014 Subaru WRX
• 1997-1998 Subaru WRX Wagon
• 1997-1998 Subaru WRX STI
• 2004-2021 Subaru WRX STI
• 2005-2012 Subaru Legacy GT
• 2005-2009 Subaru Outback XT
• 2005-2006 Saab 9-2X Aero
• 1999-2004 Subaru Forester
• 1999-2004 Subaru Legacy
• 2000-2004 Subaru Outback
• 2003-2005 Subaru Baja

What's In The Box?

• 1 - Cast Aluminum Oil Pan

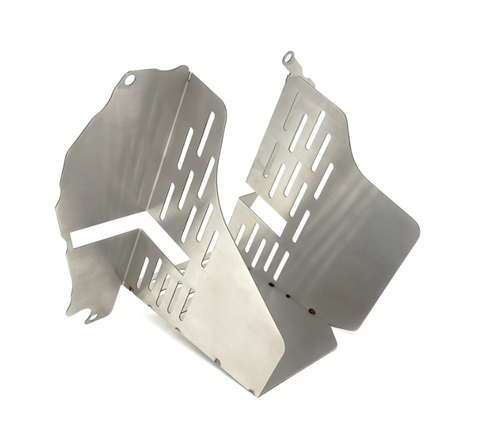

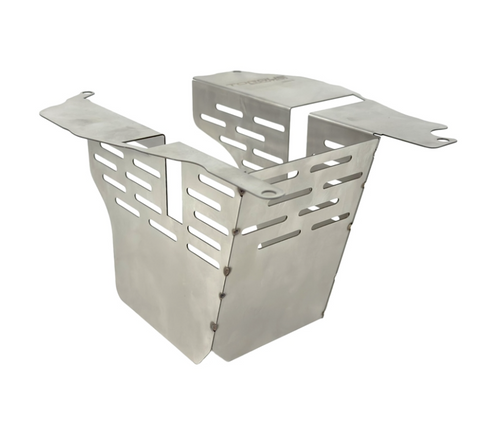

• 1 - Bolt-In Stainless Steel Street Baffle (pre-installed)
• 4 - M6 x 15 Stainless Button Head Bolt (pre-installed w/ baffle)
• 1 - Seamless FKM Rubber Oil Pan O-Ring Gasket
• 2 - FKM Rubber Dipstick Tube 2x10mm O-Ring Gasket
• 1 - M20 OEM Subaru Drain Plug P/N: 807020010
• 5 - M20 Copper Drain Plug Gaskets
• 1/2" NPT Brass Plug w/ Teflon Tape (used if not using a temp sensor)
• 1/2" NPT to 1/8" NPT Brass Plug w/ Teflon Tape (optional for oil temp sensor)
• 2 - Billet Aluminum Oil Pick Up Suction Tube Spacer w/ x2 -117 FKM O-Ring Gasket
• 2 - Billet Aluminum Oil Pick Up Pedestal Spacers
• 4 - FKM Rubber Spacer Bolt Retainer -008 O-Ring Gaskets (used to pre-install the spacers onto the oil pick-up)
• 4 - M6 Stainless Steel Flat Washer (for oil pick up spacer bolts)
• 2 - M6 x 30 Stainless Steel Socket Cap Bolt (oil pickup tube)
• 14 - M6 x 18 Stainless Steel Socket Cap Bolt (outside oil pan bolts)
• 2 - M6 x 25 Stainless Steel Socket Cap Bolt (oil pickup tube leg spacers)

Warranty

• Torque Solution offers a limited lifetime warranty on this product.
