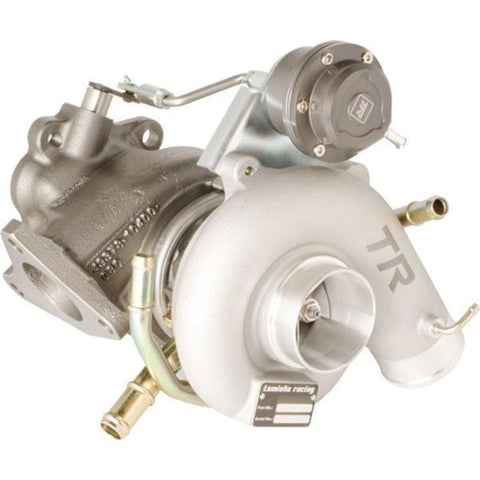

Tomioka Racing Billet TD05-18G Turbo | 02-07 Subaru WRX / 04-21 STI (TR-TS1021)

MAP Current Sales

Tomioka Racing

Tomioka Racing Billet TD05-18G Turbo | 02-07 Subaru WRX / 04-21 STI

PART#
Find a lower price!?

( We'll refund the difference! )

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Email - sales@maperformance.com

Phone 1-888-627-3736


$1,079.00

Ships for FREE by , when ordered within hrs and mins

Fits Your
MAP Loyalty: Earn $21.58 Toward Next Purchase!

02-07 WRX / 04-21 STI Billet TD05-18G Turbocharger by Tomioka Racing

The TD05-18G turbo is for a street/track car. The new billet TD05-18G turbo is rated for 450 HP and maintaining street street drivability. With lighter and stronger wheel blades than the TR TD05-20G. This turbo can handle mid to high-end horsepower without significant lag time compared to stock turbo!

Features

  • Journal bearing type
  • Billet compressor wheel
  • Standard Subaru 5-bolt flange type
  • Compressor wheel inducer: 52.5mm
  • Compressor wheel exducer: 68mm
  • Turbine wheel inducer: 56mm
  • Turbine wheel exducer: 49.2mm
  • 1.3 BAR/19psi billet wastegate actuator
  • Turbine housing: 8cm
  • Max power rating: 440 HP

Applications

  • 2004 - 2021 Subaru STI
  • 2002 - 2007 Subaru WRX

What's In The Box?

  • 1 - TR Billet TD05-18G Turbo

Warranty

  • Tomioka Racing warrants to the original retail purchaser that this Tomioka Racing product will be free from defects in material and workmanship for one (1) year from the date of original purchase

02-07 WRX / 04-21 STI Billet TD05-18G Turbocharger by Tomioka Racing

The TD05-18G turbo is for a street/track car. The new billet TD05-18G turbo is rated for 450 HP and maintaining street street drivability. With lighter and stronger wheel blades than the TR TD05-20G. This turbo can handle mid to high-end horsepower without significant lag time compared to stock turbo!

Features

  • Journal bearing type
  • Billet compressor wheel
  • Standard Subaru 5-bolt flange type
  • Compressor wheel inducer: 52.5mm
  • Compressor wheel exducer: 68mm
  • Turbine wheel inducer: 56mm
  • Turbine wheel exducer: 49.2mm
  • 1.3 BAR/19psi billet wastegate actuator
  • Turbine housing: 8cm
  • Max power rating: 440 HP

Applications

  • 2004 - 2021 Subaru STI
  • 2002 - 2007 Subaru WRX

What's In The Box?

  • 1 - TR Billet TD05-18G Turbo

Warranty

  • Tomioka Racing warrants to the original retail purchaser that this Tomioka Racing product will be free from defects in material and workmanship for one (1) year from the date of original purchase
