    Subaru OEM Engine Gasket & Seal Kit | Multiple Subaru Fitments

    PART# SUB 10105AB820
    We Price Match!

    Contact us to ensure you're getting the right part for your car at the absolute best pricing on earth!

    Email - sales@maperformance.com
    Phone 1(888)627-3736



    $ 252.01

    this item typically ships in 3-5 Days. Free delivery by , to your door when ordered within hrs and mins
    Fits Your
    MAP Loyalty: Earn $ 5.04 Toward Next Purchase!

    Subaru OEM Engine Gasket & Seal Kit

    This gasket set includes everything you need to rebuild your engine to OEM specifications.

      Applications

      • 2014-2017 Subaru Forester XT 2.0L
      • 2015-2017 Subaru WRX 2.0L

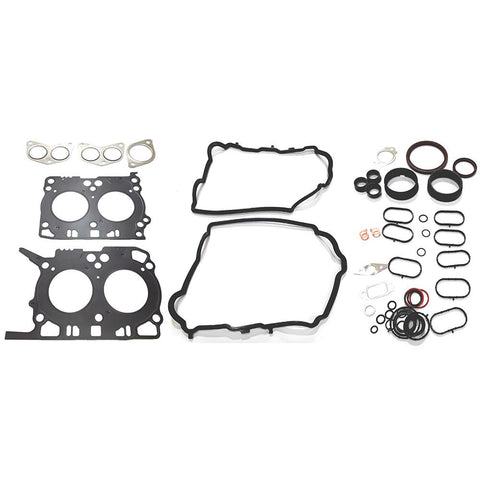

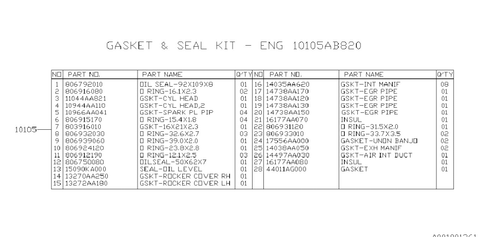

      What's In The Box?

      • (1) 806792010 Oil Seal 92 x 109 x 8
      • (2) 806916080 O-Ring 16.1 x 2.3
      • (1) 11044AA821 Cylinder Head Gasket
      • (1) 10944AA110 Cylinder Head Gasket
      • (4) 10966AA041 Spark Plug Pip Gasket
      • (4) 806915170 O-Ring 15.4 x 1.8
      • (1) 803916010 Gasket 16 x 21 x 2.3
      • (3) 806932030 O-Ring 32.6 x 2.7
      • (1) 806939060 O-Ring 39.0 x 2.0
      • (1) 806924120 O-Ring 23.8 x 2.8
      • (3) 806912190 O-Ring 12.1 x 2.5
      • (1) 806750080 Oil Seal 50 x 62 x 7
      • (1) 15090KA000 Oil Level Seal

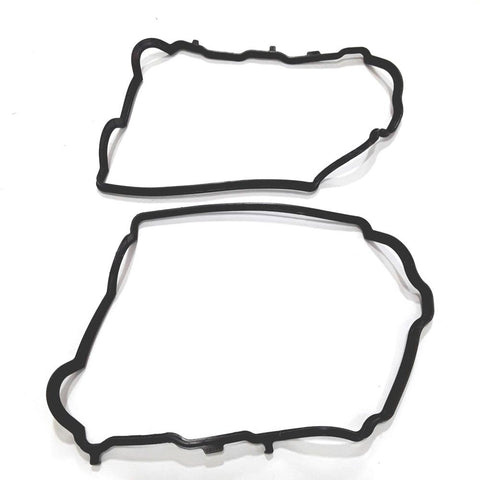

      • (1) 13270AA250 Rocker Cover Gasket (Right Side)
      • (1) 13272AA180 Rocker Cover Gasket (Left Side)
      • (8) 14035AA620 Intake Manifold Gasket
      • (1) 14738AA170 EGR Pipe Gasket
      • (1) 14738AA120 EGR Pipe Gasket
      • (1) 14738AA130 EGR Pipe Gasket
      • (1) 14738AA150 EGR Pipe Gasket
      • (1) 16177AA070 Insulation
      • (1) 806931120 O-Ring 31.5 x 2.0
      • (2) 806933010 O-Ring 33.7 x 3.5
      • (2) 17556AA000 UNON Banjo Gasket
      • (2) 14038AA080 Exhaust Manifold Gasket
      • (1) 14497AA030 Air Intake Duct Gasket
      • (1) 16177AA080 Insulation
      • (1) 44011AG000 Gasket

      Subaru OEM Engine Gasket & Seal Kit

      This gasket set includes everything you need to rebuild your engine to OEM specifications.

        Applications

        • 2014-2017 Subaru Forester XT 2.0L
        • 2015-2017 Subaru WRX 2.0L

        What's In The Box?

        • (1) 806792010 Oil Seal 92 x 109 x 8
        • (2) 806916080 O-Ring 16.1 x 2.3
        • (1) 11044AA821 Cylinder Head Gasket
        • (1) 10944AA110 Cylinder Head Gasket
        • (4) 10966AA041 Spark Plug Pip Gasket
        • (4) 806915170 O-Ring 15.4 x 1.8
        • (1) 803916010 Gasket 16 x 21 x 2.3
        • (3) 806932030 O-Ring 32.6 x 2.7
        • (1) 806939060 O-Ring 39.0 x 2.0
        • (1) 806924120 O-Ring 23.8 x 2.8
        • (3) 806912190 O-Ring 12.1 x 2.5
        • (1) 806750080 Oil Seal 50 x 62 x 7
        • (1) 15090KA000 Oil Level Seal
        • (1) 13270AA250 Rocker Cover Gasket (Right Side)
        • (1) 13272AA180 Rocker Cover Gasket (Left Side)
        • (8) 14035AA620 Intake Manifold Gasket
        • (1) 14738AA170 EGR Pipe Gasket
        • (1) 14738AA120 EGR Pipe Gasket
        • (1) 14738AA130 EGR Pipe Gasket
        • (1) 14738AA150 EGR Pipe Gasket
        • (1) 16177AA070 Insulation
        • (1) 806931120 O-Ring 31.5 x 2.0
        • (2) 806933010 O-Ring 33.7 x 3.5
        • (2) 17556AA000 UNON Banjo Gasket
        • (2) 14038AA080 Exhaust Manifold Gasket
        • (1) 14497AA030 Air Intake Duct Gasket
        • (1) 16177AA080 Insulation
        • (1) 44011AG000 Gasket
