Steeda Autosports

Steeda Rear Subframe Alignment Kit for BMR CB005 | 2015-2017 Ford Mustang

PART# STE 555-4447
Find a lower price!?

( We'll refund the difference! )

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Email - sales@maperformance.com

Phone 1-888-627-3736



$ 49.95

Ships by , when ordered within hrs and mins

Fits Your
MAP Loyalty: Earn $ 1.00 Toward Next Purchase!

S550 Mustang Rear Subframe Alignment Kit for BMR CB005 by Steeda Autosports

You asked and Steeda listened! The team here at Steeda went hard to work when we started fielding calls of the rear subframe being misaligned from the factory and there being no solution with the BMR CB005 kit. So here you have it, Steeda's new S550 IRS subframe alignment kit for the BMR CB005 kits!

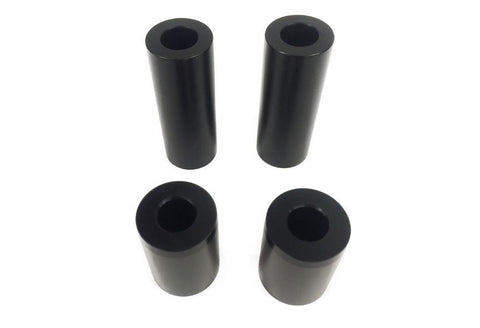

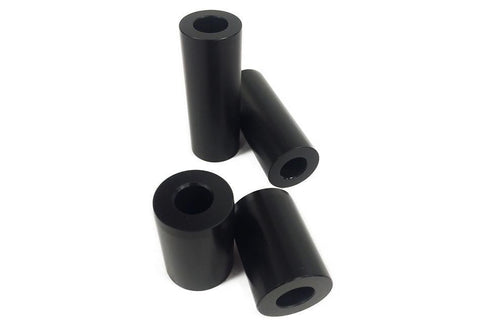

The S550's subframe mounting holes are very large compared to the subframe mounting bolts. Since there is a large difference in bolt and hole size, the subframe can be mis-aligned from the factory up to 1/2" left to right. The Steeda S550 Mustang IRS Subframe Alignment Kit is made from CNC-machined Delrin to avoid putting two dissimilar metals next to each other like the competition, preventing corrosion. Delrin is also less weight then aluminum or steel inserts and therefore keeping performance in mind. The Delrin sleeves slide into the subframe mounting holes, and fill the extra space left between the subframe mount and bolt from the factory.

Our Steeda S550 Mustang IRS Subframe Alignment Kit guarantees that the subframe will be bolted to the same location every time it is lowered. Eliminating the need for unnecessary alignments.

Features

  • Bolt-on design/No Permanent modifications necessary
  • Utilizes the full 2.0 degrees of adjustment from the factory
  • Works with stock camber arm, Steeda adjustable camber and aftermarket non-adjustable camber arms
  • Highest quality parts
  • Can be installed without removing the rear subframe
  • Lifetime warranty and MADE IN THE USA

PLEASE NOTE

An alignment is needed upon initial installation, due to the fact it could have been mis-aligned from the factory and with it now being squared in the chassis, some adjustments might need to be made. This part is designed to fit with BMR CB005.

Applications

  • 2015 - 2017 Ford Mustang EcoBoost
  • 2015 - 2017 Ford Mustang V6
  • 2015 - 2017 Ford Mustang GT

What's In The Box?

  • 1 - Rear Subframe Alignment Kit
  • Necessary Hardware
  • Instructions/Manuals
  • Warranty Information

Installation

  • Tools Required: Basic Tools
  • Time of Install: About 1 Hour
  • Level of Difficulty: Tech Recommended

References

Warranty



Steeda Autosports Warranty
