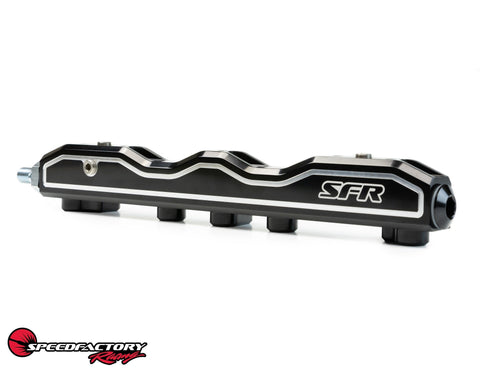

1990-2001 Acura Integra, 1999-2000 Honda Civic Si, and 1997-2000 Honda Civic Type-R Billet B-Series 10AN Mega Flow Fuel Rail by SpeedFactory
We set out to create the ideal B-Series fuel rail that would work for everyone from bolt-on street cars to a 2000+hp methanol monster like our Outlaw car - and the SpeedFactory Billet B-Series Mega Flow Fuel Rail is the result!
Our Mega Flow fuel rail features a GIGANTIC 0.806” fuel bore with -10 ORB inlet/outlets and Viton O-rings. Perfect for high volume ethanol & methanol fuels, and the large internal volume helps dampen the pressure pulses created by the massive fuel injectors now commonly being used.
Our fuel rail's OEM style fitment is compatible with almost all intake manifolds and OEM fuel pressure regulators.
Features
- Precision CNC machined from 6061-T6 billet aluminum
- Black Anodized finish throughout adds durability & eliminates corrosion
- Laser-etched SFR logo
- -10 ORB Inlet/Outlet ports with massive 20.4mm (0.806”) fuel bore supports even the most demanding 2000+hp turbocharged setups on high volume alcohol-based fuels
- Three (3) 1/8 NPT ports for fuel pressure takeoff options (example: gauge, sending unit, wet nitrous feed) and includes three (3) Stainless Steel 1/8 NPT plugs
- Three (3) additional M6x1.0 threaded holes that can be used for mounting brackets (example: throttle cable, EBC solenoid, etc.)
- Angled OEM fuel pressure regulator mounting provision for bolt-on applications that helps with intake manifold runner clearance
- Includes one (1) High-Flow OEM Banjo to -10 ORB adaptor fitting and one (1) -10 ORB Port Plug for use in bolt-on applications
- Constructed from high-quality materials
Applications
- 1989-1991 Honda CRX SiR
- 1989-1994 Honda Civic SiR
- 1992–1994 Honda Civic SiRII
- 1996–1998 Honda Civic SiR
- 1996–1998 Honda Civic SiRI
- 1997–2000 Honda Civic Type R
- 1999-2000 Honda Civic Si
- 1994-1997 Honda Del Sol
- 1992–2001 Acura Integra GS-R
- 1990–2001 Acura Integra RS
- 1990–2001 Acura Integra LS
- 1990–2001 Acura Integra GS
- 2000-2001 Acura Integra Type R
- 1996-2001 Honda CR-V
What's In The Box?
- q - Fuel Rail kf
Warranty
- SpeedFactory's Standard Limited Warranty
