Radium Engineering Clutch Fork Stop | Multiple Evo Fitments (20-0262)

Evo 8/9 and X Clutch Fork Stop By Radium Engineering | 20-0262

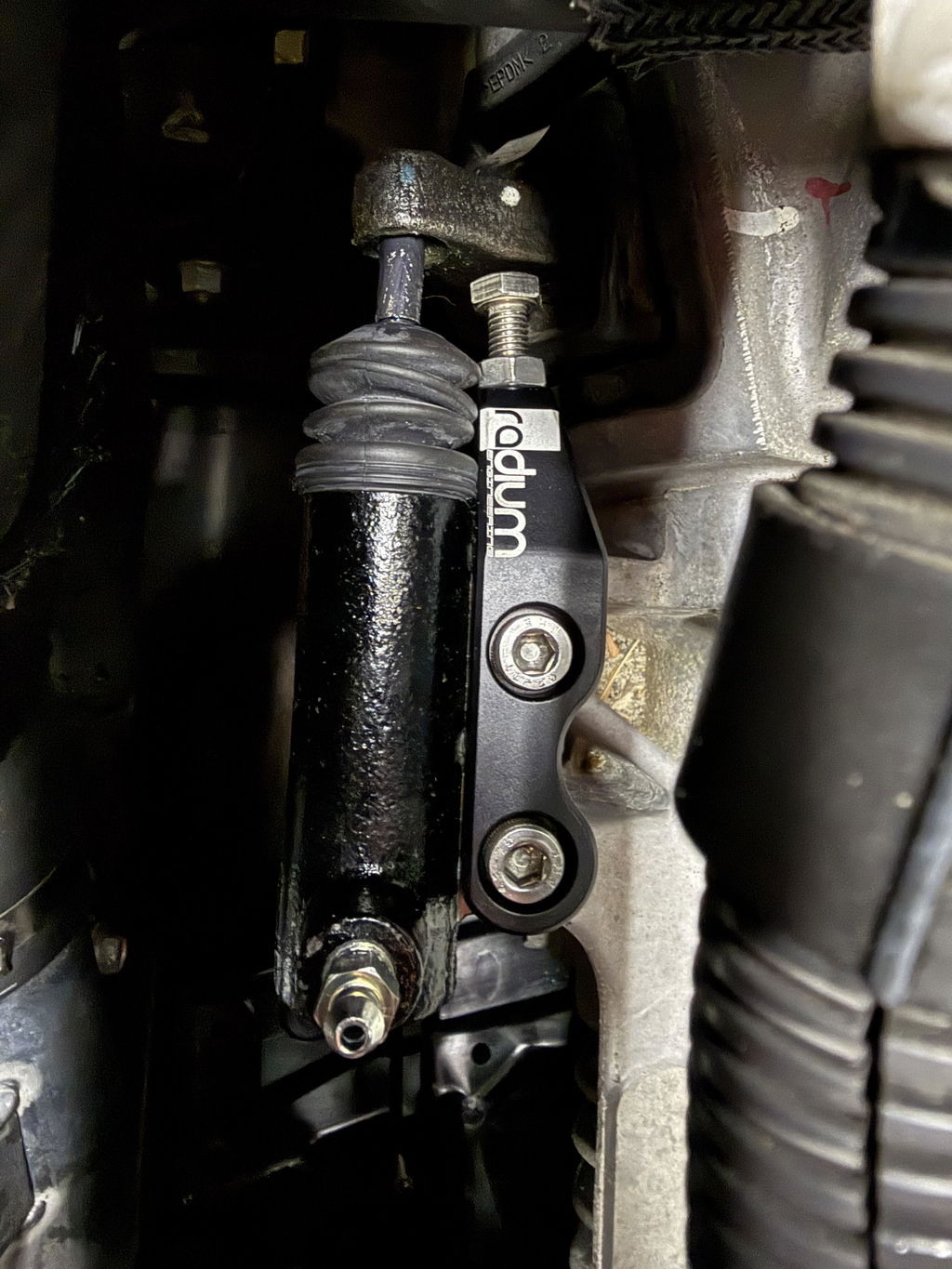

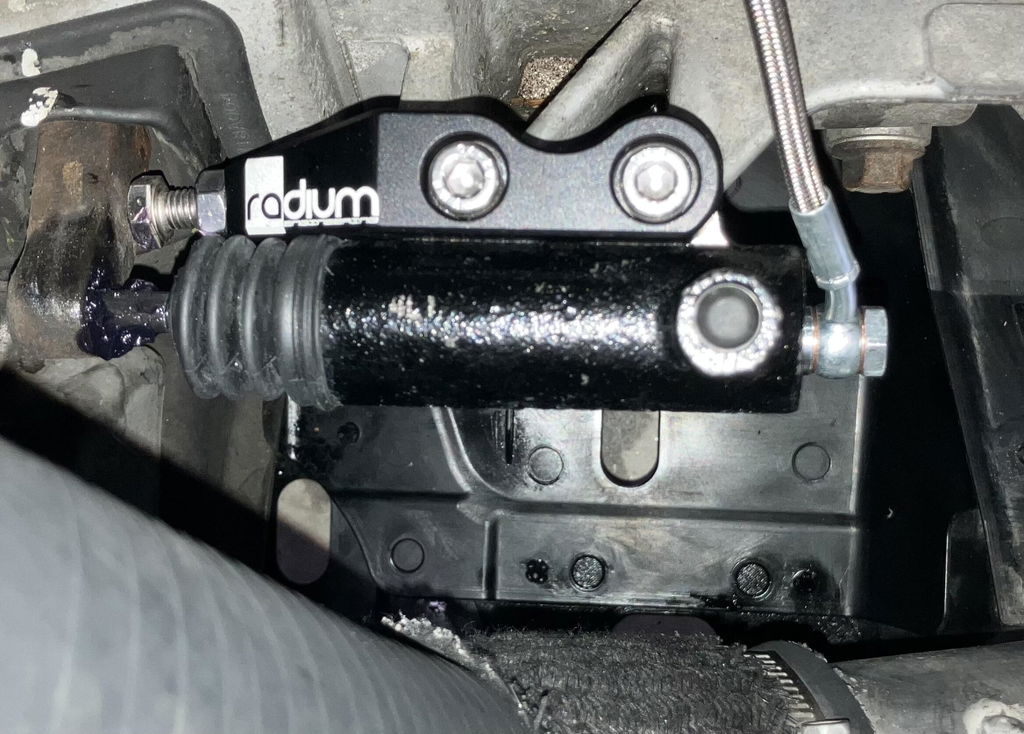

The Radium Engineering clutch fork return stop addresses a common problem on the Mitsubishi EVO pull-type clutch slave cylinder. During hard shifting and fast clutch pedal operation, the clutch fork can return too far and cause the throw-out bearing to become unclipped from the clutch fork. This results in expensive transmission removal to fix. The Radium clutch return stop prevents the fork from over-traveling, eliminating a throw-out bearing issue. Inexpensive insurance to protect your clutch. The clutch stop is multi-axis CNC machined in order to position the hex bolt precisely square with the clutch fork.

20-0262 Benefits

• Prevents the fork from over-traveling
• Eliminates throw-out bearing issue
• Inexpensive insurance to protect your clutch

Applications

• 2003-2005 Mitsubishi Evolution VIII with 5-Speed and 6-Speed transmissions
• 2006 Mitsubishi Evolution IX with 5-Speed and 6-Speed transmissions
• 2008-2015 Evolution X with 5-Speed manual transmission

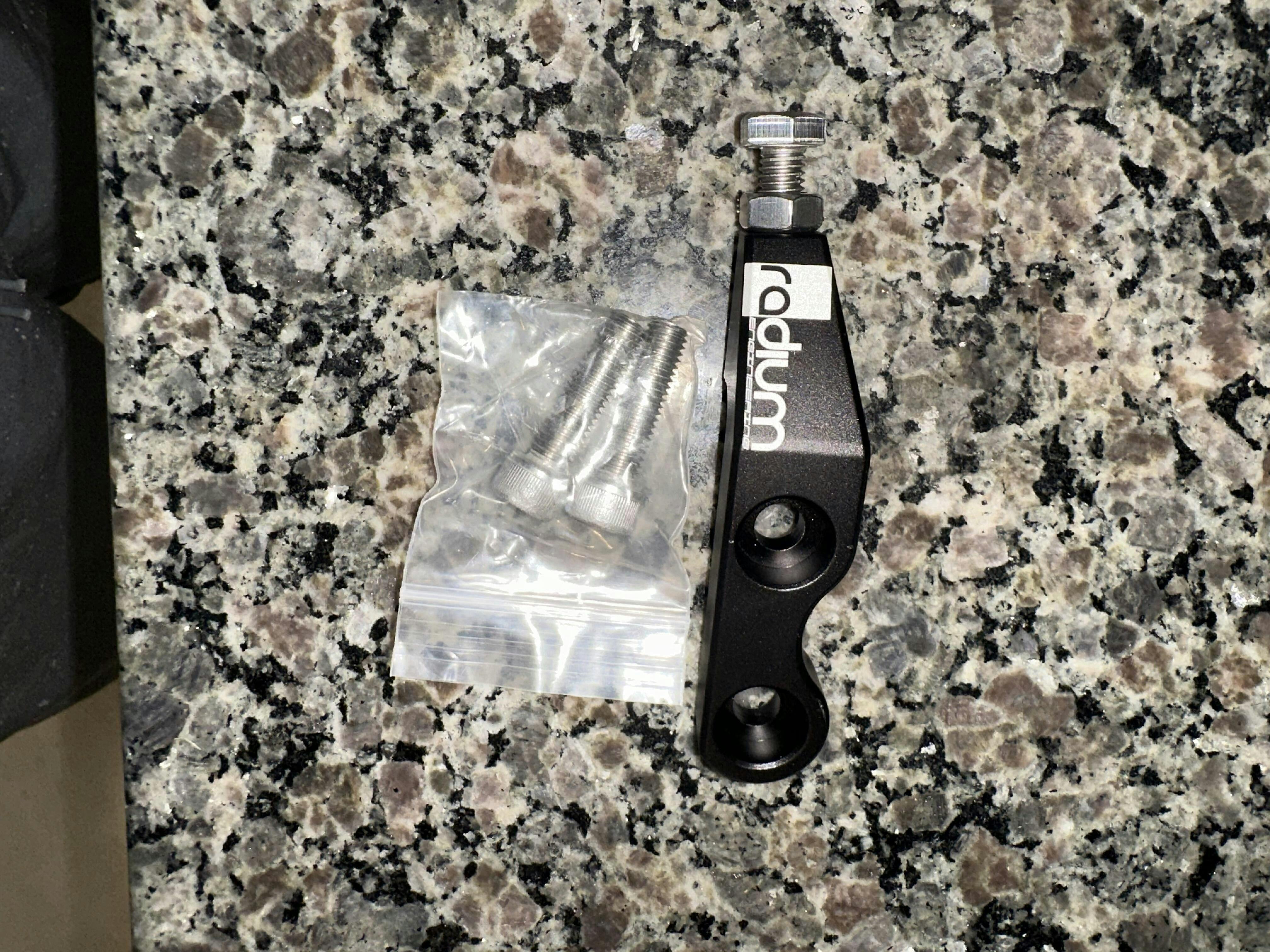

What's in the box?

• CNC machined/anodized clutch fork stop
• Stainless steel adjustment screw and lock nut
• Stainless steel mounting bolts
