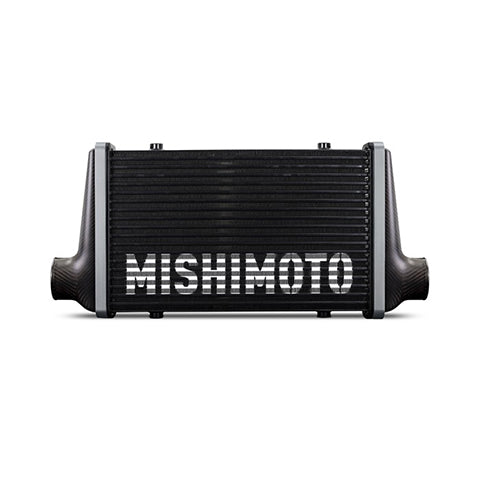

Mishimoto 450mm Core Universal Carbon Fiber Intercooler (MMINT-UCF)

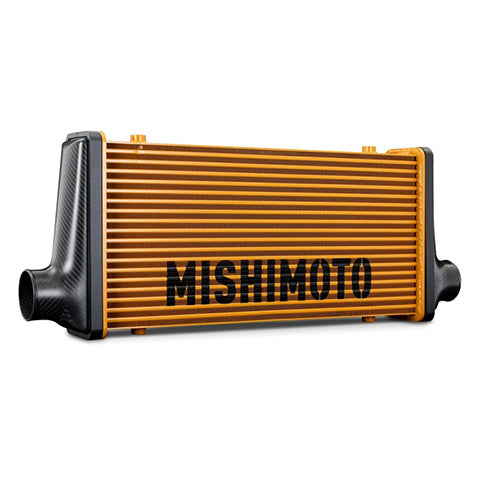

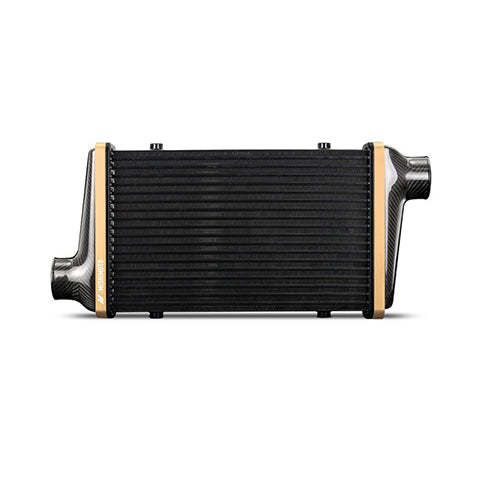

Universal Carbon Fiber Intercooler by Mishimoto

Building a performance vehicle is a quest for balance between opposing needs. Form vs function. Power vs weight. Strength vs lightness. Most of the time, one of those needs is more important to the build, so the other is sacrificed. But here at Mishimoto, we're done sacrificing. Thanks to our exclusive carbon fiber intercooler, you can have it all: aesthetics, performance, strength, and lightness all rolled into one innovative package.

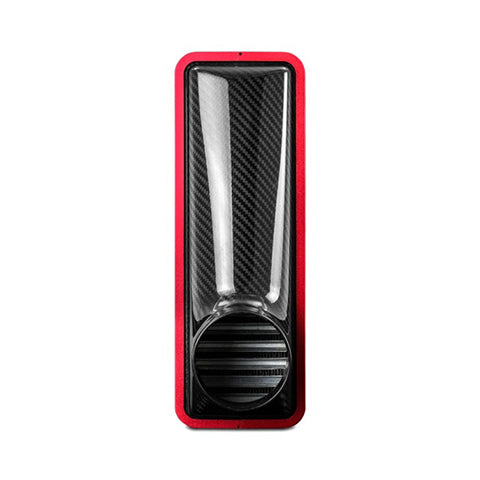

The end tanks are formed from solid 3K twill-woven carbon fiber. Carbon fiber gives our end tanks more strength than aluminum at nearly half the weight. Three sizes of custom-engineered cores between the carbon fiber end tanks, combined with 3-inch inlets optimized for flow, ensure our intercooler is up to the task for builds producing up to 950 horsepower and 30 PSI of boost. The one-of-a-kind V-band core clamps hold the end tanks tight to the core under boost without the use of adhesives that can fail after repeated heat cycles. To ensure the end tanks can hold up to the rigors of road or track, they've been independently laboratory tested to SAE J400 standards for gravel impacts. With the Mishimoto carbon fiber intercooler, you don't have to sacrifice performance or strength for lightness.

Carbon fiber isn't just strong, it's one of the most stunning raw materials available. Nothing beats the look of precisely woven carbon fiber; except precisely woven carbon fiber in your choice of matte or gloss finish, paired with eight different anodized V-band clamp colors, and three core colors. Over 280 combinations of colors and configurations mean the Mishimoto carbon fiber intercooler will fit any build and look good doing it. Universal M8 mounting bosses on either side of the core make mounting easy.

Each Mishimoto Carbon Fiber Intercooler is hand built to order in our Wilmington, DE facility and, like all our products, they're backed by our Mishimoto Lifetime Warranty for a lifetime of uncompromising performance. So, if you're tired of making sacrifices in your build, stop choosing "either-or" and give your vehicle all the performance, strength, lightness, and style it deserves.

Features

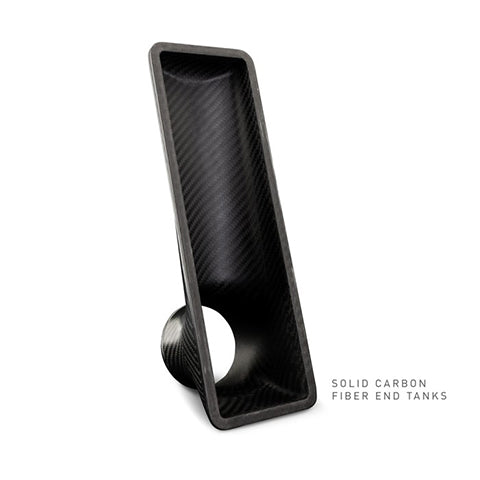

• Solid 3K twill-woven carbon fiber end tanks for maximum strength and lightness
• Over 200 possible configurations fit any vehicle, build, or style

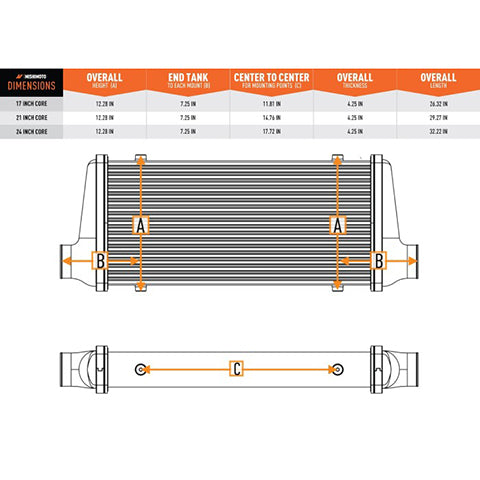

• Three core lengths - 450mm, 525mm, and 600mm
• Three core colors

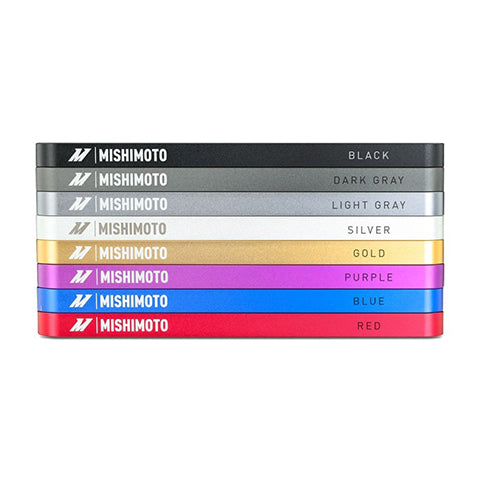

• Eight end tank clamp colors

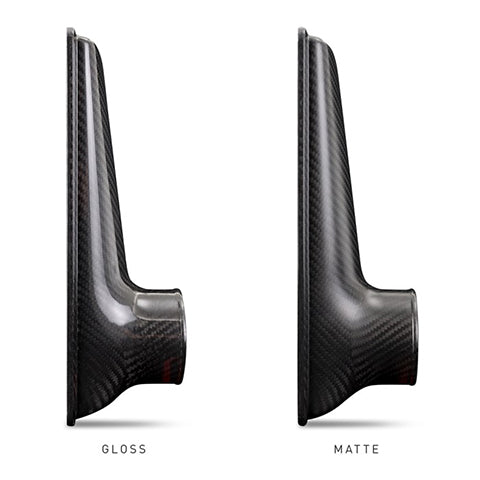

• Gloss or matte end tanks
• Offset or straight through flow
• Designed, engineered, and assembled in Mishimoto's U.S. facility

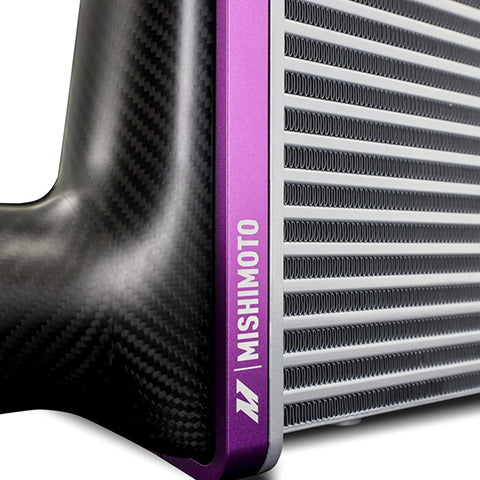

• Exclusive aircraft-grade anodized aluminum end tank clamps withstand high boost pressures
• Tube-and-fin core is optimized for effective cooling without excessive weight
• End tanks tested to SAE J400 standards for gravel impacts
• Viton end tank O-ring provides superior fuel, oil, and coolant resistance
• 3-inch inlet and outlet for optimal flow on high-horsepower builds
• Matching carbon fiber license plate frame included with purchase
• Compatible with Mishimoto universal 3-in couplers, intercooler pipes, and 50mm blow-off valve
• Multiple Patents Pending

Benefits

• Supports builds up to 950 horsepower

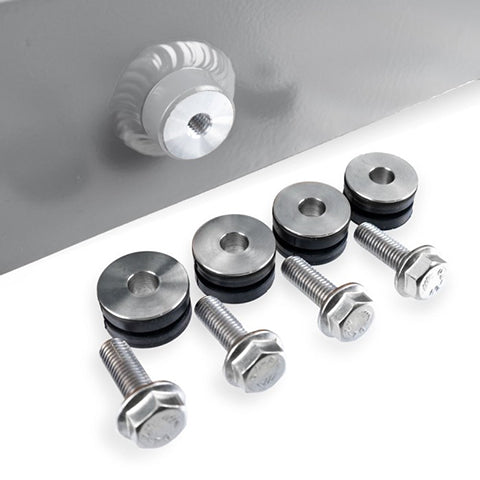

• Included vibration dampening isolators prevent damage from engine or body movement
• Core features four M8x1.25 threaded bosses on top and bottom for mounting versatility

Please Note: Looking for other sizes? Click here.

Applications

• Universal

What's In The Box?

• 1 - Mishimoto Custom-Built Carbon Fiber Intercooler
• 1 - M8 Mounting Kit with Hardware
• 1 - Carbon Fiber License Plate Frame

Warranty

• Mishimoto's Standard Limited Lifetime Warranty
