Mishimoto High-Performance -10AN Fuel Filter (MMFF-ST)

Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 651-927-4510

Email - sales@maperformance.com

Fits Your:
Expected Delivery by , when ordered within hrs and mins
 Need Help Getting Started?
Call Or Text Our Experts at 651-927-4510

$150.95 $201.08Instant Savings of 25% ($50.13)

Earn  $3.02 In MAP Rewards!

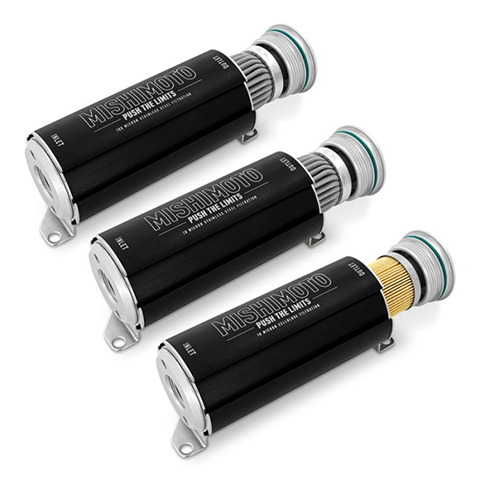

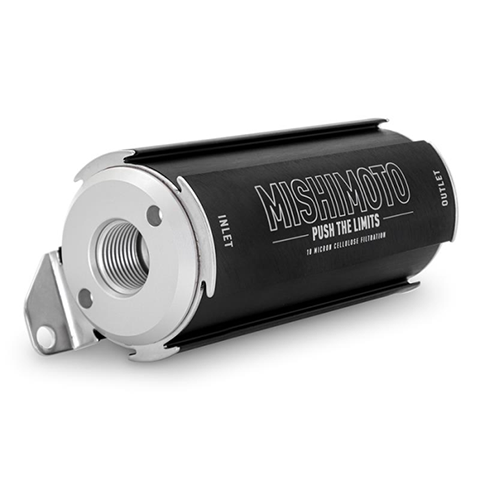

High-Performance -10AN Fuel Filter by Mishimoto

Building a high-performance vehicle is an expensive endeavor that requires meticulous planning of every square inch and when horsepower is nearing the 4-digit mark, one oversight can cause catastrophic failure. Each vehicle system needs to be running at peak performance, but no other system can cause thousands of dollars of damage faster than fuel. An undersized or clogged fuel injector, pump, or filter can cause too little fuel flow to the engine, resulting in not only a loss of power but also excessive heat. Even short periods of high cylinder temps can lead to detonation, melted pistons, or a seized engine and thousands of dollars in repairs.

The best way to prevent fueling issues is to install the best quality components from tank to injector, and our Mishimoto high-performance fuel filters fit the bill. This fuel filter utilizes a slim extruded-aluminum body that measures just over 2” in diameter to save space and make mounting easy. The high-flow filter cartridge and -10 ORB ports to provide up to 198 GPH (750 LPH). This fuel filter features an easy-to-replace cartridge-style insert in your choice of cellulose paper for petroleum-based fuels or welded stainless steel for use with alcohol-based fuels. Both our cellulose and stainless-steel filters are available with a 10-micron rating for use between the pump and fuel rail, while the stainless-steel inserts are also available with a 100-micron rating for pre-pump filtering. Replacement filters in both cellulose and stainless steel are available here.

Our filter inserts feature high-quality Viton O-rings and are rated to withstand up to 116 PSI for reliable performance on even the most demanding vehicles. Over 60 sq. in. of filter surface area protects valuable fuel pumps and injectors while allowing minimal pressure drop. Like all Mishimoto products, this slim high-performance fuel filter is backed by our Mishimoto Lifetime Warranty for a lifetime of performance.


  • Slim 2.16” (55mm) diameter body for mounting versatility and lightweight
  • Replaceable 100 and 10-micron filters for superior protection of vital fuel system components
  • Available with cellulose filter for petroleum-based fuels or reusable stainless-steel filter for alcohol-based fuels
  • -10 ORB inlets ensure adequate fuel flow and low-pressure drop in all situations
  • Requires Mishimoto High-Performance Fuel Filter Brackets
  • Extruded and anodized aluminum body is lightweight and durable to withstand the rigors of racing
  • Rated to withstand up to 116 PSI working fuel pressure
  • 10-micron filters recommended between pump and fuel rail
  • 100-micron filters recommended before the fuel pump


  • Flows up to 198 GPH (750 LPH) for high-horsepower builds
  • High-quality Viton O-rings prevent leaking under high pressures
  • Over 60 sq. in. of surface area reduces the risk of clogging and improves filtration


  • Universal

What's In The Box?

  • 1 - High-Performance Fuel Filter


  • Mishimoto's Limited Manufacturer's Warranty
