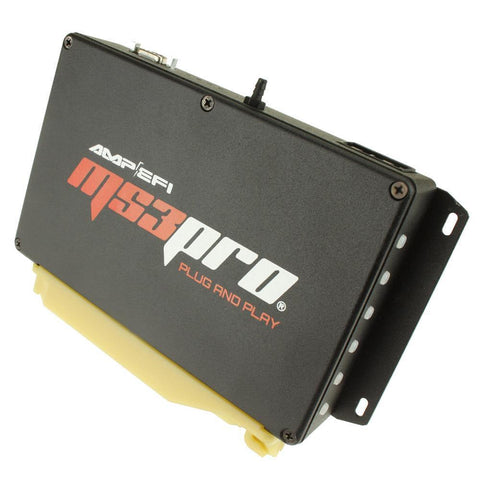

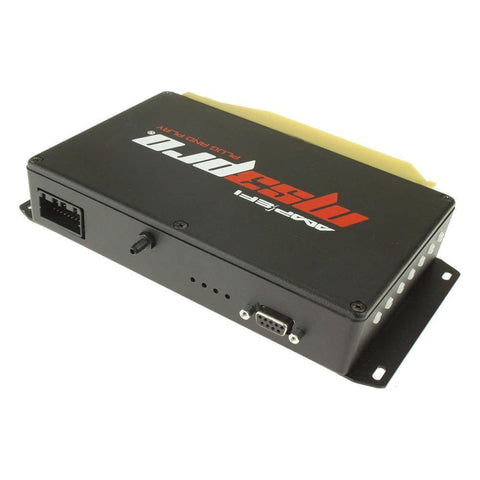

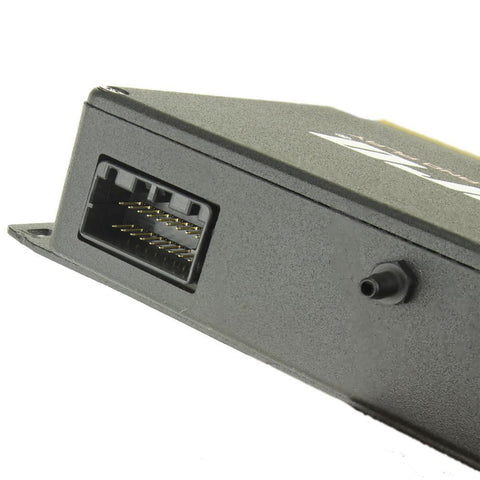

MegaSquirt MS3Pro PnP ECU | 1993-1995 BMW E36 (MSPNPPro-E369395)

93-95 BMW E36 MS3Pro PnP ECU Standalone Engine Management System by MegaSquirt

Replace your “413” or “506” DME with a tunable racing ECU! This BMW E36 ECU allows tuning your 1993-1995 BMW E36 (including the 1995 BMW M3!) with a laptop to handle any mods you can throw at these engines!

Fully Plug and Play Installation – No wiring required for basic functionality. The base map is pre-loaded to help your engine start on the first turn of the key.

Real time tuning and 8 GB internal data logging with a laptop connection. Supports most aftermarket wideband sensors.

Features

• 16×16 Fuel Tables allow high resolution tuning
• 16×16 Ignition Tables
• Multiple Acceleration enrichment strategies
• Closed Loop Idle Speed Control
• Air Conditioner Control
• 6 sequential fuel injector channels with individual trim tables
• Onboard peak and hold drivers support both high and low impedance injectors – No external ballast resistor is needed!
• Allows removal of stock MAF sensor
• VANOS control
• 12×12 Air Fuel Ratio Target Tables for use with wide band O2 sensor for precise tuning and table trim.
• Multiple traction control strategies
• Built-in 3-step rev limiter / launch control with flat shift and burnout rev limiter
• Time based timing / boost increase after launch
• Real time barometric correction
• Internal 4-bar MAP sensor reads up to 44PSI of boost
• Overboost protection
• Closed loop boost control (Requires EBC solenoid kit)
• CO2 based boost control
• Set boost by RPM and throttle, ground speed, or gear
• Rally style anti lag
• Water injection control – on/off or variable
• Knock sensor input with adjustable sensitivity, crank angle windowing, and more
• Table switching input. Change fuel and spark maps on the fly for different fuels, nitrous activation, etc.
• Input for flex fuel sensor – switch between E85 and gasoline on the fly!
• Supports many aftermarket dashes/displays such as Racepak, Race Technologies, AiM Sports, AEM, Dakota Digital, Autosports Labs, Perfect Tuning, etc.
• CANBus connector allows interconnection of other MegaSquirt-compatible devices for additional functions (EGT Input, Automatic Transmission Controller, Additional Sensors…..the possibilities are limitless!

Applications

• 1993 - 1995 BMW 325i with M50 motor and manual transmission
• 1995 BMW M3 with S50 motor and manual transmission
• 1993 - 1995 BMW 525i with M50 motor and manual transmission

What's In The Box?

• 1 - MS3Pro PnP ECU
• 1 - Serial Tuning Cable (6')
• 1 - Vacuum Hose (6')
• 1 - USB Memory Stick
• Tuning Software
• Mounting Brackets

References

• User Manual

Warranty

• Manufacturer Standard Warranty
