Manley Platinum Series Pistons - Full Set | 2007-2013 Mazdaspeed3 (630000C-4)

Mazdaspeed3 Platinum Series Lightweight Pistons by Manley Performance

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower.

All pistons come with moly coated skirts. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge.

Features

• 2618 high strength material; Lightweight design with offset wrist pin for quiet start-ups
• .150” wall Premium Chrome Moly pins included
• Pressure balance grooves
• Will accommodate +1mm valve sizes
• Premium Steel top ring sets and round wire locks included
• Available in 87.5mm (STD), 87.75mm (+0.25mm), or 88mm (+0.5mm) bore sizes

Specifications

• Rod Length: 5.927"
• Stroke: 94mm
• Comp Distance: 1.270"
• Dome Volume: -13.3cc
• Cylinder Head: 42cc
• Comp Ratio: 9.5:1
• Piston Type: Dish

Please Note:

• Recommended clearance is .0030" measured 1.100" from the bottom of the oil ring groove.

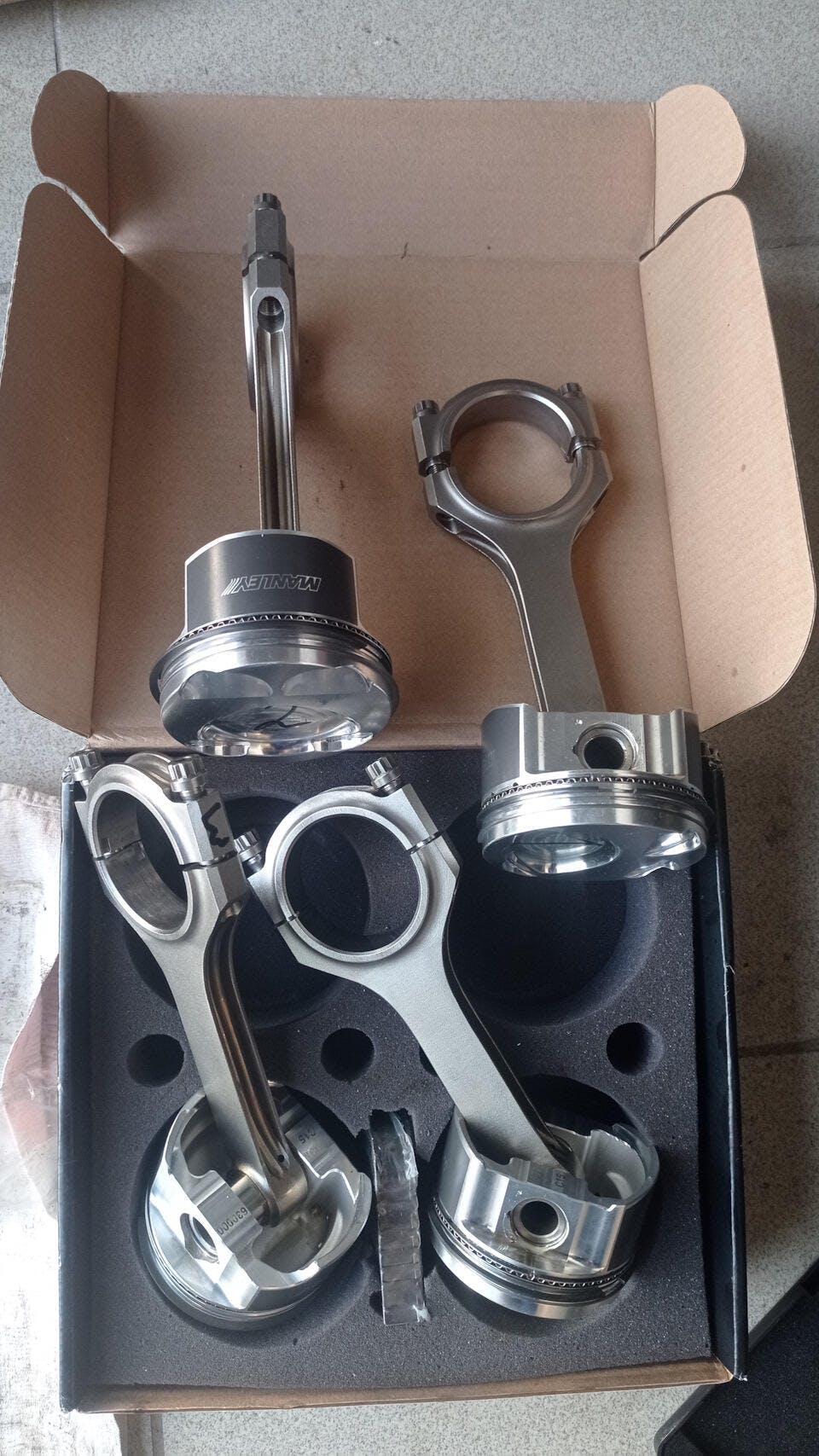

• The images provided are generic and the pistons you receive may differ in appearance.

Applications

• 2007 - 2013 Mazdaspeed3

What's In The Box?

• 4 - Platinum Series Pistons
• 4 - Ring Sets
• 4 - Pins

Warranty

• Manufacturer Limited Warranty
