JW Speaker: 735S-12/32V Lamp - BLACK Spot Beam w/Harness (1706571)

JW Speaker
SKU:
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 651-927-4510

Email - sales@maperformance.com

Fits Your:
FREE Delivery Expected by , when ordered within hrs and mins
 Need Help Getting Started?
Call Or Text Our Experts at 651-927-4510

$212.50

Earn  $4.25 In MAP Rewards!

High performance optics: solid-state electronics, and die-cast aluminum housing make this lamp extremely resistant to shock, vibration, and corrosion.

Features

  • Height: 137.16 mm / 5.4 in
  • Width: 144.27 mm / 5.68 in
  • Depth: 66.04 mm / 2.6 in
  • Shape: Oval
  • Outer Lens Material: Polycarbonate
  • Outer Lens Color: Clear
  • Housing Material: Die-Cast Aluminum
  • Housing Color: Black
  • Mounting Hardware Description: (x1) 5/16"-18 x 0.58" Mounting Bolt
  • Mounting Type Universal: Pedestal Mount
  • Minimum Operating Temperature: -40 degC / -40 degF
  • Maximum Operating Temperature: 65 degC / 149 degF
  • Connector or Wiring: Integrated 2-Pin Deutsch Weather-Proof Socket (DT04-2P)
  • Mating Connector: 2-Pin Deutsch Weather-Proof Plug (DT06-2S)
  • Product Weight: 1.87 lbs / 0.85 kgs
  • Shipping Weight: 1.87 lbs / 0.85 kgs
  • Input Voltage: 12-24V DC
  • Operating Voltage: 10-36V DC
  • Red Wire: Positive
  • Black Wire: Negative
  • Current Draw: 3.50A @ 12V DC, 1.75A @ 24V DC

Applications

  • Universal

What's In The Box?

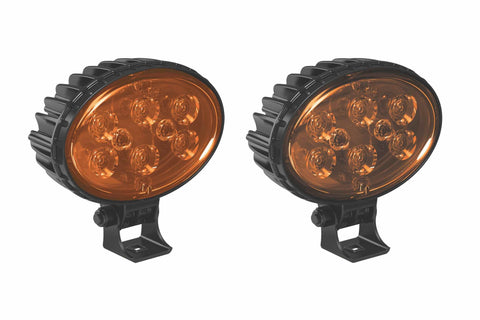

  • HOUSING: 1x JW Speaker Model 735 LED Oval Work Light
  • PART NUMBER: 1706571, 1706821, 1707051, 1706801, 1706581, 1706811, or 1707041
  • OTHER: Instruction Card + JW Speaker Sticker

References

Warranty

  • WARRANTY: Lifetime Limited
