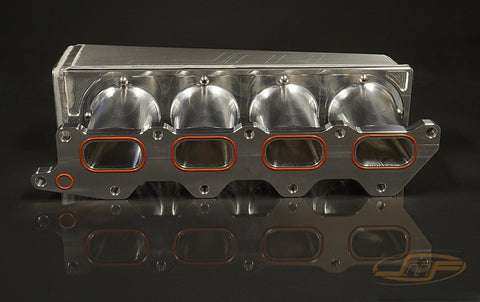

JM Fabrications "Street Version" Sheet Metal Intake Manifold | 1995-1999 2G DSM (2G-INTA-00)

JM Fabrications DSM "Street Version" Sheet Metal Intake Manifold

The JMF "STREET" version intake manifold is for those looking to add more power to your daily driver while keeping spool loss to a minimum.  A favorite for the Auto X crowd, the "STREET" version caters to smaller turbos and those who want an everyday reliable setup.  With over 10 years of proven results, our budget-friendly "STREET" version intake manifold is the best bang for your buck.  Our latest revision introduces a CNC machined billet runner section that bolts to the plenum for modular functionality.  Expected gains can be anywhere from 10-30 HP based on your setup and tuning.

Our manifolds are designed for DSM's with eliminated EGR. Some modifications to your coil pack mounts and upper intercooler pipes may be needed as this manifold sits down a lot lower than stock. If using the Accufab and other aftermarket throttle bodies please note that the throttle cable and TPS sensors may need modifying.

NEW: These manifolds now have NOS provisions standard. The NOS provisions are a small machined area on the runner section that will allow the end user to drill and tap for NOS nozzles should they have the need. There is a small dimple to mark center but they are NOT drilled so there is no need to plug any holes.

Features

• Made from 6061-T6 aircraft quality aluminum
• CAD designed
• CNC machined billet runner section
• Modular design for cost-effective upgrades
• CNC machined velocity stacks
• Tapered runners
• Inset plenum to virtually eliminate any chance of plenum failure from high boost/NOS
• O-ringed head flange eliminates the need for a gasket
• 5 port vacuum plate with 1/4" NPT threads
• NOS Provision (small dimple, not drilled)

Applications

• 1995-1999 2G DSM

What's In The Box?

• STREET version intake manifold
• (2) 3/8" brass hose barb
• (1) 1/4" brass hose barb
• (1) 1/8" brass hose barb
• (1) 1/4" NPT brass plug

Warranty

• 3 year warranty to the original owner
  Any incident from nitrous and/or other alternative fuels will void the warranty
