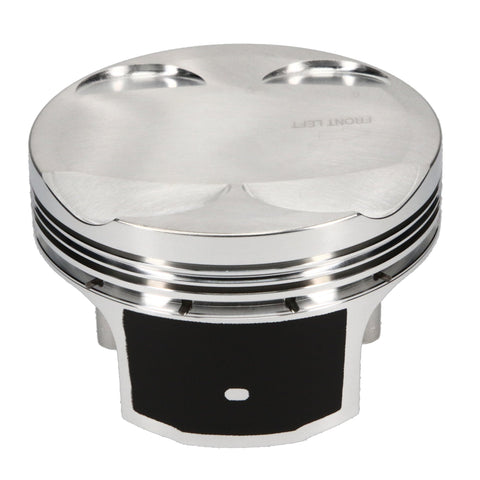

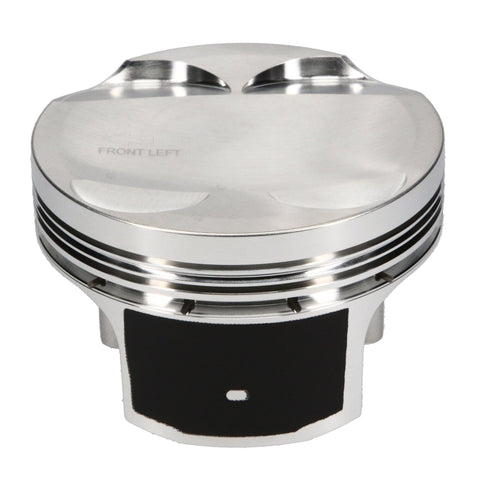

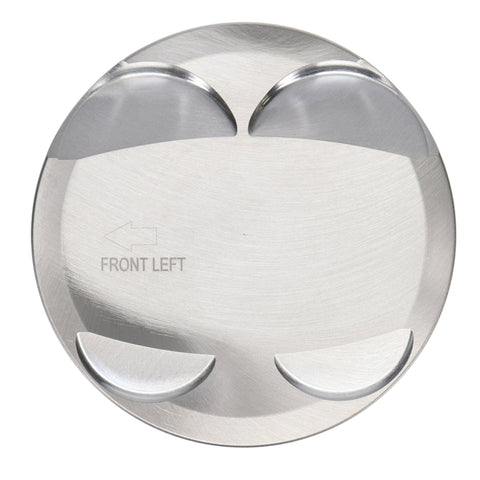

JE Pistons Forged Piston Kit - 3.572in Bore / 1.32in CH / -17.9 CC | 1993-2012 Ford Modular 4.6L 4V Engines (314694)

Ford Modular 4.6L 4-Valve Piston Kit by JE Pistons

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Features

• Cylinder Head: Modular 4.6L 4V
• Bore Diameter: 3.572 IN
• Piston Head Type: Dish
• Compression Height: 1.320 IN
• Piston Volume: -17.90 CC
• Piston Material: 2618
• Forging Type: FSR
• Piston Average Weight: 349 GR
• Top Compression Ring Thickness: 0.0480 IN
• Second Compression Ring Thickness: 0.0600 IN
• Oil Ring Thickness: 0.119 IN
• Wrist Pin Length: 2.250 IN
• Wrist Pin Wall Thickness: 0.150 IN

Benefits

• Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
• Designed specifically for each engine and use application to provide optimized performance durability
• Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
• Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
• Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
• Made 100% in the USA

Applications

• 1991 - 2014 Ford Modular 4.6L 4-Valve Engines

What's In The Box?

• 1 - JE Pistons Forged Piston Kit

Warranty

• Manufacturer Standard Warranty
