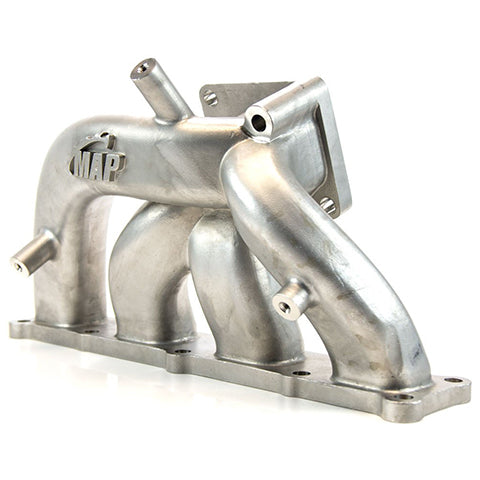

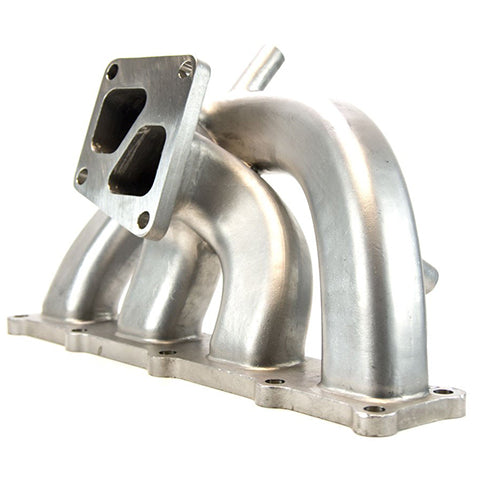

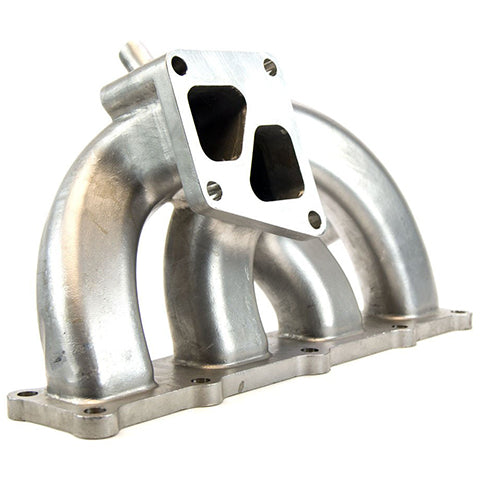

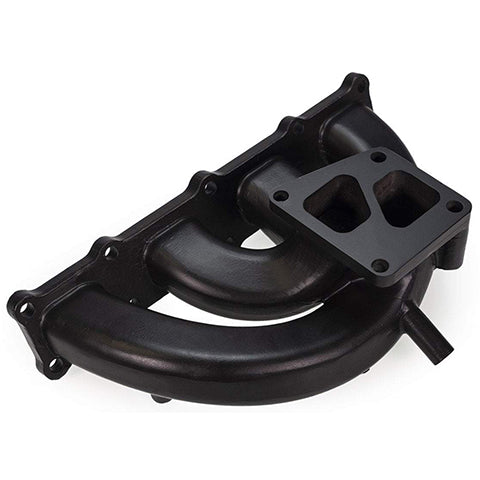

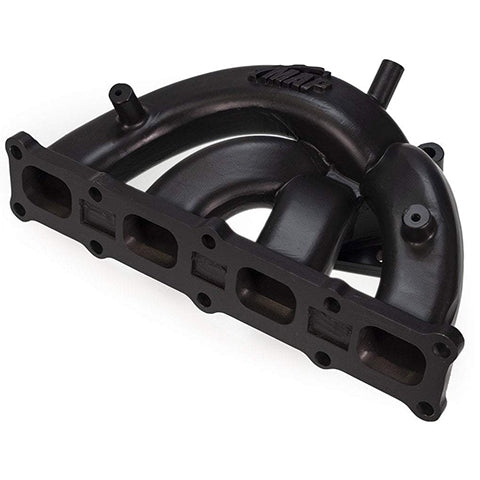

Cast Evo X Exhaust Manifold by MAPerformance
As an Evo X owner you could have purchased a base model Lancer, but you chose the turbocharged 291hp Evolution model instead. Some may argue that the AWD system was their main motiviation; While that may very well be true we're going to assume that, for the vast majority of you, the additional 139hp generated by the 4b11t powerplant sealed the deal. One dilemma...
Horsepower is addicting. And we've got a revolutionary new product that is sure to pique the interests of stock frame turbo owners everywhere. Drawing from our porting and tubular exhaust manifold design experience we've invested countless man hours into research and development of this manifold including 3D rendering, virtual flow testing, rapid prototyping, and ultimately flow bench testing to confirm that we have produced the best possible product for our customers. Yielding an astounding 22% average increase in exhaust flow over the OEM exhaust manifold and less imbalance this manifold will produce more power. Oh, by the way...
Your OEM exhaust manifold is most likely cracked, and it's only going to get worse. A bold statement indeed, but as one of the most popular resources for ported OEM exhaust manifolds we have been stock piling manifold cores for years. As of late it has become incredibly hard to find an OEM exhaust manifold without a crack in the collector. So what is the solution? The Investment Cast Stainless Steel Exhaust Manifold for Evo X by MAPerformance!
Features

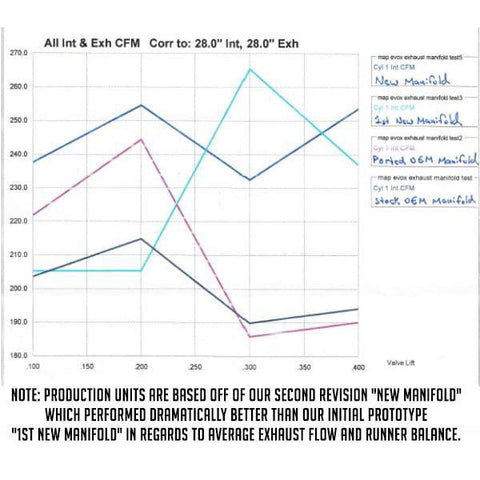

- Meticulously optimized design yields a 22% average increase in exhaust flow over the OEM exhaust manifold with less imbalance between runners (check out our flow testing results above)
- Investment cast 310s stainless steel construction
- Factory heat shield provisions
- Includes (2) allen head bolts to ease installation of the manifold to cylinder head
Benefits
- Performance. Increased exhaust flow and reduced imbalance between the runners will improve spool characteristics and produce more power.
- Durability. Constructed from 310s stainless steel to withstand cracking in the most demanding high temperature environments.

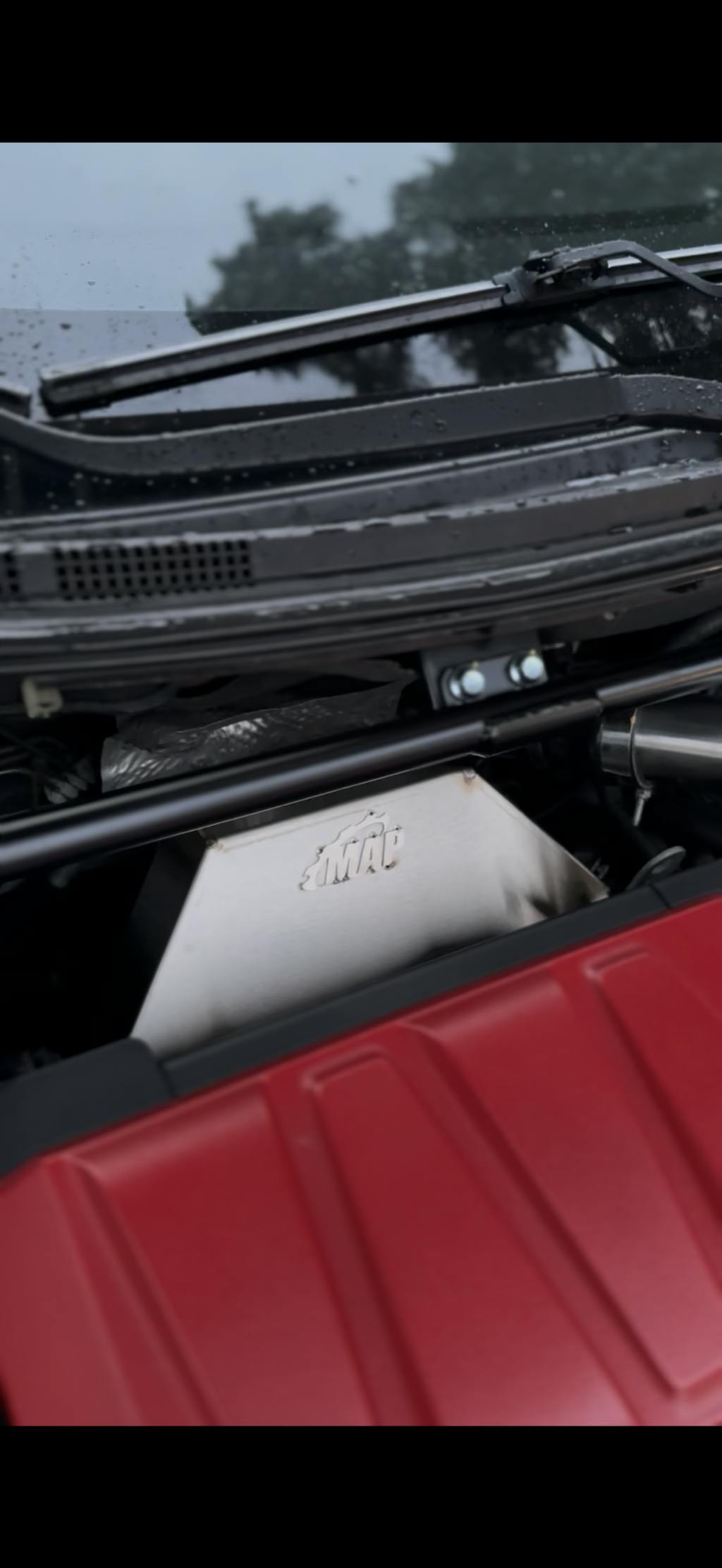

- Stealth. Whether it is your own personal desire to keep your upgrades on the down low or motivation from an external source you can simply install the factory heat shield and onlookers will be none the wiser.

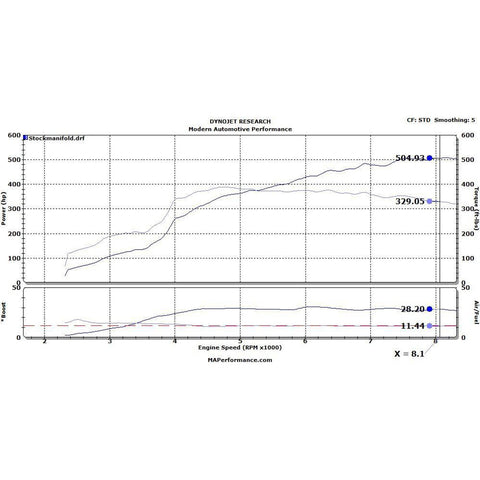

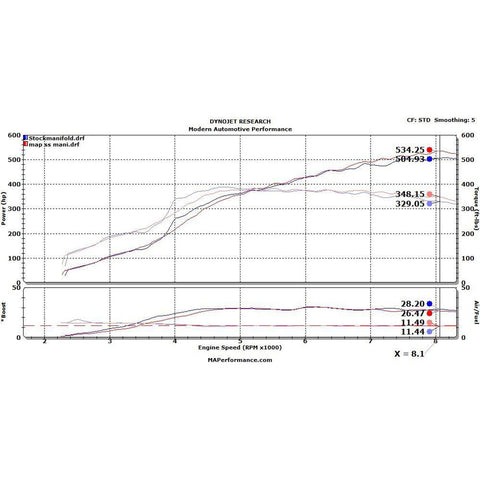

Dyno Testing Results
Test Vehicle: 2010 Mitsubishi EVO X
Our testing vehicle has a built bottom end with a stock sleeved 2.0L 4B11T. The Turbo has been upgraded to a MAP EF4, while the car itself has been tuned on E85
Stock manifold
- Dyno Room Temperature : 76 degrees
- Intake Air Temperature : 80.6 degrees at start, 84.2 degrees at end.
- Peak Torque Timing : 8 Degrees
- Peak HP Timing : 14 Degrees
- Full Boost Stock Manifold - 4937.5

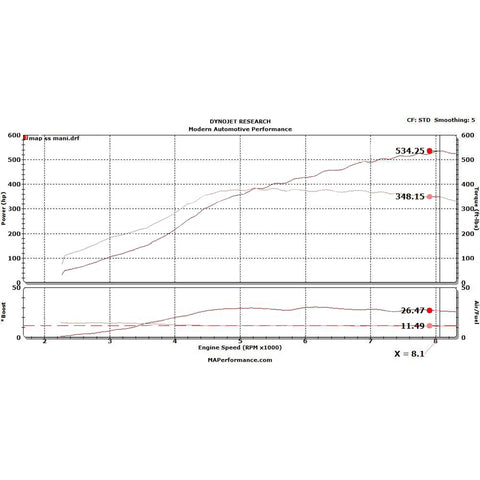

MAP Investment Cast SS Manifold
- Dyno Room Temperature : 78 degrees
- Intake Air Temperature : 82.4 degrees at start, 84.2 degrees at end.
- Peak Torque Timing : 8 Degrees
- Peak HP Timing : 14 Degrees
- Full Boost MAP Manifold (Without any changes to try and improve spool time) - 5031.25
Applications
- 2008-2015 Mitsubishi Lancer Evolution X
What's In The Box?
- Cast Exhaust Manifold
- Installation Hardware
Installation Instructions
1.) All MAPerformance in-house fabricated parts include a Limited Lifetime Warranty for the Original Purchaser. This warranty only applies to the original purchaser and is non-transferrable. If the product fails it would need to be determined by MAPerformance that it is due to manufacturing defects in materials or workmanship. The purchaser will be responsible for sending the product back, after contacting MAPerformance and reporting the failure. Further instructions will be provided by MAPerformance.
2.) This does not cover normal wear and tear. Improper use, modification, or abuse voids this warranty. MAPerformance will not be held responsible for additional costs due to the failure of a product (cost of sale, towing, labor, etc.). Warranty claims must be submitted to MAPerformance for review. Products that are factory coated must adhere to the break in process. Only products coated by MAPerformance will be covered. Products will not be covered if wrapped.
3.) MAPerformance “Limited Lifetime” Warranty does not apply to all products. Kits, packages, bundles, or any non fabricated parts and products by MAPerformance are not warrantied. Engines and engine assemblies are not warrantied. Cast components are warrantied for 3 years from purchase date.
Great replacement if your oem manifold is cracked!
Just beware you’ll need new hardware or at the very least the forth piece of hardware as MAP only provides 3 bolts when there are 4 mounting points. Just out of principle I would go with a different manifold and order straight from that manufacturer as map is horrible about posting parts they don’t have in stock and they are just 3rd party sellers.

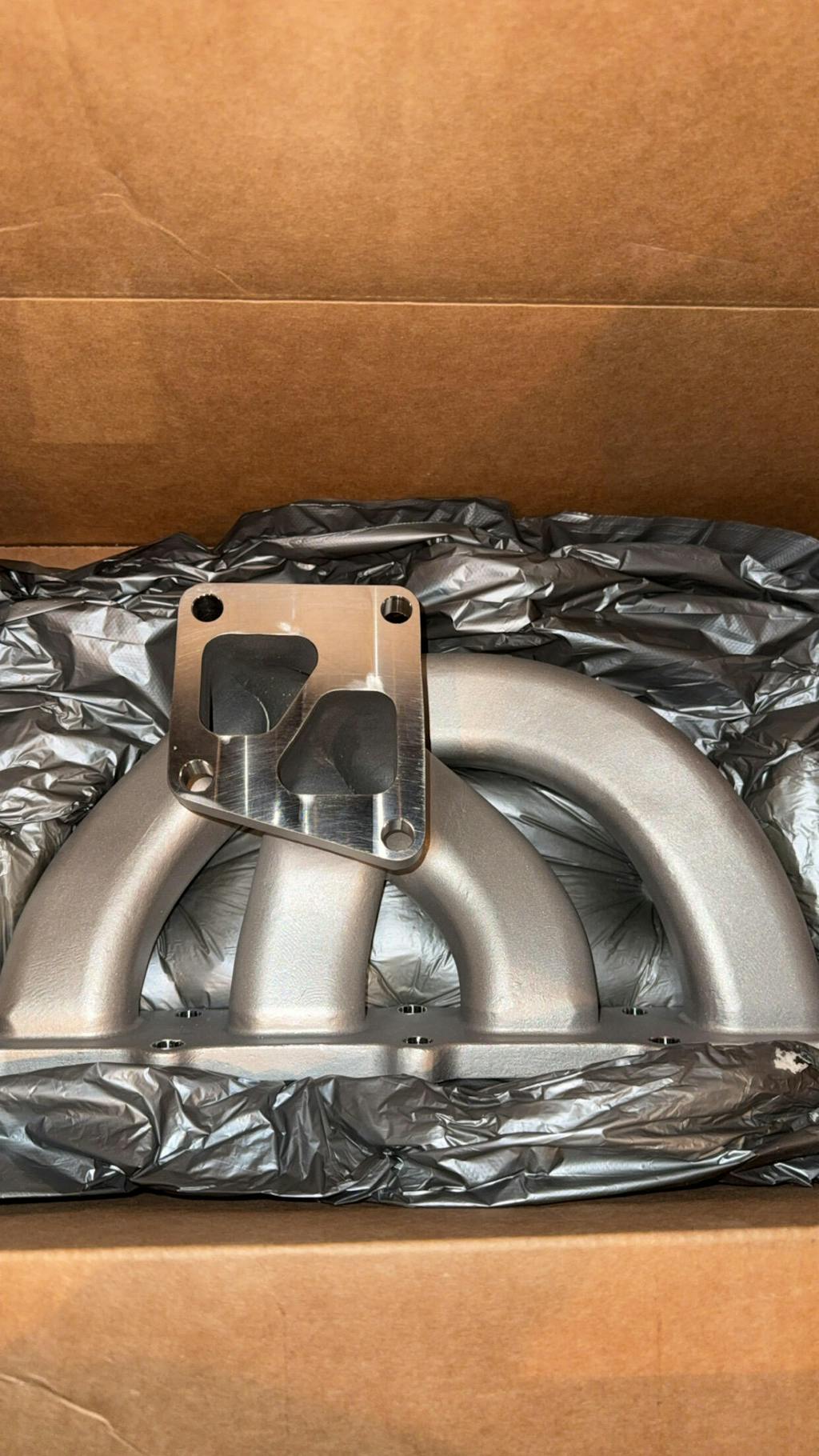

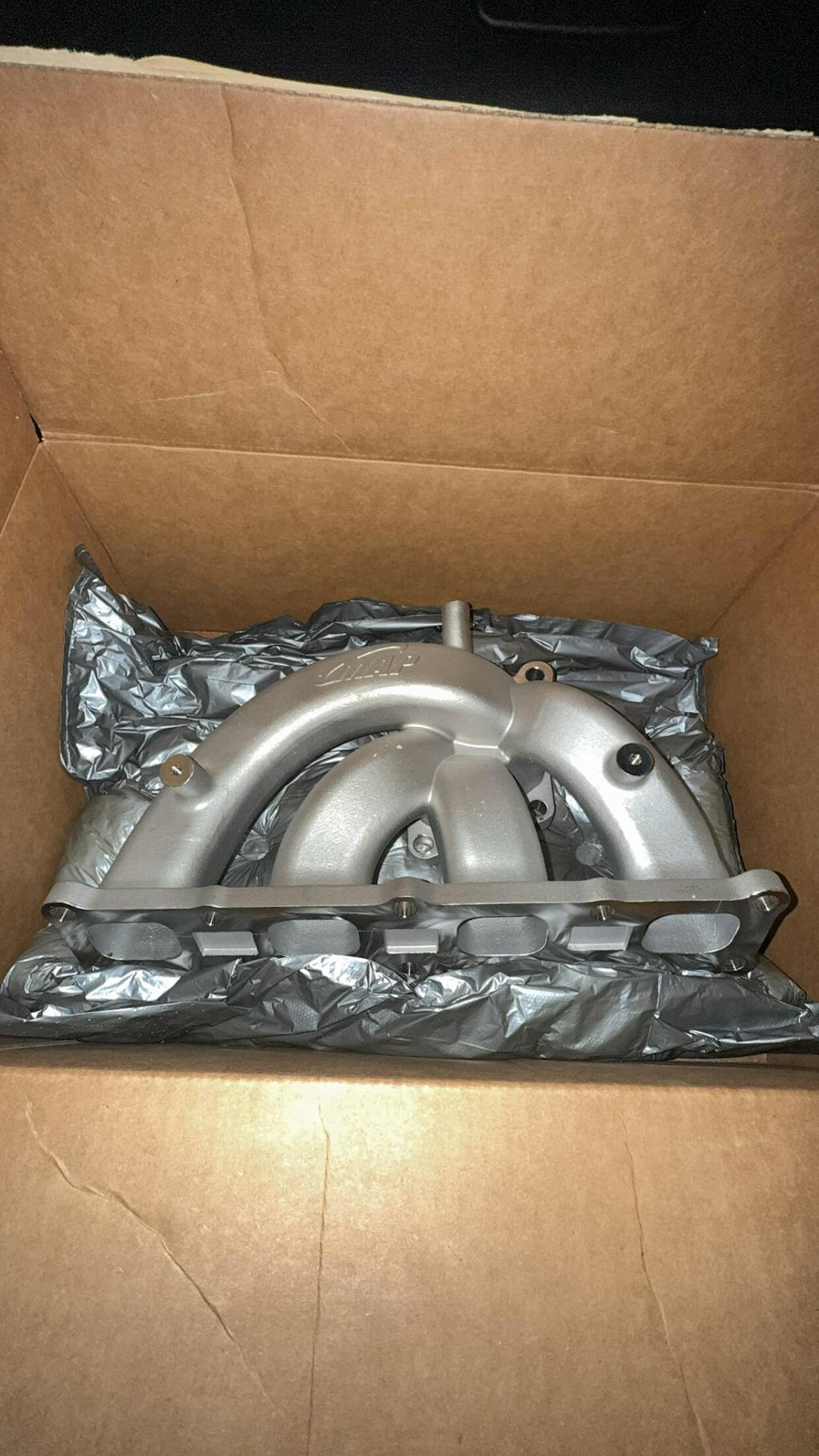

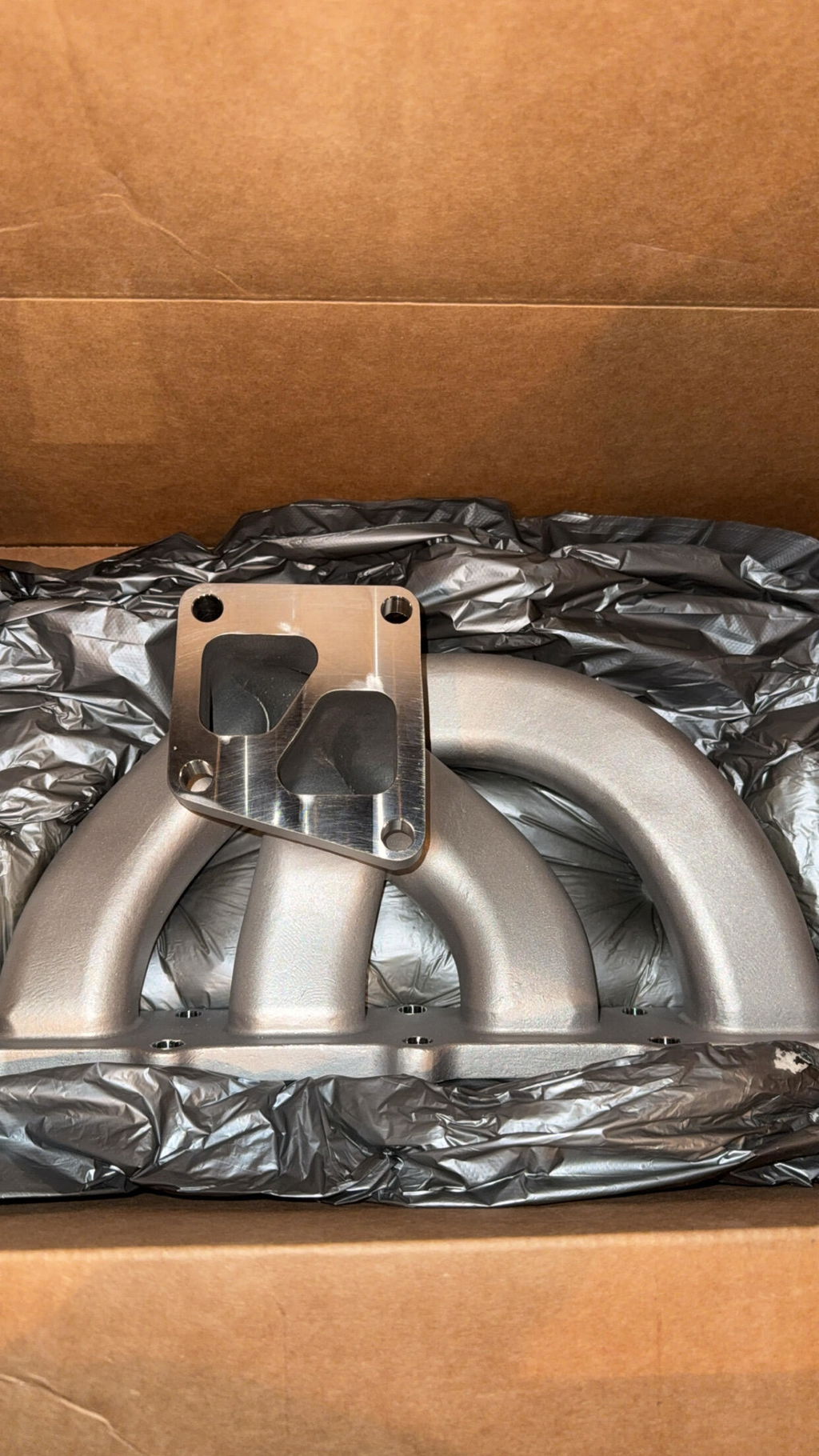

Perfectly packaged and delivered pretty quickly cant wait to install
Everyone knows that the stock manifold is only good for a few years, everyone that I know has had it fail/crack/rust and it is one of those parts that when it is done, your losing out on turbo and overall engine efficiency and performance. In steps MAP with the track records dating back decades in aftermarket fabrications and manufacturing. They put together arguably the best exhaust manifold in EVO 10 history. It looks good, it performs amazing on any stock frame turbo and is fundamentally the missing piece to the 4B11 that should have been contracted to Mitsu to produce from the get-go. I love mine, the tubular is amazing as well, you cant go wrong with the MAP manifolds!

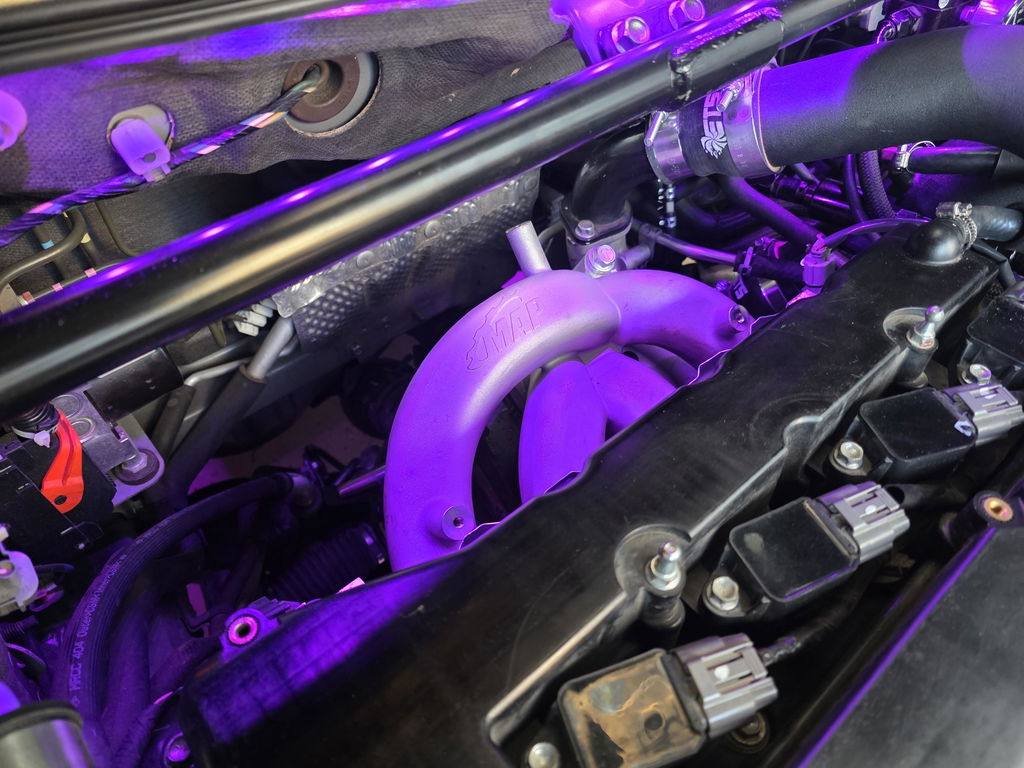

Had to replace my manifold on my evo x after 45k miles due to a crack. This map manifold is a great replacement but you have to pull the two studs on your turbo to manifold mount before installing this manifold.
