iCarsoft BMM V2.0 for BMW/Mini

iCarsoft BMM V2.0 is a Professional and powerful vehicle fault diagnosis tool developed by iCarsoft Technology Inc. With a 4.0" TFT LCD and unique diagnostic software, it features full ECU diagnosis of single vehicle brand and test modes mainly include: CANBUS, ISO9141, KWP2000, and J1850 etc. It enables technicians to accurately diagnose complex problems.

Features

  • iCarsoft BMM V2.0 can do it all-reads and clears trouble codes on most of the systems such as engine, transmission, ABS and airbag etc.
  • Support OBDII/EOBD Ten Modes of Operation
  • Read Live Data
  • Full ECU Diagnosis
  • Applies to the single Brand of most of the Models which equipped with OBDII-16 DLC
  • Easy To Use With Silicone Keys
  • Oil Light/Service Reset: Support service lamp reset.
  • Electronic Parking Brake (EPB) system maintenance deactivates and reactivates the EPB system for replacement and initialization.
  • Battery Management System (BMS), registers new battery to the BMS while battery replacement.
  • Diesel Particulate Filter (DPF) regeneration control system, requests the DPF regen-eration process while DPF blockage and turn off the DPF indicator.
  • Electronic Throttle Control system (ETC) relearns the throttle va value while clear or replaces the throttle valve.
  • SAS: Steering Angle Sensor (SAS) calibration, calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.
  • ABS Bleeding, release the air to restore ABS Brake sensitivity, or relearn while ABS replaced.
  • Injector coding, relearn the injector control parameter while the injector renewed or replaced
  • The Print Data function allows you printing out diagnostic data recorded by the scan
  • Battery test allows you getting the voltage of battery with OBD port by the scan tool when the engine starts.
  • DTC Library to lookup when user is operating this tool.
  • Upgrade Via PC
  • Multi-language: English, German, Dutch, Spanish, French.

Applications

  • BMW & Mini Models w/ OBDII

Specifications

  • Display: 4.0″ TFT LCD, 480x320 Pixels
  • Operation Temperature: 0°C ~ 50°C
  • Storage Temperature: -20°C ~ 70°C
  • Operating Voltage: 9 ~ 18V
  • Operating Current: 150mA@12V (Typical)
  • Power Consumption: 1.8W (Typical)
  • Dimension: 206x104.1x32.6mm

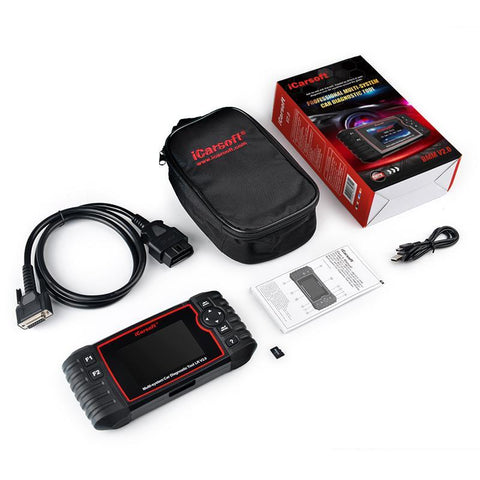

What's in the box?

  • BMM V2.0 Main Unit
  • Hardcopy User’s Manual
  • Main cable
  • USB cable
  • TF Card
  • Nylon carry case
  • TF card reader

Warranty

  • Manufacturer Standard Warranty
