    HKS Metal Head Gasket SC 0.7mm Thick | 2013-2020 Subaru BRZ / Scion FR-S

    PART# HKS 23001-AT003
    We Price Match!

    Contact us to ensure you're getting the right part for your car at the absolute best pricing on earth!

    Email - sales@maperformance.com
    Phone 1(888)627-3736



    $ 349.99   $ 365.00
    You Save 4% ($ 15.01)


      +1-888-627-3736
    Free delivery by , to your door when ordered within hrs and mins
    Fits Your
    MAP Loyalty: Earn $ 7.00 Toward Next Purchase!

    HKS Metal Head Gasket SC 0.7mm Thick

    Opposed Bead Stopper Type Metal Gasket for the FA20 engine of 86/BRZ provides higher bore sealing durability than a stock gasket. Stopper structure of the bore seal is separated type so it prevents leakage even under high gas-pressure at high engine output.

    A high pressure seal is formed around the combustion chamber through the use of stoppers which create a step within the gasket for optimum sealing. By making the stopper part of the plate also allows the fold to be smaller while maintaining structural integrity. One side of the plate is completely flat meaning that it can be layered with the stopper to allow stoppers to be used in even the tightest of locations around the combustion chamber forming a high quality seal. Compared with other gaskets of the same thickness, there are more layers in these gaskets giving flexibility which allows the gasket to maintain a good seal even when the engine tries to vibrate and move.per type provide more balance in surface pressure.

    Features

    • Compression Ratio 12.4
    • Opposed Bead Stopper Type
    • Provides more balance in surface pressure
    • Special coating was applied on the head side and cylinder side to improve sealing performance when tightening the bolts

    Applications

    • 2013-2016 Scion FR-S
    • 2013-2020 Subaru BRZ

    What's In The Box?

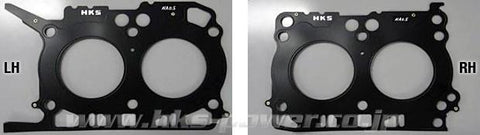

    • (2) Head Gaskets (LH and RH sides)

    Warranty

    • Manufacturer Standard Warranty

      HKS Metal Head Gasket SC 0.7mm Thick

      Opposed Bead Stopper Type Metal Gasket for the FA20 engine of 86/BRZ provides higher bore sealing durability than a stock gasket. Stopper structure of the bore seal is separated type so it prevents leakage even under high gas-pressure at high engine output.

      A high pressure seal is formed around the combustion chamber through the use of stoppers which create a step within the gasket for optimum sealing. By making the stopper part of the plate also allows the fold to be smaller while maintaining structural integrity. One side of the plate is completely flat meaning that it can be layered with the stopper to allow stoppers to be used in even the tightest of locations around the combustion chamber forming a high quality seal. Compared with other gaskets of the same thickness, there are more layers in these gaskets giving flexibility which allows the gasket to maintain a good seal even when the engine tries to vibrate and move.per type provide more balance in surface pressure.

      Features

      • Compression Ratio 12.4
      • Opposed Bead Stopper Type
      • Provides more balance in surface pressure
      • Special coating was applied on the head side and cylinder side to improve sealing performance when tightening the bolts

      Applications

      • 2013-2016 Scion FR-S
      • 2013-2020 Subaru BRZ

      What's In The Box?

      • (2) Head Gaskets (LH and RH sides)

      Warranty

      • Manufacturer Standard Warranty
