Haltech Nexus Plug-in ECU | 1989-2002 Nissan Skyline R32/R33/R34 GT-R (HT-231801)

Nexus Plug-in ECU for Nissan Skyline R32/R33/R34 GT-R by Haltech

The Haltech Nexus Skyline Plug-in, as the name suggests, plugs directly into the Nissan harness, and nestles neatly into factory location .

It seamlessly supports vital OEM functions like the R34 GT-R MFD Injector Duty Cycle display, GT-R ATTESA TPS output. Unlock enhanced capabilities with "OEM Plus" functionality via the auxiliary connector, enabling features such as O2 Control, Flex Fuel, Oil Pressure monitoring, Fuel Pressure sensing, and Drive by Wire Throttle.

And for serious drivers, the Nexus ECU unleashes potent Race Functionality, including CO2 Boost Control, Race Timer, Advanced Torque Management, Launch Control, Nitrous Control, and 128MB of onboard data logging.

Features

• 4 X Digital Pulsed Outputs
• 4 X Synchronised Pulsed Inputs
• 4 X Analogue Voltage Inputs
• 2 X Half Bridge Outputs
• 1 X Onboard Wideband
• 2 X Sensor Ground
• 2 x 12V Output
• 2 x 5V Output
• Drive By Wire Throttle Support
• Single Channel Onboard Wideband Control - Supports LSU4.9/NTK
• Wi-Fi
• 4 channel onboard oscilloscope
• Data logging 128MB
• Flex Fuel
• Closed Loop O2 Control
• Dual Knock Control
• Variable Cam Control
• Long term learning

Supported OEM Functionality

• Output for ATTESA (GTR)
• Variable speed fuel pump
• Injector duty cycle output (R34 GTR)
• Boost Control
• A/C Output
• Idle Control
• Thermofan
• VCT Switched (N-VCT)
• Check Engine Light
• Fuel Pump Control Module
• Narrowband Sensors
• Vehicle Speed
• Air temperature Sensor (GT-R Only)

Applications

• 1989-2002 Nissan Skyline R32/R33/R34 GT-R

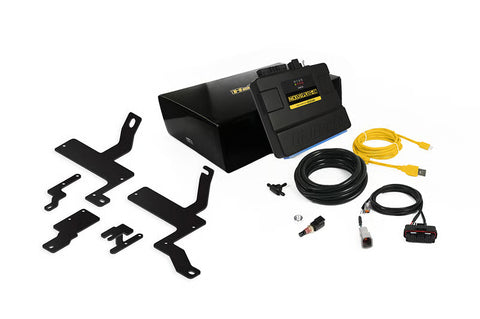

What's In The Box?

• 1 - Nexus Plug-in Nissan 76 pin 6 cylinder ECU

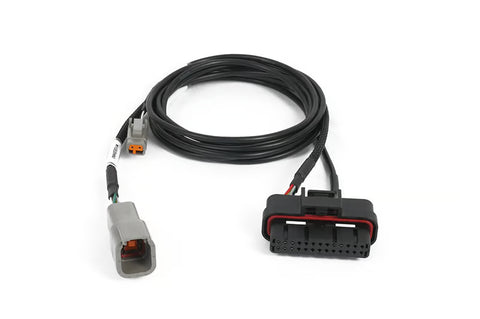

• 1 - Air temperature + Wideband expansion harness 2.5m (8')
• 1 - Air temperature sensor (1/8' NPT)
• 1 - Aluminium bung for air temperature sensor
• Mounting brackets and hardware to suit R32/R33/R34GT-R OEM mounting locations. (Total of 5; 2 x bracket per application)
• 1 - 3mm Vacuum hose 2.5m (8')
• 1 - 3mm Aluminium Vacuum T piece
• 1 - Haltech USB-C cable
• 1 - Quick start guide

Warranty

• Limited Manufacturers Warranty
