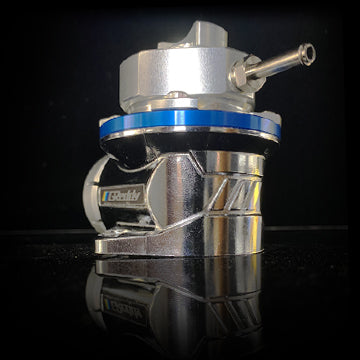

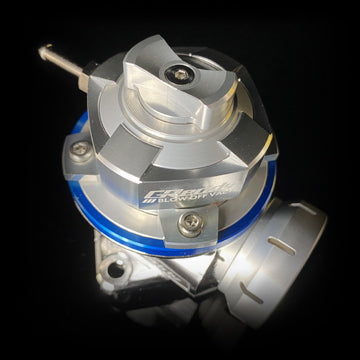

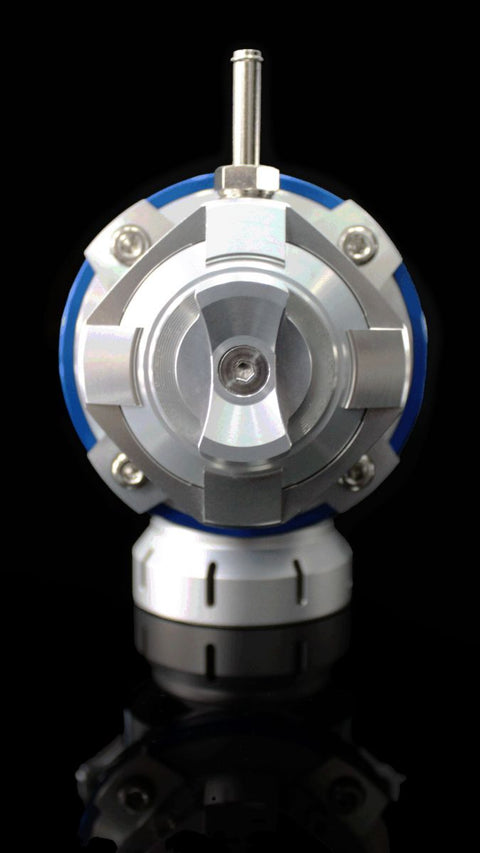

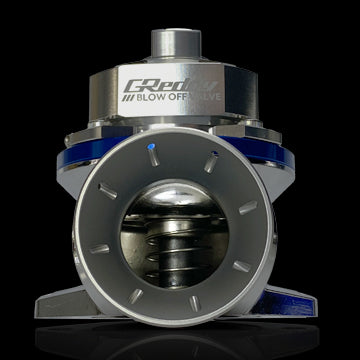

GReddy Type FV2 40mm Blow-Off Valve (11501666)

Type FV Blow-Off Valve by GReddy

GReddy BLOW OFF VALVE FV-II has adapted Floating Valve structure which does not open up when the Surge Tank has negative pressure. For no strong initial load, both quick response under low boost and prevention of the relief under high pressure are together. This is a new generation blow off valve.

It inherits the floating valve structure that was popular in the previous FV model, while improving with a more sophisticated design, easier adjustment, and even more reliability.

A hand turning detent knob that adjust the preload setting of the spring does not require any tools. It is also now possible to change the direction of the hose union on the top cover, so it can also be adjusted 360°, also without tools, to best suit your installation.

The mounting flange and inlet retain the same dimensions as previous GReddy blow-off valves (TYPE-RS, RZ, and FV) so the TYPE-FV2 can easily replaced any of the older models. Made in Japan.

Features

• Gunmetal/Blue, adjustable detent rotary knob, floating valve, revised funnel outlet
• New 360 degree adjustable top hat - to point the. vacuum fitting. in any direction.
• Floating Valve design with opposing springs, allows for improved control, response, and idle.
• The new top hat design allows for rotating the vacuum nipple without disassembly of the unit.
• 80-480hp range
• Compatible with standard 2-bolt GReddy BOV flanges and Type-RZ outlet adapters

Benefits

• Prevents idling problems that can tend to occur with other blow-off valves.
• Quick response even at low boost situations.

Applications

• Universal

What's In The Box?

• 1 - Blow-Off Valve
• Mounting Hardware

References

• Installation Instructions

Warranty

• GReddy's Limited Manufacturer's Warranty
