Girodisc Front 2 Piece Floating Rotors | 2004-2017 Subaru WRX STI (A1-007)
Girodisc*SEE DETAILS
2004-2017 Subaru WRX STI Front 2pc Floating Rotors by Girodisc
The Girodisc system is a direct replacement for the OE disc. No modifications are necessary. The disc will bolt directly to the car and work with OE calipers perfectly. By upgrading your brakes with lightweight high performance replacements as opposed to a big brake kit, your factory bias is maintained as well as your ABS efficiency. The Girodisc front rotors are approx 16.5lbs vs. 20.5lbs for the stock units. This reduction in rotational and unsprung weight allows for quicker acceleration and suspension response.
The central hat section of our rotor is made from strictly U.S. sourced 6061-T6 aircraft specification aluminum. The disc is made from our own proprietary cast iron, poured in the USA and machined from start to finish in house at Girodisc. The rotor utilizes a curved vane design, developed in racing to act as a centrifugal pump to force cooling air through the disc.
The rotor and hat have a floating mount system, which utilizes 10 high strength alloy steel drive pins, manufactured by Girodisc in the USA to our own specifications and cadmium plated for a long lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. The pins are secured by class 12.9 cap screws with hardened washers. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self center between the pads.
Features
- Hat is made from 6061-T6 aircraft specification aluminum
Benefits
- Easy to swap out worn rotors
- Weight savings of 4 pounds over stock rotors
Applications
- 2004-2017 Subaru WRX STI
What's In The Box?

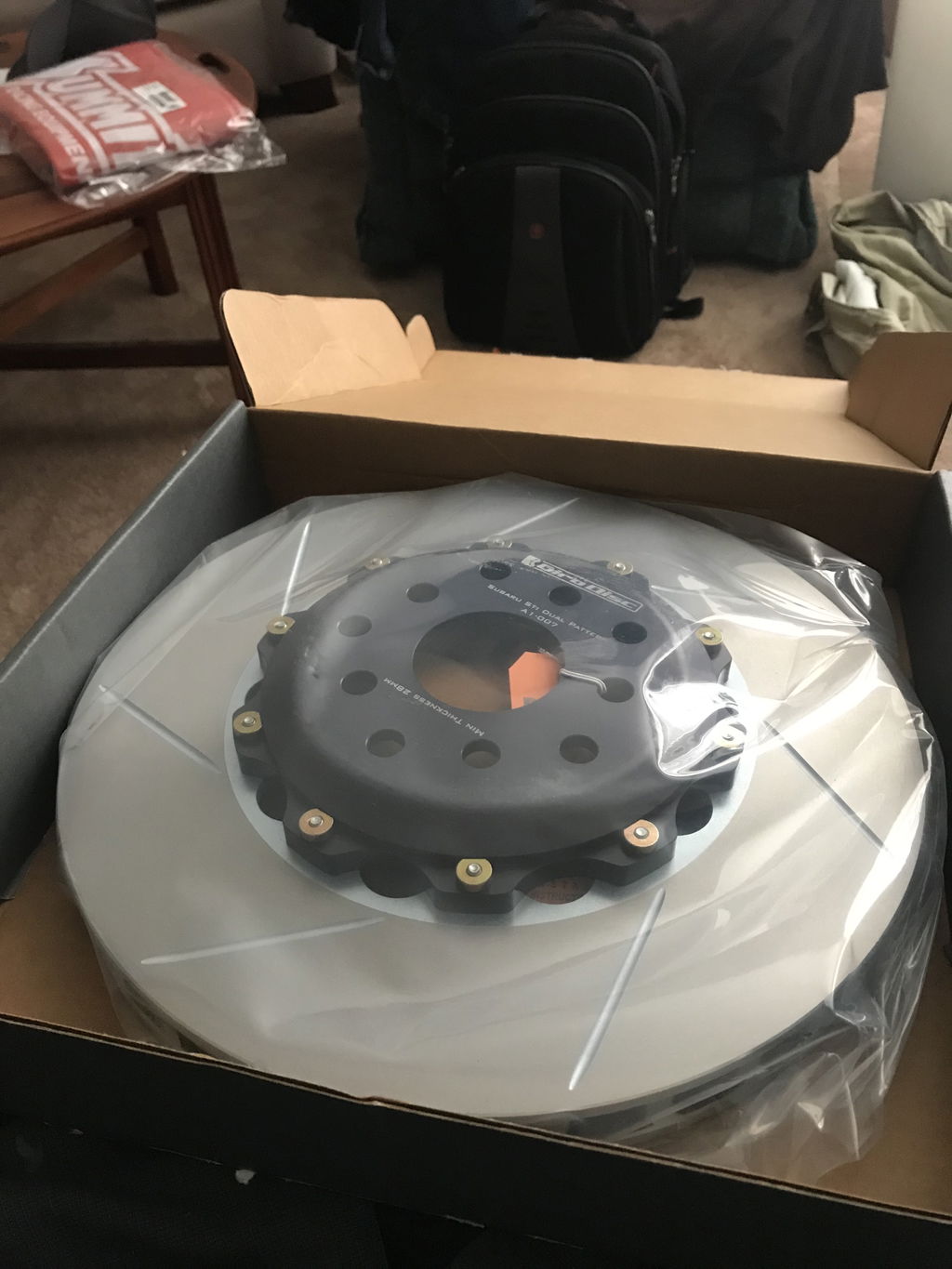

- 2 - Front 2-Piece Brake Rotors
Warranty
- Manufacturer Standard Warranty
Customer Reviews
These rotors shaved about 5 pounds off the front very well made will buy again. Fit was perfect

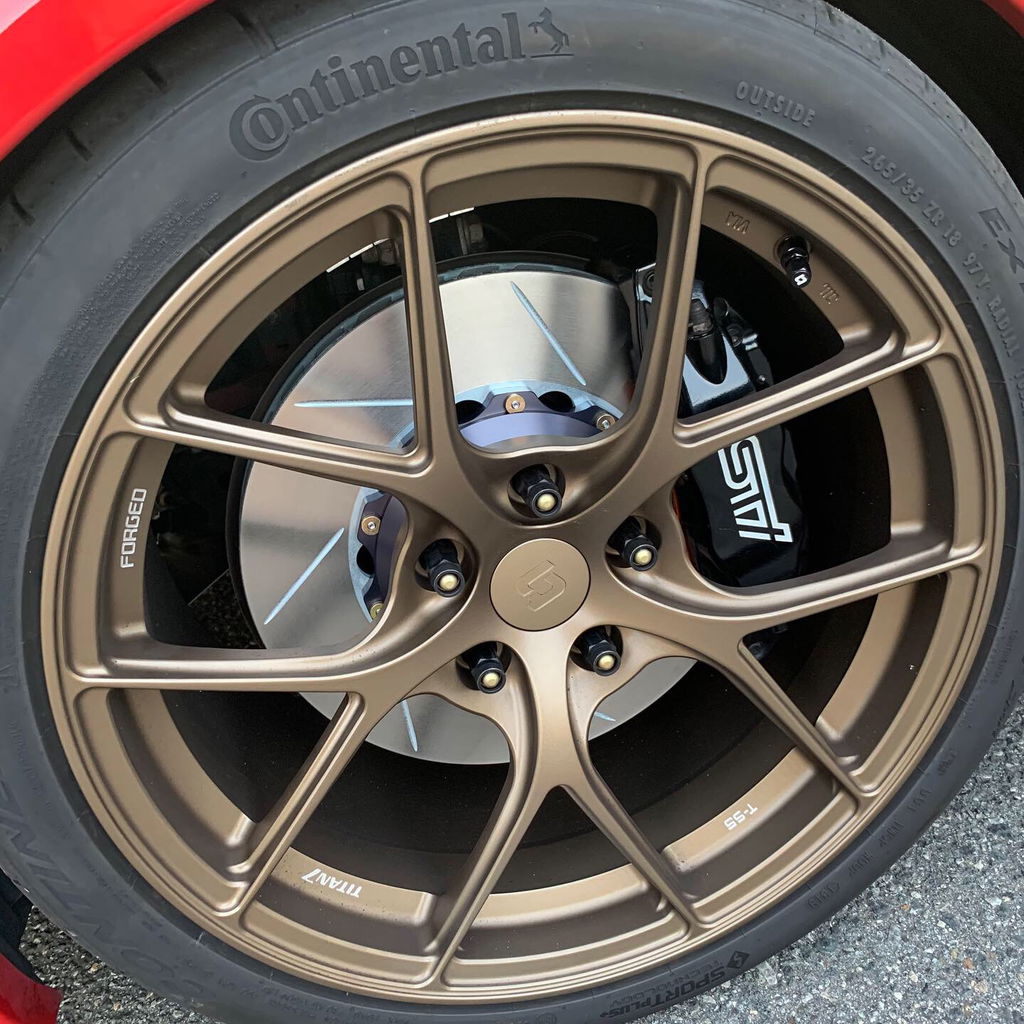

My main reason for buying these Girodisc front rotors is for weight savings. I recently installed them on my 2011 STI. It was a straight forward process of replacing rotors. There were no problems at all.
As the product's description says, I could feel better acceleration due to less rotating mass. As for unsprung weight, the car felt more planted in a fast sweeping curve that I pass quite often.
I did not purchase rear rotors because it doesn't have the parking brake access hole for adjustment and uninstalling the rotors.
