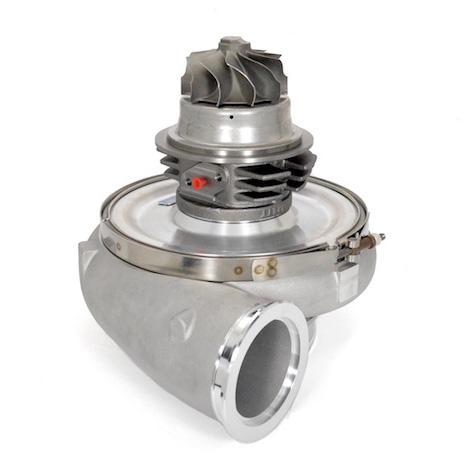

Garrett Gen 2 GTX4709R Super Core - 825-1625 HP - No Turbine Housing
The GTX4709R is the newest addition to the Garrett GTX Gen II lineup. Forged fully-machined Gen II compressor wheel aerodynamics offers racing enthusiasts a 9%-15% increase in flow and are compatible with 2.0L - 10.0L platforms.
Features
- Gen 2 Compressor Wheel Aerodynamics
- 9%-15% Increased Flow
- 76mm And 80mm Turbocharger Compressor Options
- Larger 0.88 A/R Compressor Housing Volute
- 109mm Comp Exducer ( + 1mm) with 39% Lower Inertia
- Compatible With GT47/GTX47 Turbine Housings
Specifications
- Compressor Wheel Inducer: 76mm or 80mm
- Compressor Wheel Exducer: 109mm
- Compressor Wheel Trim: 49 or 54
- Compressor Housing A/R: 0.88
- Turbine Wheel Inducer: 93mm
- Turbine Wheel Exducer: 84mm
- Turbine Wheel Trim: 82
Please Note: This is a Gen 2 GTX4709R Super Core. It is a turbocharger without the turbine housing.
Applications
- Universal
What's In The Box?
- 1 - GTX4709R Gen 2 Super Core
Warranty
- Manufacturer Standard Warranty
