ETS Intercooler Upgrade Kit w/ Wrinkle Black Piping | 2008-2015 Mitsubishi Evo X (100-10-IC)

Evo X Intercooler Upgrade Kit by Extreme Turbo Systems

The obvious tie-in between the UICP and LICP is the ETS EVO X Intercooler. Making certain to hold this unit to the standard of our EVO VIII/IX intercoolers, this unit is a tour de force in efficiency, distribution and flow. The factory inlet and out locations allow for the inlet and outlet to be at diagonally opposing corners of the core.

This provides the best possible airflow distribution through the core's height making sure that all charge rows are used effectively. The AutoCAD drawn endtanks are as smooth as on our previous EVO intercooler with aluminum metal forming that looks more like artwork than endtank.

Between the tanks is any one of our sizing options with 3", 3.5" or 4" intercoolers as BOLT-ON designs behind the factory crash beam and above the factory undertray. The intercooler is available separately or in a complete kit with UICP and LICP included EXTRA INFORMATION WHERE NECESSARY.

Features

• Pressure checked at 35psi
• Bolt on design to retain crash beam
• Fills entire grill with core
• Full mandrel bent 2.5" piping
• Stainless steel t-bolt clamps
• 4-ply couplers
• Includes all mounting hardware

Applications

• 2008 - 2015 Mitsubishi Evolution X

Specifications

• 20x12x3.0 Bar & Plate Core - 700hp
• 20x12x3.5 Bar & Plate Core - 750hp
• 20x12x4.0 Bar & Plate Core - 820hp

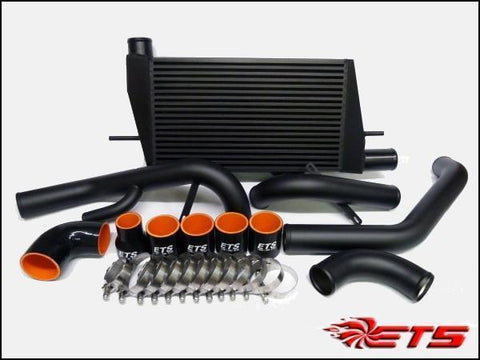

What's in the Box?

• Bar & Plate Core
• Upper and Lower Intercooler Piping Set
• Silicone Couplers & Clamps
• All Necessary Hardware

Warranty

• ETS Limited Warranty
