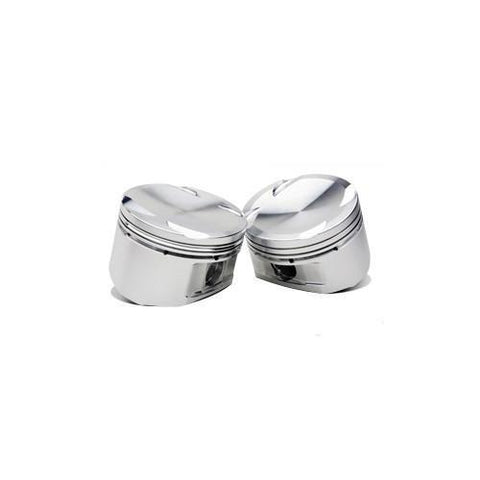

1989-1998 Nissan Silva/240SX S13/S14 Pistons w/Pins, Rings and Locks by CP

CP Pistons Nissan piston and ring kits are as good as they come. CP Pistons was founded to service the needs of those with the desire to build engines of the highest quality and technology. With the use of proprietary tooling, unique fixtures, dedicated cutters, and their state-of-the-art equipment they produce superior pistons that will not compromise your expectations. Their climate-controlled inspection department is the most advanced in the industry and is outfitted with computerized electronic equipment specifically designed for their needs. Each piston is engineered using sophisticated computer modeling for optimum designs, while their 5-axis machining capability enables them to create any piston for any application.


  • Piston Rings Included: Yes
  • Bore (in.): 3.406 in.
  • Bore (mm): 86.500mm
  • Stroke: 86.00mm
  • Rod Length: 136.250mm
  • Piston Style: Dish, with no valve reliefs
  • Piston Material: Forged aluminum
  • Compression Height (in.): 1.260 in.
  • Piston Head Volume (cc): +15.50cc
  • Wrist Pin Style: Press-fit or floating
  • Wrist Pin Retainers Included: Yes
  • Wrist Pin Included: Yes
  • Pin Diameter (in.): 0.866 in.
  • File Fit: No
  • Gapless: No
  • Top Ring Thickness: 1.2mm
  • Top Ring Material: Steel
  • Second Ring Thickness: 1.5mm
  • Second Ring Material: Cast iron
  • Oil Ring Thickness: 3.0mm


  • Improved Engine Reliability and Horsepower Capacity

Please Note: Made for +1mm valve sizes.


  • 1989-1998 Nissan Silva/240SX S13/S14

What's In The Box?

  • 4 - Pistons w/Pins, Rings and Locks


  • CP's Standard Limited Warranty
