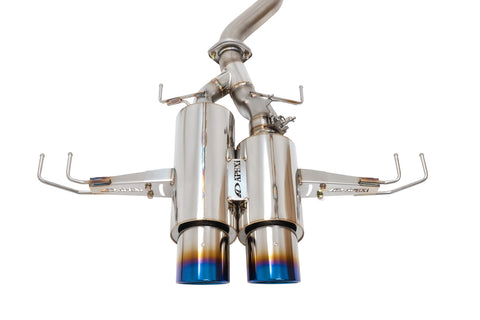

A'PEXi N1 Evo Extreme Catback | 2023+ Honda Civic Type-R FL5 (164-KH03)

2023+ Honda Civic Type-R FL5 A'PEXi N1 Evo Extreme Catback

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance.

Features

• High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
• Matched and manufactured for select chassis
• Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results.

Benefits

• Light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction
• Equipped with an internal hybrid silencer
• Lighter weight: 42.70 lb vs Stock: 47.51 lbs

Applications

• 2023+ Honda Civic Type-R [FL5]

What's In The Box?

• 1 - A'PEXi - N1 Evo Extreme (Catback)

References

• Before completing the installation of the exhaust system with the factory OEM Valve Motor System, follow these steps:
• 1: Uninstall the OE Valve Motor: Remove the OE Valve motor from the factory exhaust and disconnect it from the harness connected to the vehicle.
• 2: Reset the Valve Motor: Prior to mounting the valve motor on the A'PEXi N1-X Exhaust System, ensure to plug the Valve Motor separately to initiate a factory reset position. This process typically takes around 5-10 seconds to automatically rewind to the reset position. Notably, this reset can be performed without the car being turned on.
• 3: Reinstall the Valve Motor: Once the Valve Motor has completed its self-reset, remount it onto the bracket and proceed to install both the Valve Motor and the bracket onto the N1-X exhaust system.
• Following these steps ensures proper installation and functionality of the exhaust system with the Valve Motor System.

Warranty

• Manufacturers Limited Warranty
