ACT Twin Disc MaXX XT Street Clutch Kit | 2004-2007 Cadillac CTS-V (T3S-G10)

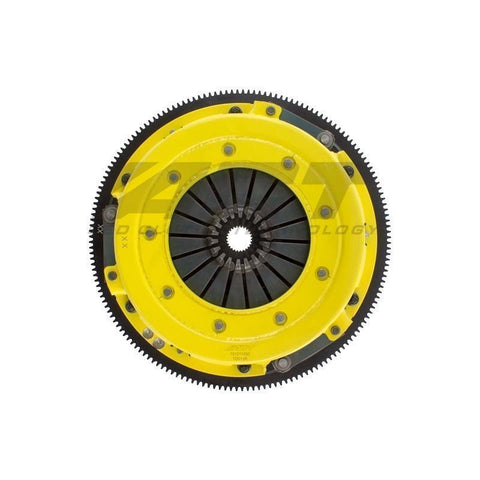

Twin Disc MaXX XT Street Clutch Kit by ACT

T3S-G10 street, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms.

The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength.

All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may included a pilot bearing and release bearing.

Features

• Feel: Heavy to very heavy pedal effort, smooth engagement, mild to moderate gear rattle
• Life: Disc surfaces doubled for better wear, heat capacity and longer life, further extended by ACT's exclusive diaphragm design
• Quality: Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade
• Recommended Use: Recommended for race use only
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

• 2004 - 2007 Cadillac CTS-V

Specifications

• Product Weight (lbs): 48.8
• Disc Type: Solid Street Disc
• SFI Rating: 1.2
• Disc Material: Organic
• Pressure Plate Type: MaXX Xtreme (MaXX XT)
• Torque Capacity Over OE: 132%
• Torque Capacity (ft/lbs): 1150
• Disc Diameter (mm): 267
• Disc Diameter (in): 10.5
• Alignment Tool Included: ATGM026
• Flywheel Included: Streetlite

What's In The Box?

• 1 - MaXX XT Pressure Plate
• 2 - Organic Solid Street Discs
• 1 - Floater Plate
• 1 - Streetlite Flywheel
• 1 - Alignment Tool
• 1 - Pilot Bearing (if applicable)
• 1 - Release Bearing (if applicable)

References

• Installation Instructions

Warranty

• ACT 12-Month Limited Warranty
