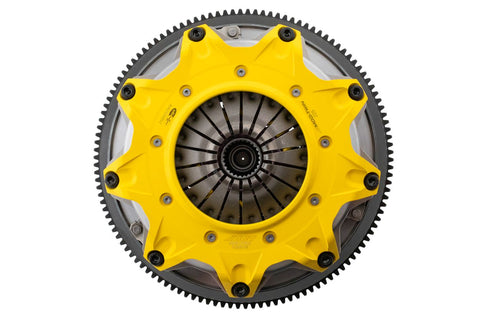

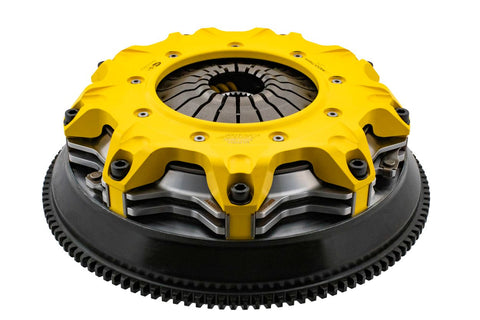

ACT Mod-Twin 225 HD Sprung Street Clutch Kit | 2009-2018 BMW N54 & N55 3.0T w/ 6-Bolt Crank (T1SS-B01)

Heavy Duty Mod-Twin 225 Clutch Kit by ACT

T1SS-B01 Mod-Twin 225 HD Sprung Street Kit is designed for high powered AWD street cars. It unites uncompromised pedal feel, durability, engagement quality with very high torque capacity by combining twice the organic friction surfaces with an ultra-durable spring center Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to the Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration.

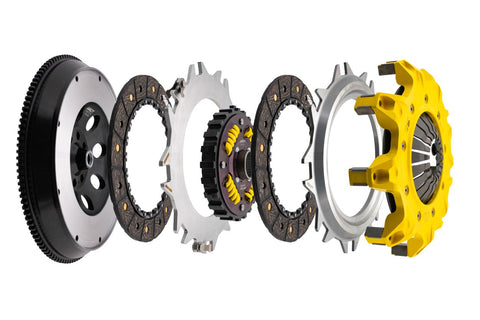

This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

Features

• Torque Capacity (ft/lbs.): 690
• Torque Capacity Over OE: 125%
• Disc Material: Organic
• Clutch Disc Diameter (Inches): 8.8
• Clutch Disc Diameter (Millimeters): 225
• Input Shaft Diameter (inches): 1.375
• Pressure Plate Type: Heavy Duty

Benefits

• Feel: Soft progressive engagement, light pedal effort, smooth shifting with mild to moderate transmission gear noise
• Life: Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions
• Quality: Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances
• Recommended Use: Street or Street/Strip
• The ACT Difference: Applying tactical engineering to the MOD-TWIN, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified

Applications

• 2009 - 2013 BMW 135i N54/N55 with 6-bolt Crank
• 2009 - 2015 BMW 335i N54/N55 with 6-bolt Crank
• 2009 - 2015 BMW 335i xDrive N54/N55 with 6-bolt Crank
• 2011 - 2013 BMW 335is N54/N55 with 6-bolt Crank
• 2014 - 2016 BMW 435i N54/N55 with 6-bolt Crank
• 2014 - 2016 BMW 435i xDrive N54/N55 with 6-bolt Crank
• 2009 - 2016 BMW 535i N54/N55 with 6-bolt Crank
• 2009 - 2010 BMW 535i xDrive N54/N55 with 6-bolt Crank
• 2014 - 2016 BMW M235i N54/N55 with 6-bolt Crank
• 2009 - 2016 BMW Z4 sDrive35i N54/N55 with 6-bolt Crank

What's in the box?

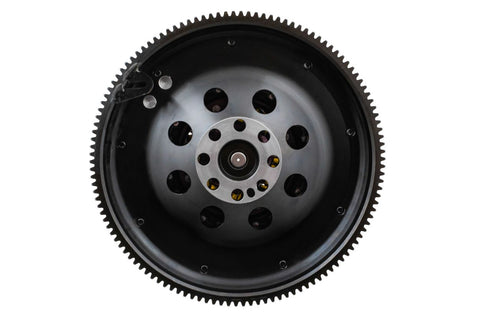

• Dynamically balanced flywheel
• Pressure plate cover
• Diaphragm spring
• Ceramic friction plates
• Sprung Mono-Drive hub assembly
• Floater
• Monoloc Collar
• Release bearing
• Alignment tool and pilot bearing (if needed)

Warranty

• ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase
