ACL Race Series Rod Bearings (6 Bolt DSM) 4B1146H - Modern Automotive Performance

MAP Current Sales

ACL Bearings

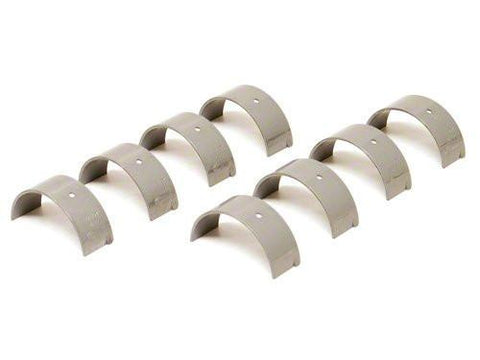

ACL Race Series Rod Bearings | 6 Bolt DSM

PART#
Find a lower price!?

( We'll refund the difference! )

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Email - sales@maperformance.com

Phone 1-888-627-3736


$35.35   $58.91
Instant Savings of % ()

Ships by , when ordered within hrs and mins

Fits Your
MAP Loyalty: Earn $0.71 Toward Next Purchase!

ACL Race Series Performance Engine Bearings


The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

¬Ý

Features

  • Designed to withstand higher RPM conditions.
  • High strength overlay plate with reduced thickness for improved fatigue properties.
  • Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
  • Increased crush for improved bearing retention.
  • Elimination of flash plating on the back of the bearings to improve heat transfer through the bearing sand to maximize the grip between the bearings and its housing.
  • Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
  • 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
  • Tight consistent wall tolerances to help you maintain consistent clearances.
  • Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

What is the maximum power rating of ACL Race Series bearings?

The power rating of the engine can be tweaked in many ways that have correspondingly different effects on the load and stress borne by the bearings. All the methods below affect bearing loading:
  • Increasing red line engine speed
  • Increasing turbo boost / cylinder pressure
  • Changed timing & cam profiles
  • Using low viscosity oils and/or high engine temperatures
  • Changing crankshaft / connecting rod / piston design
  • Modifying cylinder dimensions (boring out, stroking, decking cylinder head)
As a result it is only realistic to reduce the question to 'maximum specific bearing load'. This is the maximum load experienced by the bearing spread over its projected area. For this the engine builder will need to know peak cylinder pressures and balance these forces with the inertial load (acceleration of piston and conrod masses). Generally speaking ACL Race bearing materials and design allow a great deal of flexibility for upgrading engine performance having an excellent balance of strength and forgiveness. The trade-off is: high load = shorter life. ACL Race bearings work well in street machines, that are rarely used at max power but are expected to have a normal engine life, as well as in 'Top Fuel' Dragster engines where bearing loads are several hundred MPa but life is measured in seconds!

¬Ý

ACL Race Series Performance Engine Bearings


The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

¬Ý

Features

  • Designed to withstand higher RPM conditions.
  • High strength overlay plate with reduced thickness for improved fatigue properties.
  • Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
  • Increased crush for improved bearing retention.
  • Elimination of flash plating on the back of the bearings to improve heat transfer through the bearing sand to maximize the grip between the bearings and its housing.
  • Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
  • 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
  • Tight consistent wall tolerances to help you maintain consistent clearances.
  • Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

What is the maximum power rating of ACL Race Series bearings?

The power rating of the engine can be tweaked in many ways that have correspondingly different effects on the load and stress borne by the bearings. All the methods below affect bearing loading:
  • Increasing red line engine speed
  • Increasing turbo boost / cylinder pressure
  • Changed timing & cam profiles
  • Using low viscosity oils and/or high engine temperatures
  • Changing crankshaft / connecting rod / piston design
  • Modifying cylinder dimensions (boring out, stroking, decking cylinder head)
As a result it is only realistic to reduce the question to 'maximum specific bearing load'. This is the maximum load experienced by the bearing spread over its projected area. For this the engine builder will need to know peak cylinder pressures and balance these forces with the inertial load (acceleration of piston and conrod masses). Generally speaking ACL Race bearing materials and design allow a great deal of flexibility for upgrading engine performance having an excellent balance of strength and forgiveness. The trade-off is: high load = shorter life. ACL Race bearings work well in street machines, that are rarely used at max power but are expected to have a normal engine life, as well as in 'Top Fuel' Dragster engines where bearing loads are several hundred MPa but life is measured in seconds!

¬Ý

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
V
Vincent R.
ACL RACE BEARINGS AWESOME FOR 1G 4G63!!!!!

Rods and mains fit like a glove, engine is smooth and quite as it should be!!!! Engine runs excellent, will buy again if I need to do another rebuild! Love my Eagle Talon!

M
Matt
A damn good bearing.

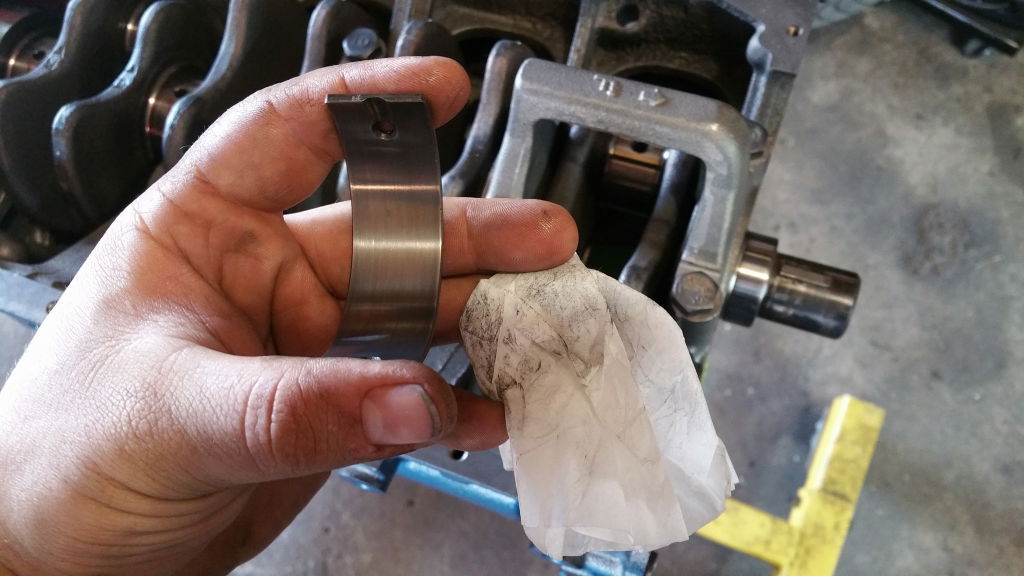

I've been using ACL in all of my builds for the better part of 15 years. Each time, the specification has been perfect. One piece of advice for the DIY - Clean the bearings of contamination. This is true of any bearing and it can be overlooked.

E
Eddy Castellanos
Great Quality

Bought these for my 2.0 build and im completely happy with the quality

W
Wilson Litten
Good value, great performance

The only bearings I'd trust in my Evo's shortblock.
