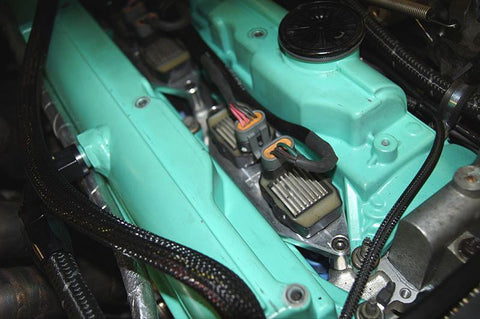

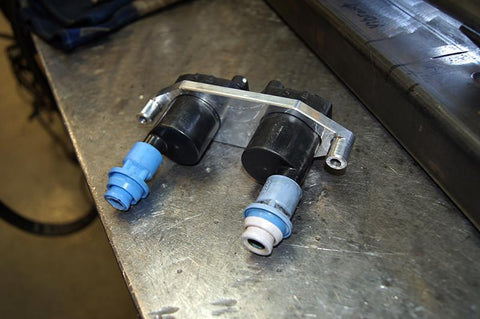

GM Truck Coil Pack Brackets for 2JZ
Our 2JZ coil pack brackets allow you to run GM truck coils for improved ignition performance with the additional benefits of being easier to source and less costly than the OEM 1JZ/2JZ coils.
Features

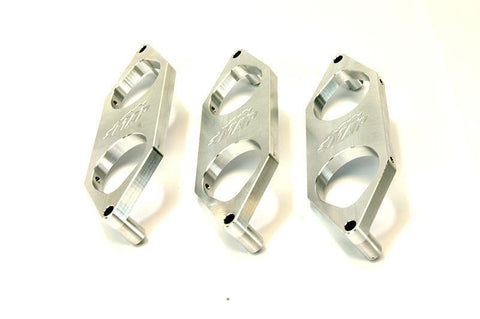

- CNC machined from billet 6061 aluminum
- Compatible with OEM truck coils (GM Part #10457730)
- Sold in sets of 3, enough for one engine
- Made in the USA
- Includes bolts and set screws (not pictured)
Note: Converting to GM coils will require the use of the factory isolator boot.
Applications
- Toyota 1JZ Engines with and without VVTI
- Toyota 2JZ Engines with and without VVTI
- All VVTI and some 1JZ applications will require some clearancing of the cylinder head to clear coil brackets
1.) All MAPerformance in-house fabricated parts include a Limited Lifetime Warranty for the Original Purchaser. This warranty only applies to the original purchaser and is non-transferrable. If the product fails it would need to be determined by MAPerformance that it is due to manufacturing defects in materials or workmanship. The purchaser will be responsible for sending the product back, after contacting MAPerformance and reporting the failure. Further instructions will be provided by MAPerformance.
2.) This does not cover normal wear and tear. Improper use, modification, or abuse voids this warranty. MAPerformance will not be held responsible for additional costs due to the failure of a product (cost of sale, towing, labor, etc.). Warranty claims must be submitted to MAPerformance for review. Products that are factory coated must adhere to the break in process. Only products coated by MAPerformance will be covered. Products will not be covered if wrapped.
3.) MAPerformance “Limited Lifetime” Warranty does not apply to all products. Kits, packages, bundles, or any non fabricated parts and products by MAPerformance are not warrantied. Engines and engine assemblies are not warrantied. Cast components are warrantied for 3 years from purchase date.
Perfect fitnent
My VVTi motor is being swapped into an s13 to do an na/t build so I havent actually used them yet but I can say, they seem like a very solid choice especially for the price. I'm going to have to shave a little off of one valve cover in one spot, other than that it's a simple bolt on part.

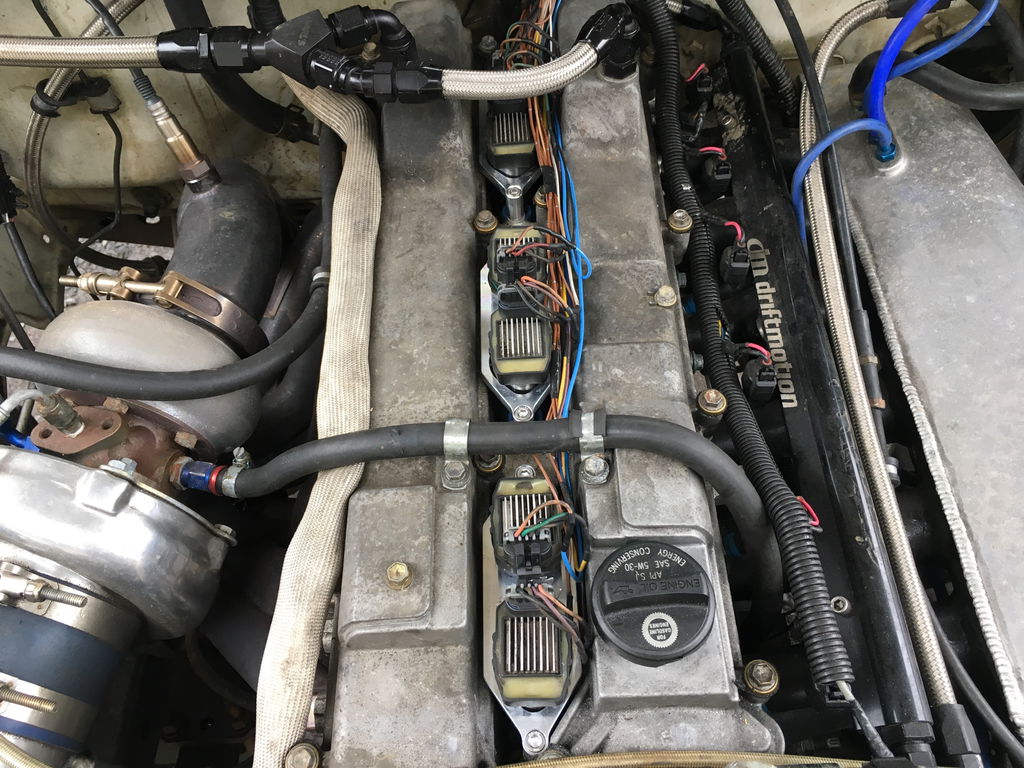

Fits the coils like expected, did hit a little on VVTi #1 cylinder valve cover, touched up with grinder and back in business.

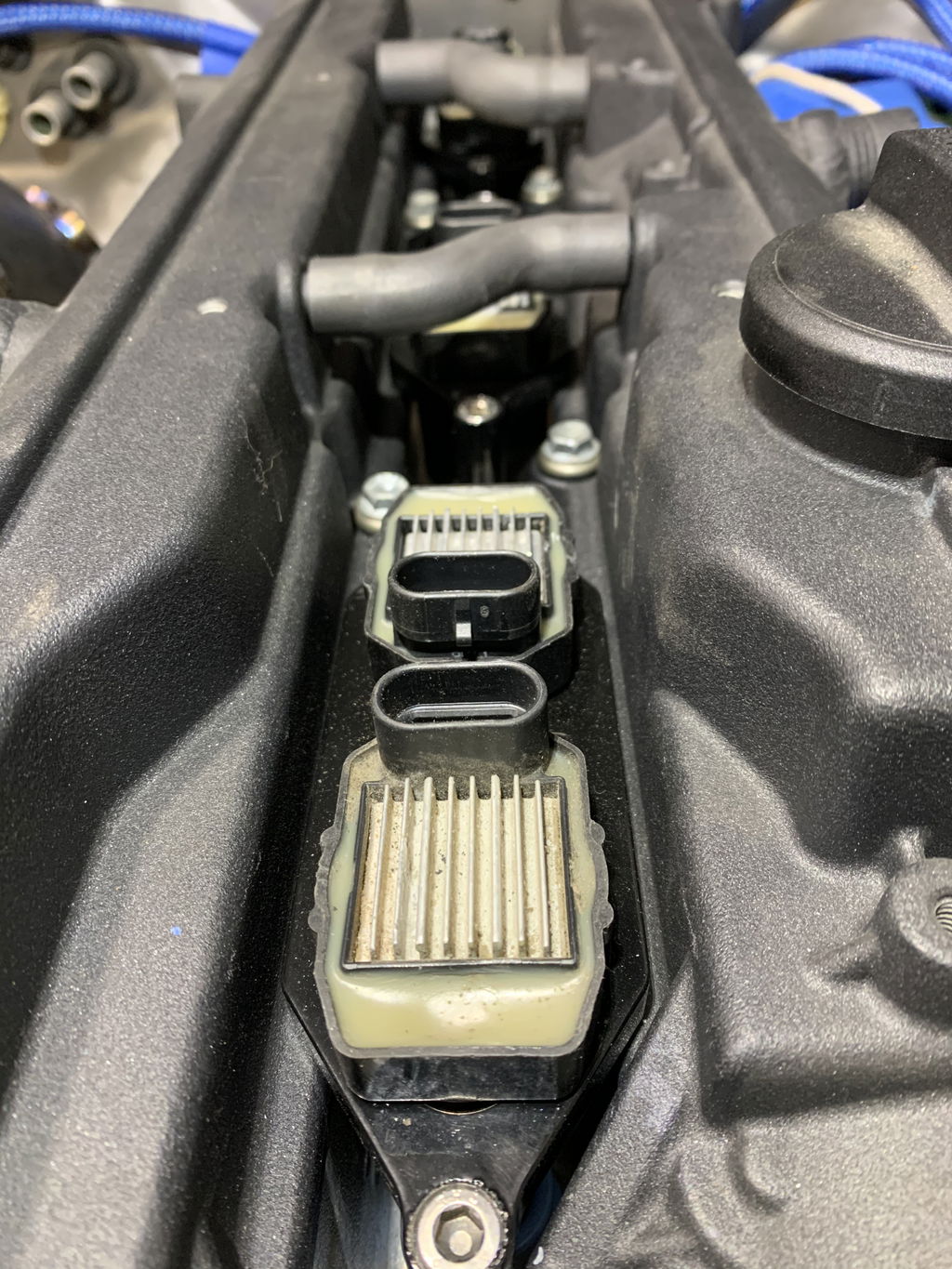

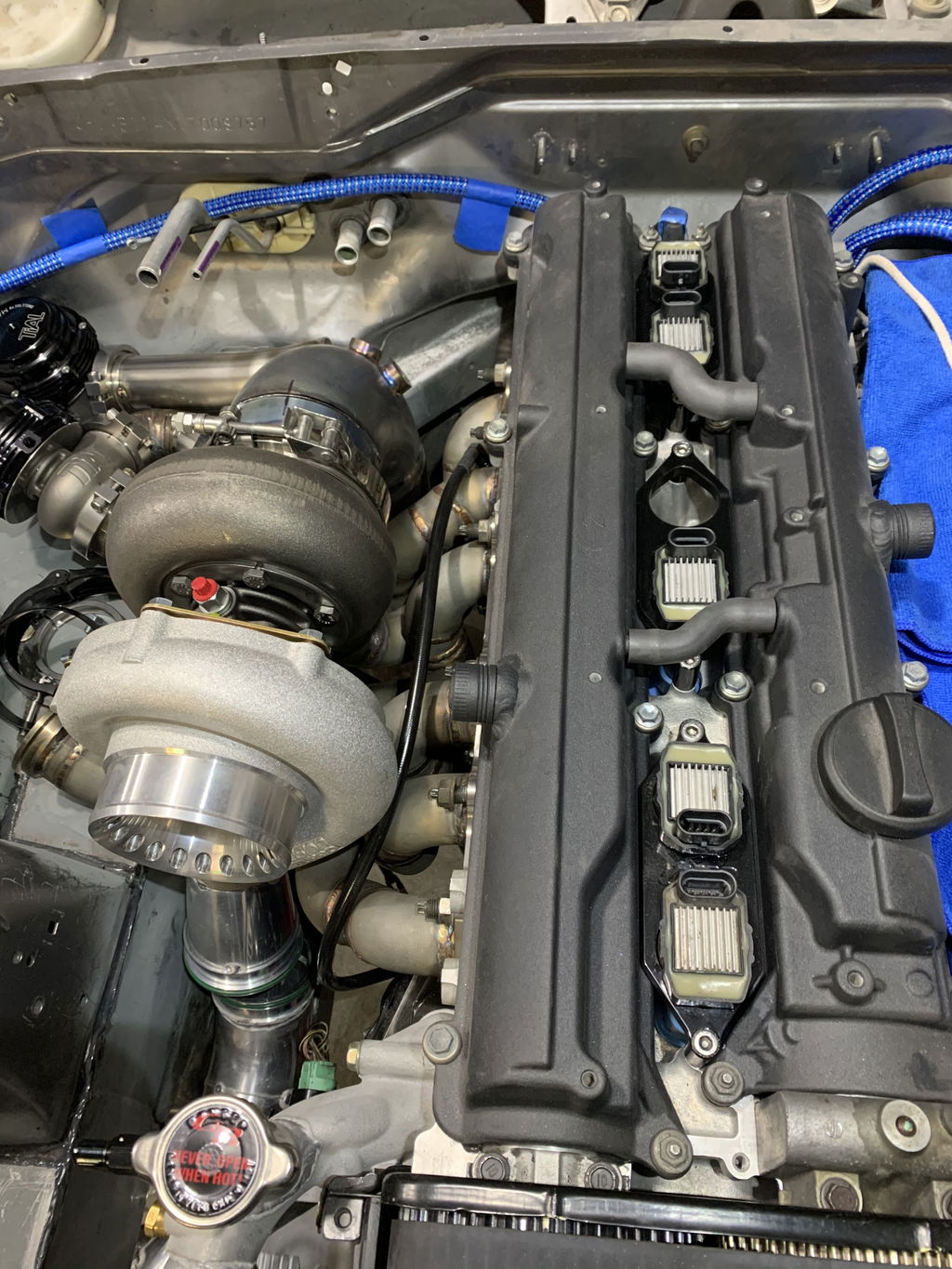

I was worried these brackets would not hold the coils securely since they dont look like they restrict them from moving up and down.There is a small screw on the side that tightens up the coil and holds them very firmly. Excellent looking finish and work great. Would recommend
These are some nice high quality brackets! Very pleased on the machining that went into these brackets. They fit my is300 head great! The only MINOR modification i had to make was using a dremel to shave a 1/16” off the valve cover so the bracket for cylinder 1+2 can fit. I 100% recommend these brackets to anyone looking to use LS coils on their 2jz.
