Wisefab Front Drift Angle Lock Kit for Lexus IS Steering Rack | 2013-2021 Subaru BRZ/Scion FR-S/Toyota 86 (WSF WF8602)

2013-2021 Subaru BRZ/Scion FR-S/Toyota 86 Front Drift Angle Lock Kit by Wisefab

Scion FRS, Toyota GT86, and Subaru BRZ all have the same chassis. Wisefab has engineered a lightweight super strong billet knuckle and lower control arm. Also relocated and replaced OEM electric steering rack with a hydraulic steering rack for a better response and feedback from the road in racing. Kinematics has been revised for maximum sideways performance with adjustable Ackermann settings. Nissan S-Chassis hydraulic steering rack ( 50mm outer diameter ) is needed to be used with the kit to replace the original electric power steering. S-Chassis steering rack attachment/cross member insert along with cross member supports are included in the kit. To modify the cross member some DIY cutting and welding needs to be done.

Due to the boxer engine, the original steering rack location is very unsuitable for drifting, therefore the steering rack has been moved from under the front crossmember with the possibility to use either the boxer engine or I6/V8 or something else. Lexus IS 1st gen (XE10 1998-2005) hydraulic steering rack is needed to be used with the kit to replace the original electric power steering. Lexus IS steering rack attachment/crossmember insert along with crossmember supports are included in the kit. To modify the crossmember some DIY cutting and welding needs to be done.

Features

• Constructed of High-Quality 7075-T6 Aluminium
• CrMo rod ends and spherical bushings used instead of OEM bushings

Benefits

• 62 degrees of lock, parallel steering
• 7 kg of weight reduction
• Higher roll center
• Good camber control and minimal bump steer with high steering angles
• Steering jacking control
• Consistent and predictable self-alignment torque

Applications

• 2013-2021 Subaru BRZ
• 2013-2016 Scion FR-S
• 2013-2021 Toyota 86

What's In The Box?

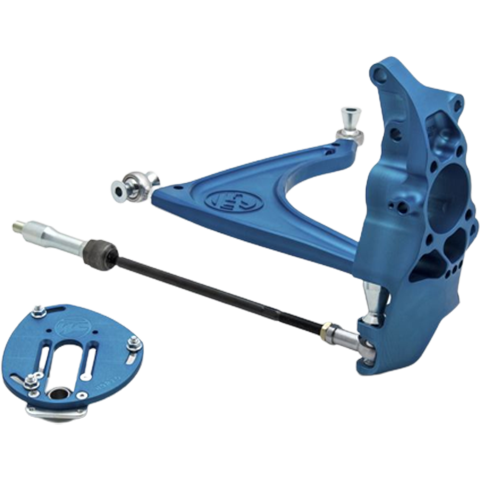

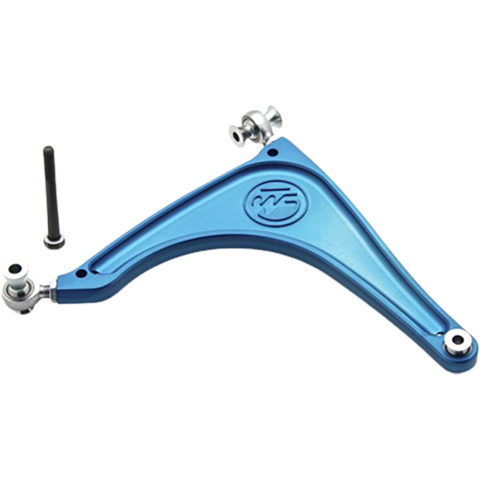

• 2 - Preset Lower Control Arms
• 2 - Knuckles with Hardware
• 1 - Assembled Tie Rod Kit
• 1 - Rack Relocating Kit
• 1 - Crossmember Support Kit

References

• Installaton Instructions

Warranty

• Wisefab's Limited Manufacturer's Warranty
