Wisefab Front Drift Angle Lock Kit | 2002-2012 Mazda RX-8 and 2005-2015 Mazda Miata (WFR80 LHD/RHD)

2002-2012 Mazda RX-8 and 2005-2015 Mazda Miata Front Drift Angle Lock Kit by Wisefab

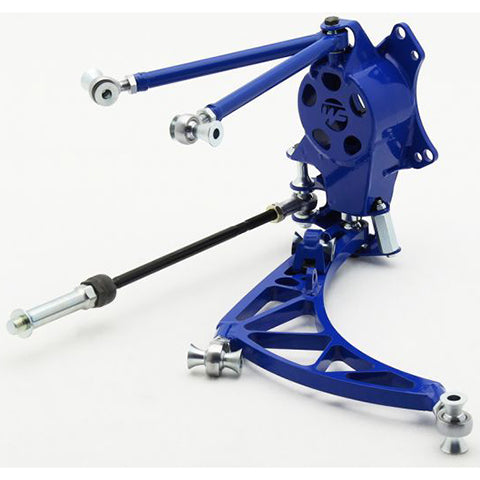

Mazda RX8 Lock kit by Wisefab has a relocated steering rack for better performance. We have created a custom 7075 aluminum billet U-joint to connect the Mazda steering column with the BMW rack. This lock kit has revised kinematics with adjustable Ackermann with custom washers. All the OEM bushings are replaced with spherical bearings for better and more precise handling.

Features

• Constructed from High-Quality Materials

Benefits

• 65 degrees of lock, parallel steering
• Higher roll center
• Steering jacking control
• Consistent and predictable self-alignment torque

Please Note: This kit assumes coilovers for enough clearance. Ride height is designed to be ~80mm when measured from the subframe to the ground. Depending on rim width and ET, widened fenders or flares will be needed. Inner wheel wells do not need to be modified with tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18, etc). Minimum rim size is 17". Recommended backspacing is ~135mm (7" ET45; 8" ET35; 9" ET20). If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used. Original wheel-speed sensor (ABS sensor) can be used Original swaybar can be used in front.

Applications

• 2002-2012 Mazda RX-8
• 2005-2015 Mazda Miata

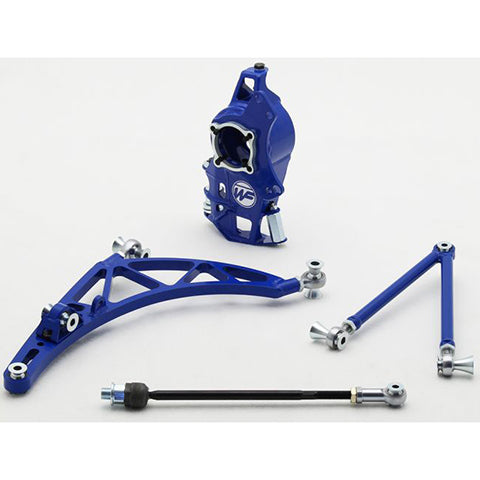

What's In The Box?

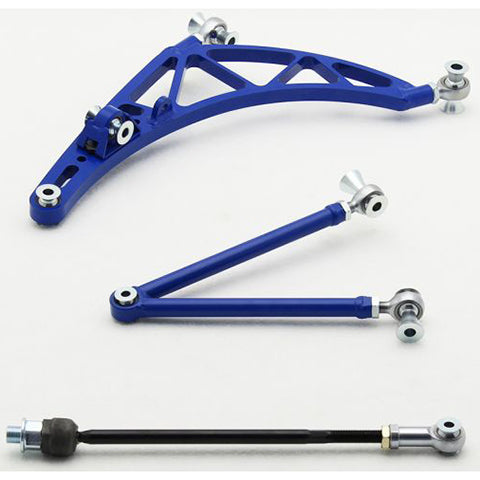

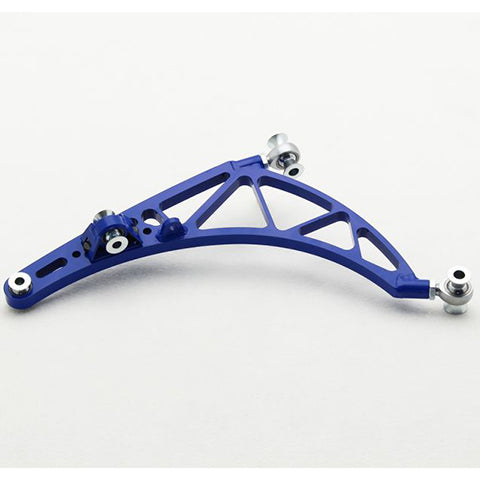

• 2 - Upper and Lower Control Arms

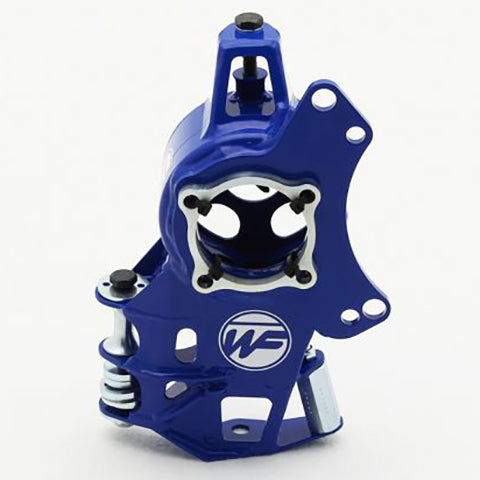

• 2 - Knuckles with Hardware
• 1 - Assembled Tie Rod Kit
• 1 - Rack Relocating Kit

References

• Installation Instructions

Warranty

• Wisefab's Limited Manufacturer's Warranty
