Wisefab Front Drift Angle Lock Kit | 2003-2008 Infiniti G35 and 2003-2009 Nissan 350Z (WF350)

2003-2008 Infiniti G35 and 2003-2009 Nissan 350Z Front Drift Angle Lock Kit by Wisefab

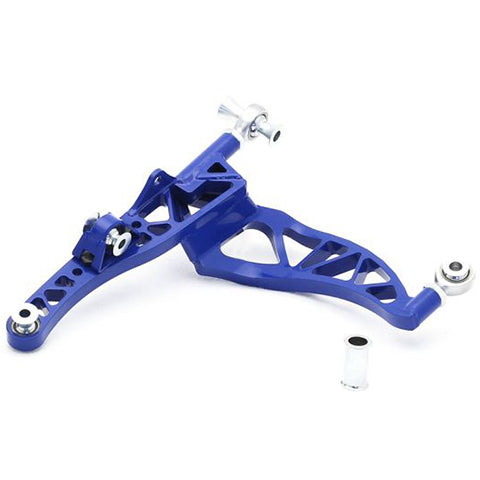

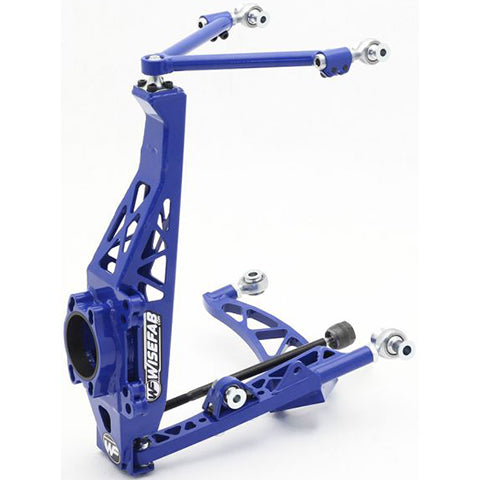

Wisefab Infiniti G35 angle kit is about the same weight as the original aluminum suspension. The lower control arm is a one-piece design with the shock motion ratio adjustment. Knuckles have Ackermann adjusting built-in.

Features

• One-piece lower control arm design
• Constructed from High-Quality Materials

Benefits

• 65 degrees of lock, parallel steering
• Adjustable lock stopper
• Higher roll center
• Very good camber control and minimal bump steer with high steering angles
• Steering jacking control
• Consistent and predictable self-alignment torque
• Adjustable spring and shock absorber motion ratio

Please Note: This kit assumes coilovers to have enough clearance. Ride height is designed to be ~80mm from front subframe to ground. Dependent on rim width and ET, wider fenders or fender flares would be needed. Inner wheel wells do not need to be modified with tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18, etc). Minimum rim diameter is 17”. Recommended backspacing is ~135mm (7“ ET45; 8“ ET35; 9“ ET20). If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used. The kit is designed and manufactured the way that after installation and toe adjustment it’s ready to use right away.

Applications

• 2003-2008 Infiniti G35
• 2003-2009 Nissan 350Z

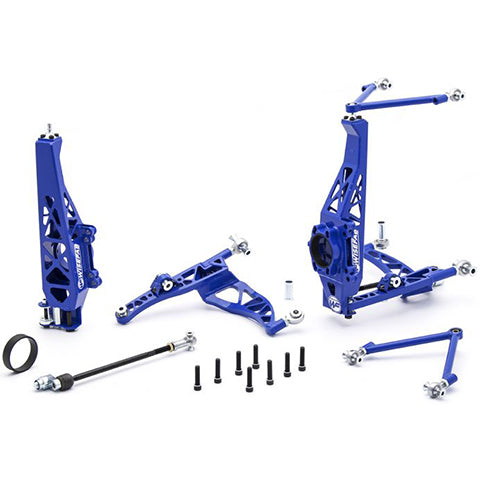

What's In The Box?

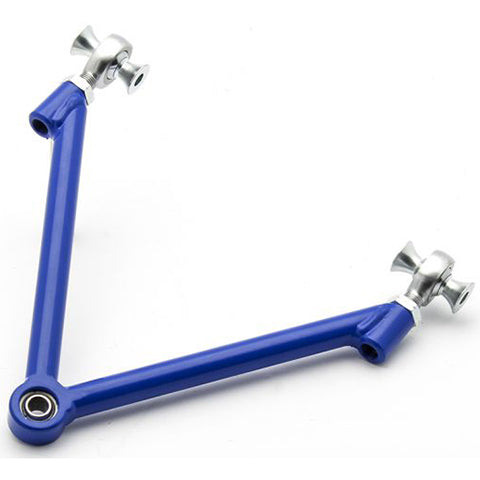

• 2 - Pre-Set Upper Control Arms
• 2 - Pre-Set Lower Control Arms
• 2 - Knuckles with Hardware

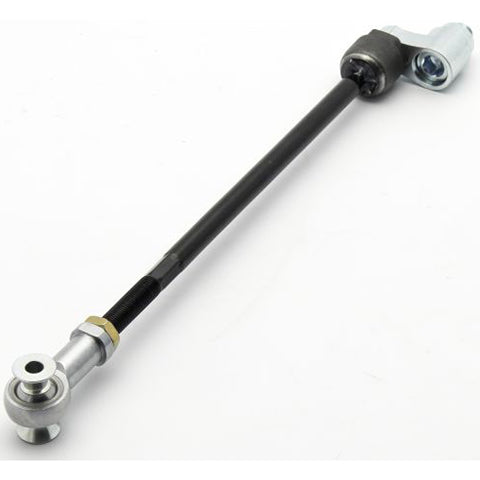

• 1 - Assembled Tie Rod Kit

Warranty

• Wisefab's Limited Manufacturer's Warranty
