Wiseco Sport Compact Series 86.0-88.0mm Bore Pistons | 2008-2015 Mitsubishi Lancer Evolution X 4B11T (K636M86) - Modern Automotive Performance
 - 1

MAP lowest price guarantee

Wiseco

Wiseco 4B11T Evo X Forged Pistons | 08-15 Mitsubishi Evolution 10

PART#
Find a lower price!?

( We'll refund the difference! )

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Email - sales@maperformance.com

Phone 1-888-627-3736



$ 585.49   $ 650.54
Instant Savings of % ()

this item typically ships in 4-6 weeks! Ships for FREE by , when ordered within hrs and mins

Fits Your
MAP Loyalty: Earn $ 11.71 Toward Next Purchase!

Mitsubishi Evo X Pistons by Wiseco

Own a 2008-2015 Mitsubishi Lancer Evolution X 4B11T and plan on building a motor? Wiseco is proven to make some of the best pistons on the market!

Featuring valve pocket designs that allow maximum flow around valve, also allowing oversized valves and high lift cams to be utilized. Piston crown shapes designed to promote maximum intake charge efficiency thru scavenging mixture "cross flow" during intake and exhaust valve overlap. More fuel and air equals more horsepower!

Their pistons are designed to optimize squish or quench during compression combustion cycle event, resulting in resistance to detonation and pre-ignition. The end product is longer engine life and increased horsepower potential.

Features

  • 2618 Aerospace Alloy for Superior Strength to Weight Ratio
  • ArmorGlide® Skirt Coating Increases Power and Reduces Piston Rock
  • Strutted Forging for Improved Strength

Benefits

  • Resistance to detonation and pre-ignition.
  • Longer engine life and increased horsepower potential.
  • Maximum ring seal minimizes blow-by and oil consumption.

Please Note

  • Oil Squirter modification required.
  • Most Wiseco Pistons have offset pins. (Pins must be offset, same as OEM, for quietest operation).

Applications

  • 2008 - 2015 Mitsubishi Evo X 4B11T

Specifications

  • Stroke: 3.386" (86mm)
  • Rod: 5.659 (143.75mm)
  • Comp Ht: 1.309 (33.25mm)
  • Head cc's: 49.0
  • Volume: -4.5cc
  • Gasket Thickness: .048 (1.2mm)
  • Deck Clearance: 0
  • Block Ht: 8.661 (220mm)

What's In The Box?

  • 1 - Sport Compact Series Piston Kit
  • Piston Pins and Rings

Warranty

  • WISECO warrants this product will be free from defects in material and workmanship for thirty (30) days following date of original purchase.

Mitsubishi Evo X Pistons by Wiseco

Own a 2008-2015 Mitsubishi Lancer Evolution X 4B11T and plan on building a motor? Wiseco is proven to make some of the best pistons on the market!

Featuring valve pocket designs that allow maximum flow around valve, also allowing oversized valves and high lift cams to be utilized. Piston crown shapes designed to promote maximum intake charge efficiency thru scavenging mixture "cross flow" during intake and exhaust valve overlap. More fuel and air equals more horsepower!

Their pistons are designed to optimize squish or quench during compression combustion cycle event, resulting in resistance to detonation and pre-ignition. The end product is longer engine life and increased horsepower potential.

Features

  • 2618 Aerospace Alloy for Superior Strength to Weight Ratio
  • ArmorGlide® Skirt Coating Increases Power and Reduces Piston Rock
  • Strutted Forging for Improved Strength

Benefits

  • Resistance to detonation and pre-ignition.
  • Longer engine life and increased horsepower potential.
  • Maximum ring seal minimizes blow-by and oil consumption.

Please Note

  • Oil Squirter modification required.
  • Most Wiseco Pistons have offset pins. (Pins must be offset, same as OEM, for quietest operation).

Applications

  • 2008 - 2015 Mitsubishi Evo X 4B11T

Specifications

  • Stroke: 3.386" (86mm)
  • Rod: 5.659 (143.75mm)
  • Comp Ht: 1.309 (33.25mm)
  • Head cc's: 49.0
  • Volume: -4.5cc
  • Gasket Thickness: .048 (1.2mm)
  • Deck Clearance: 0
  • Block Ht: 8.661 (220mm)

What's In The Box?

  • 1 - Sport Compact Series Piston Kit
  • Piston Pins and Rings

Warranty

  • WISECO warrants this product will be free from defects in material and workmanship for thirty (30) days following date of original purchase.

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Michael T.
Only the best

A couple of months ago a blew my head gasket and the shop recommended to do forged pistons to eliminate any weakness and handle any future modification for my EVO X, Tony help me with my order and getting it right the first time and got a smoking deal

Customer service was Excellent!

G
Giancarlo
reat Deal

Ordered wiseco pistons for my X with a great deal from map performance, used wiseco in my evo 8 build, using them again on the X because they are great performance and great price, no problem whatsoever with them

p
pikachu
my evo x built

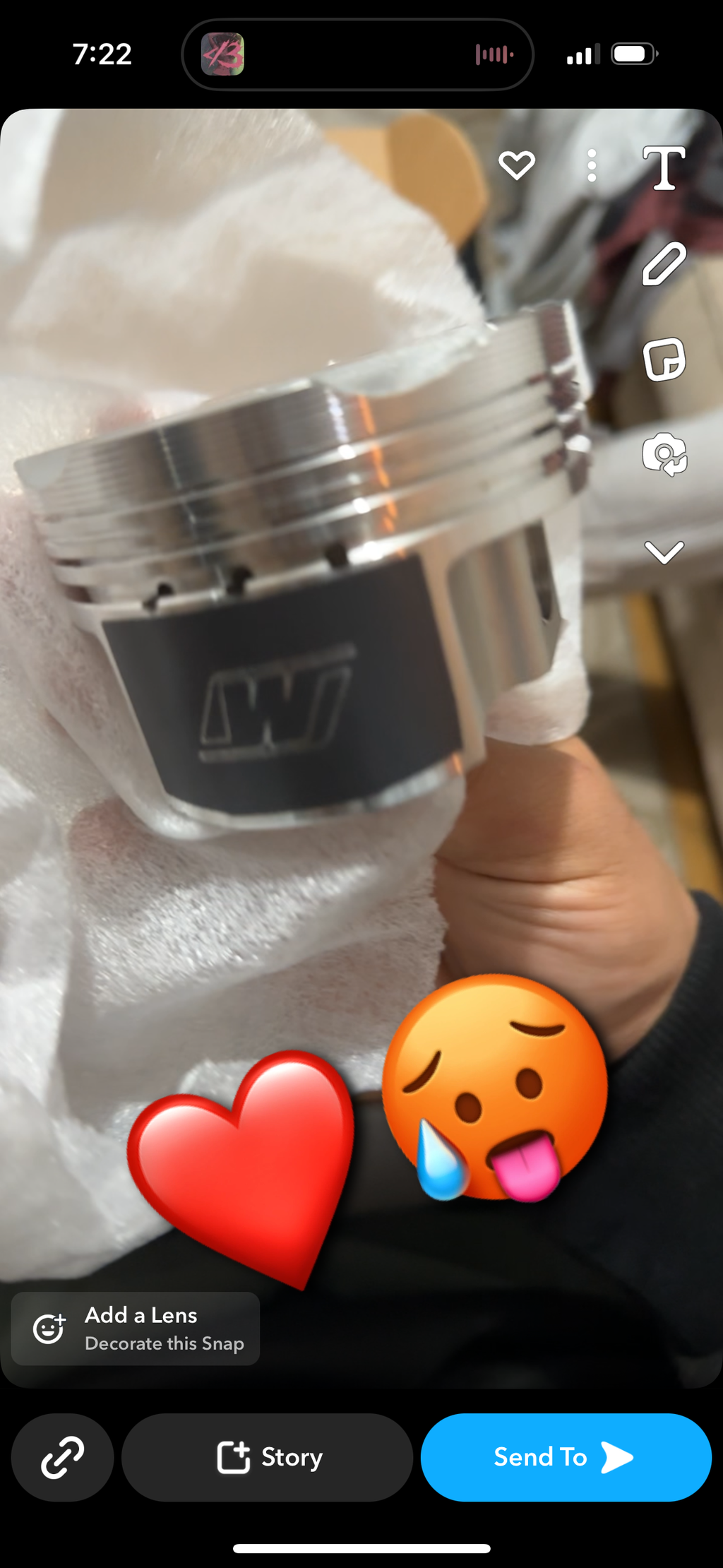

My tuner recommended me those pistons. im glad i take his advice its good quality for the money. very happy with the purchase

i
isaac samra
Great Pistons

I use to use another manufacturer for my pistons but over the years Wiseco has won me over. The design and machining are top notch and they are the best value available. They come standard with skirt coatings for no additional charge. If you ever need replacement rings or if they are out of spec from the box, the will ship you replacements overnight. Most companies charge for over sized rings even if they are small out the box, Wiseco doesnt or at least they didnt for me the 3 times i needed over sized rings. The wrist pin circlips on all Wisecos are the beefiest around. They require a lot more force to install but are definitely worth it.
