  • Tomei Valve Spring Kit 4B11 (Evo X) - Modern Automotive Performance
    • Tomei Valve Spring Kit 4B11 (Evo X)

    MAP price match guarantee Unbeatable Price Guarantee
    Tomei

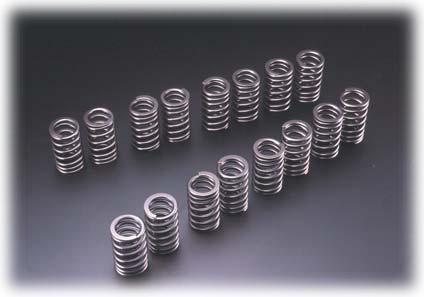

    Tomei Valve Spring Kit 4B11

    PART# TOM 163051
    We Price Match!

    Contact us to ensure you're getting the right part for your car at the absolute best pricing on earth!

    Email - sales@maperformance.com
    Phone 1(888)627-3736



    $ 216.00   $ 240.00
    You Save 10% ($ 24.00)

    Built To Order Free delivery by , to your door when ordered within hrs and mins
    Fits Your
    MAP Loyalty: Earn $ 4.32 Toward Next Purchase!

    TOMEI Valve Springs

    In terms of transferring the exact movement of the camshaft, the highest quality valve spring is required to the high RPM, high powered tuned engines. We developed our products with the most careful choice of the material, coating and the other technologies. Then we repeated severe tests to our pre-production in order to give the best quality that is performed in any situations.

    Features

    • Reliability in high RPM, and improvement in an initial response
    • High durability against metal fatigue
    • High durability against the shocks from jump and bounce
    • High durability against surging
    • High sag resistance

    Specifications

    DIAMETER: 3.40x4.25
    SET LENGTH(mm): 35.0
    LIFT LENGTH (mm): 23.0
    SUPPORTED LIFT: 12.20
    SET LOAD(kgf): 27.0±7%
    LIFT LOAD(kgf): 85.0±7%
    REV LIMIT(Ref.): 8500
    MATERIAL: NHK507
    PROCESS: Nitride

    TOMEI Valve Springs

    In terms of transferring the exact movement of the camshaft, the highest quality valve spring is required to the high RPM, high powered tuned engines. We developed our products with the most careful choice of the material, coating and the other technologies. Then we repeated severe tests to our pre-production in order to give the best quality that is performed in any situations.

    Features

    • Reliability in high RPM, and improvement in an initial response
    • High durability against metal fatigue
    • High durability against the shocks from jump and bounce
    • High durability against surging
    • High sag resistance

    Specifications

    DIAMETER: 3.40x4.25
    SET LENGTH(mm): 35.0
    LIFT LENGTH (mm): 23.0
    SUPPORTED LIFT: 12.20
    SET LOAD(kgf): 27.0±7%
    LIFT LOAD(kgf): 85.0±7%
    REV LIMIT(Ref.): 8500
    MATERIAL: NHK507
    PROCESS: Nitride
