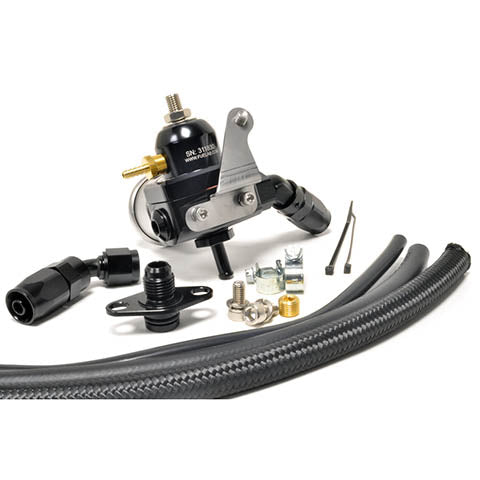

STM E85 Basic Fuel Pressure Regulator Kit | 2003-2006 Mitsubishi Lancer Evolution 8/9 (EVO89-BASIC-FPRK)PART#
The STM Basic FPR Kit for the Evolution VIII-IX includes all fittings, hardware and line to go from your fuel rail to factory-style or -6AN outlet regulator and back to the return line. The STM Basic FPR Kit includes a -6AN Fuelab Regulator (Standard or Mini) in your choice of 6 colors and is 100% E85 safe.
- Includes every part needed to bolt-in and work
- Soft nylon braided hose will not scratch like stainless
- Silicone-filled fuel pressure gauge
- Fuelab regulator in your choice of 6 colors
- 100% E85 safe
- The blue O-rings and plug are not used.
- Thread Tape should be used on the gauge and the brass fitting.
- Do NOT use thread tape on AN fittings!
- 2003-2006 Mitsubishi Lancer Evolution 8/9

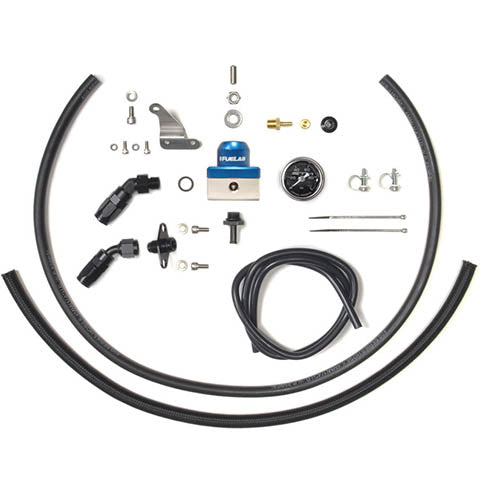

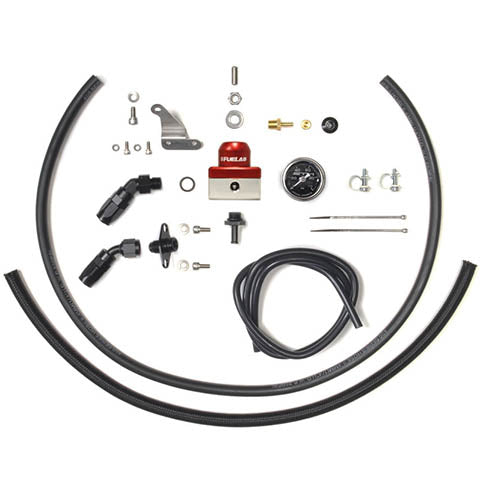

What's In The Box
- (1) Fuelab -6AN Fuel Pressure Regulator (51502)
- (1) Vibrant -6AN ORB 45° Hose End Fitting (24402)
- (1) Vibrant -6AN 45° Hose End Fitting (21406)
- (1) STM -6AN Barb Fitting (STM-6AN-7MM)
- (1) Russell -6AN Port Plug (660273)
- (2) -4AN Hose Clamps
- (1) STM Fuel Rail Fitting with SS Hardware
- (1) Marshall Liquid-Filled Fuel Pressure Gauge
- (1) Vibrant 3-Foot Length -4AN Push-On Hose (16324)
- (1) Vibrant 2-Foot Length -6AN Black Braided Hose (11956)
- (1) 3 Foot Section 3mm Silicone Vacuum Line
