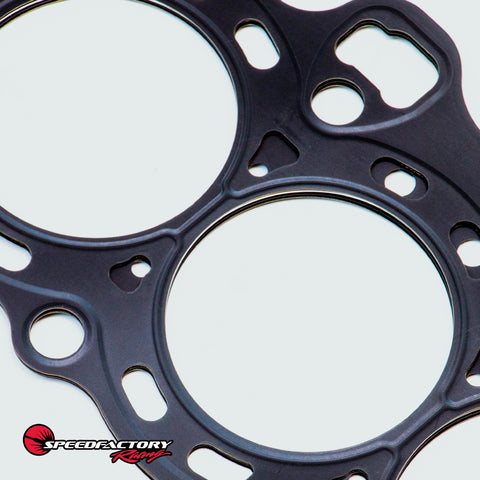

SpeedFactory Racing High Performance MLSS-HP Head Gasket | 1988–1995 Honda Civic Si, 1985–1991 Honda CRX Si, and 1986–1989 Acura Integra (SF-02-212)

1988–1995 Honda Civic Si, 1985–1991 Honda CRX Si, and 1986–1989 Acura Integra High-Performance MLSS-HP Head Gasket by SpeedFactory

SpeedFactory Racing is proud to release our own high-performance Honda D-Series VTEC MLS head gasket!

These MLS gaskets have been purpose-built to provide an excellent seal on ALL SOHC D-Series VTEC applications, from factory setups to high compression/nitrous/turbocharged/supercharged engines.

Most turbo D-Series SOHC VTEC enthusiasts utilize a stock engine block & cylinder head with upgraded internal components, generating power levels in the 200-500whp range. Upgraded head studs are a must, but many still struggle with head gasket sealing issues. For these D16 applications, adding a stopper ring provides enough additional sealing stress around the cylinders for a reliable combustion seal. If running beyond the ~500whp range a sleeved block with O-rings is recommended.

The 0.036” gasket thickness makes up for cylinder head and block surfacing vs the OEM 3-layer 0.028” thickness and allows us to utilize a 4-layer design with specialized embossments that increase active combustion sealing height, ideal for high output engines that experience high levels of head lift/movement. We’ve also incorporated a unique internal silicone bead on the oiling passages for improved sealing.

Features

• Available Sizes: 76.00mm (Use for 75.0mm-76.0mm maximum bore)
• 0.036”/0.914mm thickness
• MLSS-HP (Multiple Layer Stainless Steel + Silicone Bead) Head Gasket optimized for high performance use
• OE quality, OE certified manufacturer (ISO 9001, ISO/TS16949, ISO 14001 certified).
• Constructed from high-quality materials

Benefits

• 4-layer MLS design with specialized embossment increases active combustion sealing height, ideal for forced induction engines that experience high levels of head lift/movement.
• Unique internal silicone elastomeric sealing bead around oiling passages for improved fluid sealing.
• High-performance elastomeric coating to ensure the best possible seal by compensating for surface irregularities.

Applications

• 1986–1987 Honda Civic Si Hatch
• 1988-2005 Honda Civic
• 1988–1995 Honda Civic Si
• 1984–1987 Honda CRX
• 1985–1991 Honda CRX Si
• 1993–1997 Honda Del Sol
• 1993–1995 Honda Del Sol Si
• 1986–1989 Acura Integra

What's In The Box?

• 1 - Head Gasket

Warranty

• SpeedFactory's Standard Limited Warranty
