SpeedFactory Racing B16 Forged Steel H-Beam Connecting Rods | 1997-2000 Honda Civic Type-R, 1994-1995 Honda Del Sol, and 1999-2000 Honda Civic Si (SF-02-108)
SpeedFactory Racing1997-2000 Honda Civic Type-R, 1994-1995 Honda Del Sol, and 1999-2000 Honda Civic Si B16 Forged Steel H-Beam Connecting Rods by SpeedFactory
We are proud to introduce the new SpeedFactory Racing B16 H-beam connecting rods!
These rods are ideally suited to B-Series engine builds to the 900+HP range and offer high strength and quality at an affordable price. Our design is strong enough for almost any B16 build.
The 2-piece forged 4340 chromoly construction provides outstanding strength and quality. Each rod is heat-treated, magnafluxed, CNC machined and shot-peened to stress-relieve the metal. The rods have precision alignment dowels to positively locate the rod cap, maintain big end bore size, and eliminate cap walk. They feature bronze alloy pin bushings for floating wrist pins and come standard with 220,000 psi rated 3/8” ARP2000 rod bolts. Instructions and ARP Lube are included.
Features
- Forged SAE 4340 Chromoly Steel
- 100% CNC machined

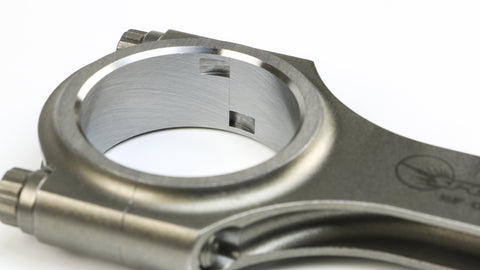

- Precision rod cap alignment dowels
- Bronze alloy pin bushings w/dual offset oiling holes for superior lubrication
- Pin end fits most aftermarket pistons w/out additional machining
- Not compatible with OEM-style pistons
- Magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Each set balanced to +/- 1 gram
- Laser etched SFR logo
- 900+hp rated
- Engine: Honda/Acura B16
- Material: Forged 4340 chromoly
- Bolts: 3/8” ARP2000
- Weight: 544 grams
- Center to Center Length: 134.37mm – 5.290”
- Pin End Bore: 21.02mm - 0.828”
- Pin End Width: 21mm – 0.827”
- Big End Bore: 48mm – 1.890”
- Big End Width: 23.75mm – 0.935”
Applications
- 1997-2000 Honda Civic Type-R
- 1994-1995 Honda Del Sol
- 1999-2000 Honda Civic Si
What's In The Box?

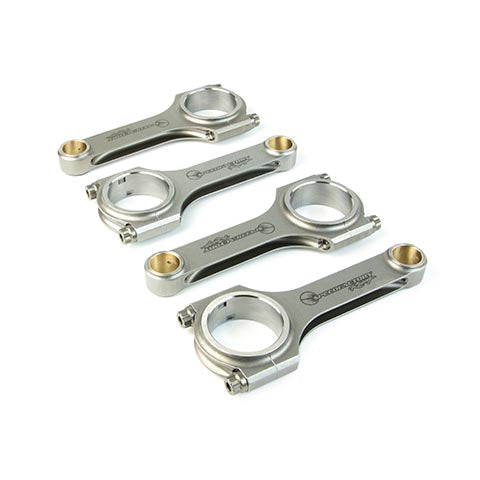

- 4 - Connecting Rods
Warranty
- SpeedFactory's Standard Limited Warranty
