SpeedFactory Racing Air-to-Air Intercooler Cores (SF-06-091)

Air-to-Air Intercooler Core by SpeedFactory

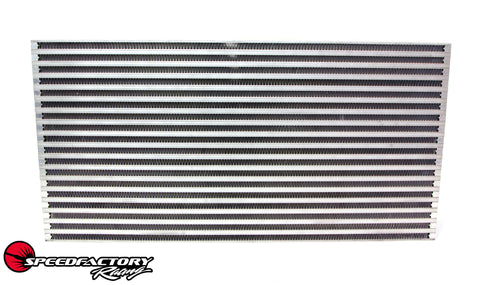

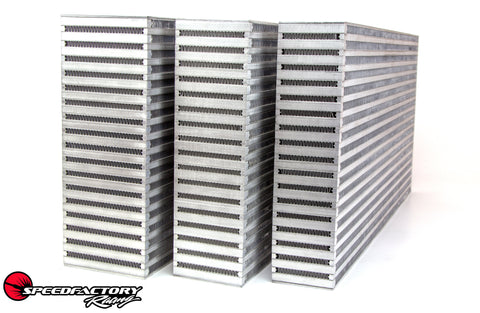

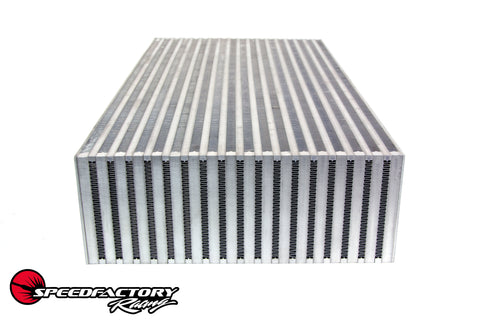

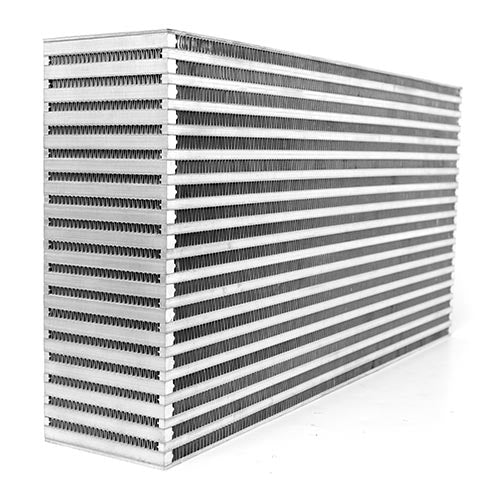

SpeedFactory Air-to-Air Intercooler Cores feature bar and plate core construction with a very specific staggered fin combination that is engineered to achieve maximum cooling efficiency while minimizing pressure drop. The overall strength and durability of our intercooler core designs makes them capable of efficiently handling even the most extreme, high boost level racing applications. Deliver significantly cooler, denser air to your engine with a performance proven SpeedFactory Racing Intercooler Core.

Features

• SF-06-091 (24 x 12 x 3) Air to Air Intercooler Core Specifications:
• Core Width: 24.0"
• Core Height: 12.0"
• Core Thickness: 3”
• Approximate HP Rating: 600-850
• Staggered Fin Bar and Plate Construction
• SF-06-092 (24 x 12 x 3.5) Air to Air Intercooler Core Specifications:
• Core Width: 24.0"
• Core Height: 12.0"
• Core Thickness: 3.5”
• Approximate HP Rating: 850-1,000
• Staggered Fin Bar and Plate Construction
• SF-06-096 (24 x 12 x 4.5) Air to Air Intercooler Core Specifications:
• Core Width: 24.0"
• Core Height: 12.0"
• Core Thickness: 4.5”
• Approximate HP Rating: 1,000-1,200
• Staggered Fin Bar and Plate Construction

Applications

• Universal

What's In The Box?

• 1 - Air-to-Air Intercooler Core

Warranty

• SpeedFactory's Standard Limited Warranty
