    S200SX-E Journal Bearing Super Core Assembly W/ Optional T3-T4 Flange By BorgWarner

    PART#
    We Price Match!

    Contact us to ensure you're getting the right part for your car at the absolute best pricing on earth!

    Email - sales@maperformance.com
    Phone 1(888)627-3736



    $ 692.85   $ 866.07
    You Save % ()


      +1-888-627-3736
    Free delivery by , to your door when ordered within hrs and mins
    Fits Your
    MAP Loyalty: Earn $ 13.86 Toward Next Purchase!

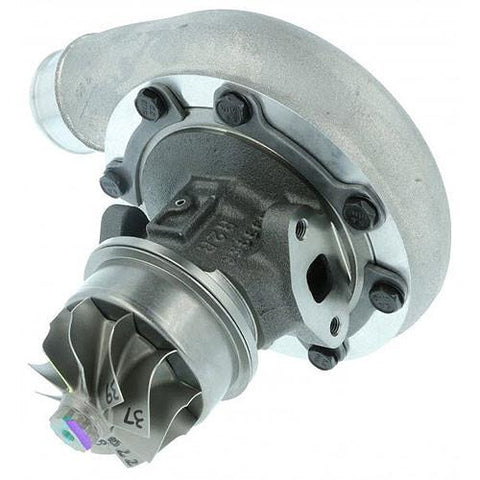

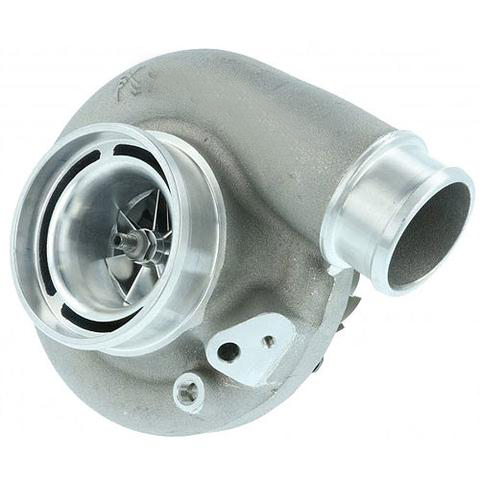

    S200SX-E T3/T4 Journal Bearing Turbo Assembly

    This turbo has flow capabilities ranging from 300 to 650HP. Airwerks turbochargers are designed for the competitive motorsports market as well as drivers retrofitting a naturally aspirated engine or looking for a little more performance from a factory turbocharged car. Engineered specifically for drag racing, pulling and road racing, AirWerks turbochargers have earned a reputation as robust, brute-force induction systems. Looking for a no-frills replacement? Want to upgrade your turbocharger? Working with limited space?

    BorgWarner's AirWerks turbochargers are the perfect go-to product for many applications. With a twin hydrodynamic journal bearing design, AirWerks turbochargers feature an effective high-pressure ratio compressor stage, extended-tip technology and a high-efficiency turbine stage. The configuration provides ultra-fast response and more than 70 PSI of boost.

    Features

    • Pre-Machined Boost Port
    • Integrated Speed Sensor Port
    • Forged Milled Compressor Wheel
    • Optimized Compressor Cover Aerodynamics
    • Flexible Compressor Cover Outlet Options

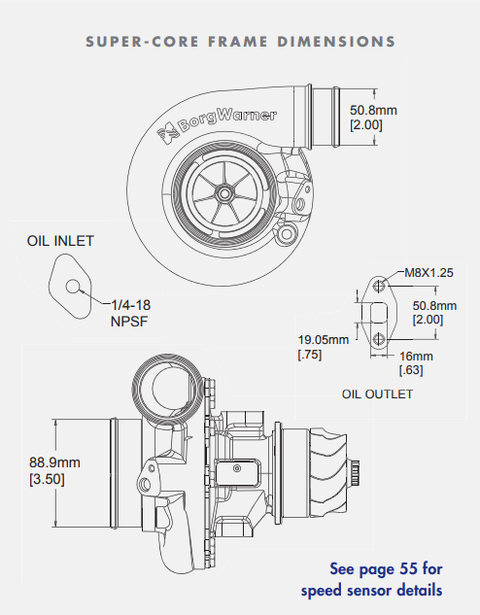

    Specifications

    • 52.17mm -or- 57.15mm Compressor Wheel
    • 70mm / 2.74'' Turbine Wheel O.D.
    • Straight Compressor Outlet

    Relevant Links

    What's in the Box?

    • 1 T3/T4 S200SX-E Super Core
    • All turbine housing mounting hardware,
      clamp plates & cap screws included with super core.

    Warranty

    • 1-Year Manufacturer's Warranty

    S200SX-E T3/T4 Journal Bearing Turbo Assembly

    This turbo has flow capabilities ranging from 300 to 650HP. Airwerks turbochargers are designed for the competitive motorsports market as well as drivers retrofitting a naturally aspirated engine or looking for a little more performance from a factory turbocharged car. Engineered specifically for drag racing, pulling and road racing, AirWerks turbochargers have earned a reputation as robust, brute-force induction systems. Looking for a no-frills replacement? Want to upgrade your turbocharger? Working with limited space?

    BorgWarner's AirWerks turbochargers are the perfect go-to product for many applications. With a twin hydrodynamic journal bearing design, AirWerks turbochargers feature an effective high-pressure ratio compressor stage, extended-tip technology and a high-efficiency turbine stage. The configuration provides ultra-fast response and more than 70 PSI of boost.

    Features

    • Pre-Machined Boost Port
    • Integrated Speed Sensor Port
    • Forged Milled Compressor Wheel
    • Optimized Compressor Cover Aerodynamics
    • Flexible Compressor Cover Outlet Options

    Specifications

    • 52.17mm -or- 57.15mm Compressor Wheel
    • 70mm / 2.74'' Turbine Wheel O.D.
    • Straight Compressor Outlet

    Relevant Links

    What's in the Box?

    • 1 T3/T4 S200SX-E Super Core
    • All turbine housing mounting hardware,
      clamp plates & cap screws included with super core.

    Warranty

    • 1-Year Manufacturer's Warranty
