Revel VLS OLED Oil Temperature Gauge (1TR1AA003R)
( We'll refund the difference! )
Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.
Email - firstname.lastname@example.org

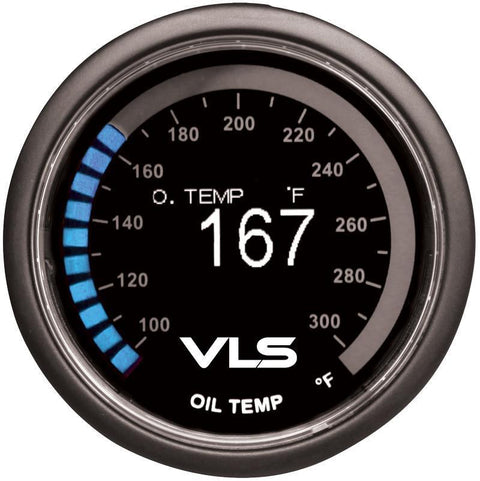

OLED Oil Temperature Gauge by Revel VLS
The Revel VLS Oil Temperature gauge monitors temperatures starting from 100 ºF all the way up to 300 ºF. The OLED screen allows for easy readings from any viewing angle, and a 30 LED outer ring for viewing at a quick glance. This kit is included with the oil temperature sensor in 1/8 NPT thread pitch for easy installation.
The Revel VLS Oil Temperature gauge is daisy-chain compatible with the VLS Boost gauge, VLS Water Temperature gauge, VLS Oil Pressure gauge, and VLS Voltage gauge. This requires only one source of power for the first gauge in the series and utilizing the included daisy chain cable to power other gauges. This allows for a clean installation that avoids having many cables connected to a power source.
Maximum comfort is attained by the use of an OLED (Organic Light Emitting Diode) numerical display. When compared to a traditional LCD display, the OLED display provides sharper contrast resulting in a deeper black for a crisp, clear images that is easier to read at a glance. The technology also allows for undistorted viewing angles approaching 170 degrees. The OLED display also does not require a backlight to be clearly visible at night, which gives the slim profile of the gauge — perfect for mounting in areas where space is an issue. All Revel VLS gauges include the necessary hardware, sensors, and universal mounting pod and hood, as well as the installation instructions
- 2 1/16 in. (52mm) diameter gauge
- 100 ºF to 300 ºF reading
- Oil temp sensor included (1/8 NPT thread pitch)
- Digital OLED display
- 30 LED outer ring
- Daisy chain compatible
- Mounting kit included
Please Note: The Revel VLS Wideband A/F gauge is not daisy-chain compatible.
What's In The Box?
- 1 - Oil Temperature Gauge (52mm)
- 1 - Power Harness
- 1 - Oil Temp Sensor and Harness
- 1 - Mounting Pod
- 1 - Sun Shade
- Mounting Brackets and Hardware
- Warranty Information
Revel VLS 1-Year Limited Warranty
