    Radium Engineering

    Radium Secondary 6-Port Fuel Rail | Mazda 20B-REW

    PART# RAD 20-0466
    We Price Match!

    Contact us to ensure you're getting the right part for your car at the absolute best pricing on earth!

    Email - sales@maperformance.com
    Phone 1(888)627-3736



    $ 227.95   $ 239.95
    You Save 5% ($ 12.00)


    Built To Order Free delivery by , to your door when ordered within hrs and mins
    Fits Your
    MAP Loyalty: Earn $ 4.56 Toward Next Purchase!

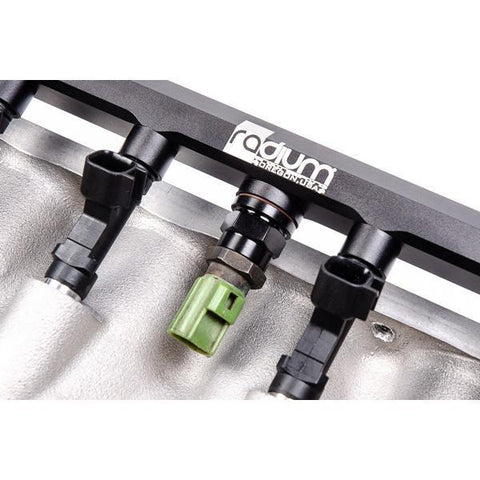

    Mazda 20B-REW 6-Port Secondary Fuel Rail by Radium Engineering

    This Radium Engineering secondary fuel rail is for aftermarket 6-port intake manifolds that are produced for the Mazda 20B-REW rotary engine. The aluminum fuel rail is anodized black for compatibility with all popular fuel types including E85. Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements.

    Features three 8AN ORB ports. The extra center port allows additional fuel system accessories such as the OEM fuel temperature sensor, a pressure transducer, Radium fuel pulse damper, etc.

    Insulating phenolic spacers and washers are included with stainless steel hardware to prevent thermal energy from conducting heat into the fuel. The two M8 extension mounts are made from stainless steel for superior strength and corrosion resistance.

    Features

    • Designed for 6-port aftermarket intake manifolds
    • Aluminum fuel rail anodized black
    • Compatible with all popular fuel types
    • Large internal bore
    • Three 8AN ORB ports
    • Insulating phenolic spacers included
    • Stainless steel hardware
    • 14mm lower injector seats are included for aftermarket injectors

    Please Note: Fuel Injectors are NOT included and must be purchased separately.

    Applications

    • Mazda 20B-REW

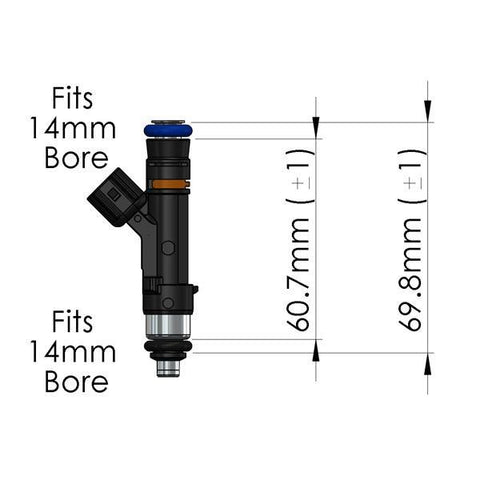

    Fuel Injector Compatibility

    • Injector Dynamics ID850-60-14-14
    • Injector Dynamics ID1050x-60-14-14
    • Injector Dynamics ID1300-60-14-14
    • Injector Dynamics ID1700-60-14-14
    • Injector Dynamics ID2000-60-14-14
    • Evolved Injection DPI550-60-14-14
    • Evolved Injection DPI650-60-14-14
    • Evolved Injection DPI850-60-14-14
    • Evolved Injection DPI1000-60-14-14
    • Evolved Injection DPI1200-60-14-14
    • Evolved Injection DPI1300-60-14-14
    • Evolved Injection DPI2200-60-14-14

    What's In The Box?

    • 1 - Secondary 6-Port Fuel Rail
    • Fittings & Hardware

    References

    Warranty

    • All Radium Engineering brand products are subject to a 1 Year Limited Warranty from the date of original purchase.

    Mazda 20B-REW 6-Port Secondary Fuel Rail by Radium Engineering

    This Radium Engineering secondary fuel rail is for aftermarket 6-port intake manifolds that are produced for the Mazda 20B-REW rotary engine. The aluminum fuel rail is anodized black for compatibility with all popular fuel types including E85. Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements.

    Features three 8AN ORB ports. The extra center port allows additional fuel system accessories such as the OEM fuel temperature sensor, a pressure transducer, Radium fuel pulse damper, etc.

    Insulating phenolic spacers and washers are included with stainless steel hardware to prevent thermal energy from conducting heat into the fuel. The two M8 extension mounts are made from stainless steel for superior strength and corrosion resistance.

    Features

    • Designed for 6-port aftermarket intake manifolds
    • Aluminum fuel rail anodized black
    • Compatible with all popular fuel types
    • Large internal bore
    • Three 8AN ORB ports
    • Insulating phenolic spacers included
    • Stainless steel hardware
    • 14mm lower injector seats are included for aftermarket injectors

    Please Note: Fuel Injectors are NOT included and must be purchased separately.

    Applications

    • Mazda 20B-REW

    Fuel Injector Compatibility

    • Injector Dynamics ID850-60-14-14
    • Injector Dynamics ID1050x-60-14-14
    • Injector Dynamics ID1300-60-14-14
    • Injector Dynamics ID1700-60-14-14
    • Injector Dynamics ID2000-60-14-14
    • Evolved Injection DPI550-60-14-14
    • Evolved Injection DPI650-60-14-14
    • Evolved Injection DPI850-60-14-14
    • Evolved Injection DPI1000-60-14-14
    • Evolved Injection DPI1200-60-14-14
    • Evolved Injection DPI1300-60-14-14
    • Evolved Injection DPI2200-60-14-14

    What's In The Box?

    • 1 - Secondary 6-Port Fuel Rail
    • Fittings & Hardware

    References

    Warranty

    • All Radium Engineering brand products are subject to a 1 Year Limited Warranty from the date of original purchase.
