RA - Fuel Cell by Radium Engineering

A competition grade fuel cell provides maximum performance and safety for high performance vehicles. RA-series fuel cells are designed and manufactured by Radium Engineering to meet top safety requirements set forth by the worldwide safety organizations FiA and SFI.

The heart of the fuel cell is the bladder. This component undergoes thorough testing and carries the critical certifications. Radium RA-series bladders are made from a special polymer that is resistant to ALL fuel types (gasoline, diesel, AV gas, E15, E85, ethanol, methanol, etc).

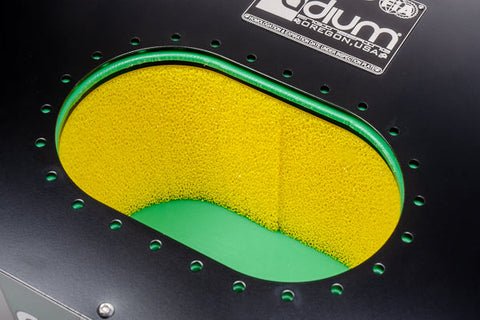

The bladder is housed in a lightweight powder coated aluminum enclosure that protects from damage and debris. Pre-cut explosion suppressing anti-slosh foam is included as well as an innovative threaded aluminum nut ring which makes fuel pump installation fast and easy.

Optional ready fit weld-in cages can be found here: RA-Series Weld-In Cage

Please Note: All fuel cell sales are FINAL and cannot be returned or exchanged. Measure carefully prior to ordering to ensure you receive the correct size.


  • The RA-series fuel cells have been tested and approved by FIA and SFI.

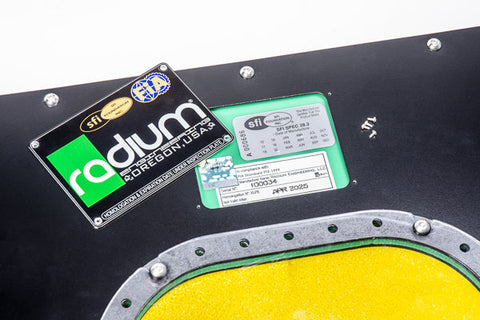

  • All RA-series fuel cells are serialized and come with both certifications and associated paperwork.
  • Certifications are valid for 5 years from the date of manufacture.


  • 20-0606 Gallons: 5.4- 6.0
  • 20-0610 Gallons: 9.2-10.0
  • 20-0611 Gallons: 10.3-10.5
  • 20-0614 Gallons: 13.7-14.0
  • 20-0622 Gallons: 21.5 - 22.0

What's In The Box?

  • 1 - Seamless Polymer Bladder
  • 1 - Explosion Suppressing Anti-Slosh Foam
  • 1 - Powder Coated Aluminum Enclosure
  • 1 - Anodized Aluminum Nut Ring
  • 1 - Removable Inspection Plate
  • 2 - FKM 6x10 24-bolt Gaskets
  • Stainless Steel Hardware&nbsp
  • Certification of Conformance
