Radium Engineering Fuel Surge Tank for Walbro 400/450 Fuel Pumps (20-0058)
( We'll refund the difference! )
Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.
Email - email@example.com
Fuel Surge Tank for Walbro 400/450 Fuel Pumps by Radium Engineering
A fuel surge tank (FST) is designed to prevent fuel starvation to the engine on vehicles with inadequate fuel tank baffling. The FST fuel pump(s) directly feed the fuel rail(s). The volume of fuel inside the surge tank acts as a buffer to always keep the FST pump supplied with fuel. This volume is maintained by the main fuel tank's pump as well as the fuel returning from the fuel pressure regulator. Excess fuel in the surge tank is returned back to the vehicle's main fuel tank.
The surge tank also provides a quick and easy way to upgade any standard fuel system without the need to modify the stock fuel tank or pump. This is an excellent fueling solution for vehicles installing large fuel demand power upgrades such as forced induction.

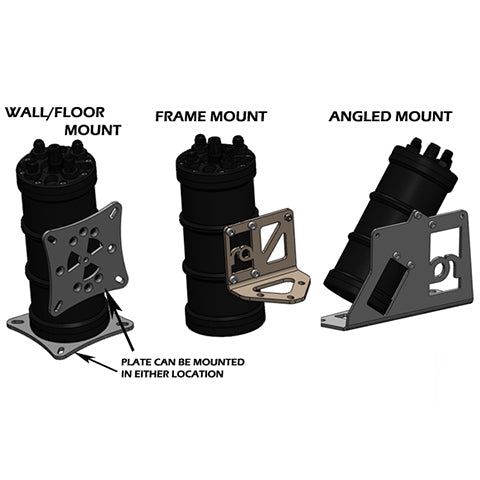

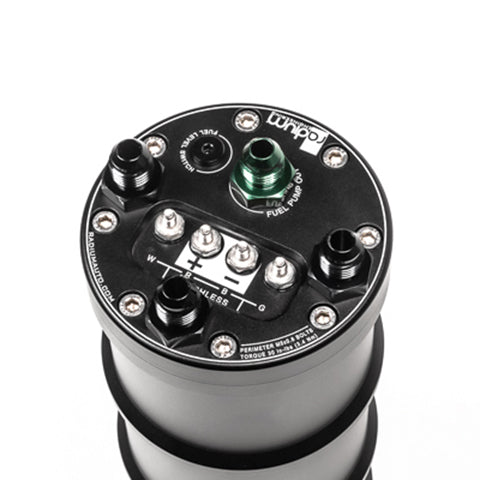

All pumps mount internally using gasoline, ethanol, and methanol resistant wiring. For dual-pump configurations, each pump is wired independently. All hoses are submersible and E85 safe. The pump outlet fitting(s) are available in -6AN male size only (shown in green). The other ports can be adapted to other -AN sizes using adapters (sold separately). The fuel surge tank can be mounted anywhere in the vehicle. However, mounting near collision prone areas, heat sources, or moving parts such as suspension components should be avoided.
- Extruded and Machined Aluminum 1.5 Liter Canister
- Bright Dipped Anodized and Laser Engraved Housing
- Removeable O-Ring Sealed Billet Aluminum Caps
- -6AN O-Ring Fittings
- Circular Bulkhead Electrical Connector with 24" Flying Leads
- Corrosive Resistant Stainless Steel Hardware
Please Note: RADIUM DOES NOT OFFER A WARRANTY ON ANY FUEL PUMPS! FUEL PUMPS CAN BE RETURNED IN UNUSED CONDITION WITHIN 30 DAYS OF PURCHASE.
What's In The Box?
- 1 - Fuel Surge Tank
- 1 - Walbro 400 Pump (if ordered)
- 1 - Mounting Bracket
- Necessary Fittings & Hardware
- NO WARRANTY IS OFFERED ON THIS PRODUCT. RETURNS ACCEPTED WITHIN 30 DAYS (UNUSED ONLY).
Excellent quality and easy install with the supplied harness. Got rid of all fuel surge on my '03 tiburon running 24psi.
