Fuel Pump Hanger for 2016+ Honda Civic by Radium Engineering

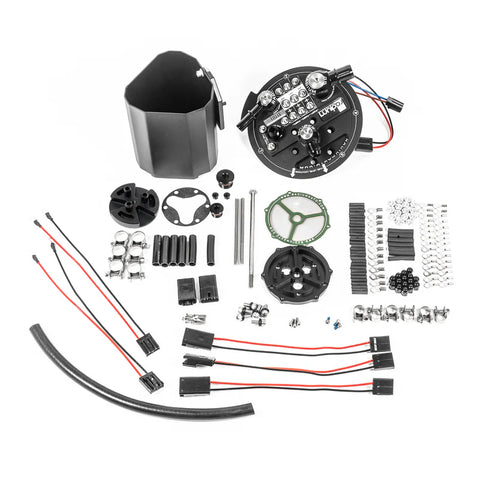

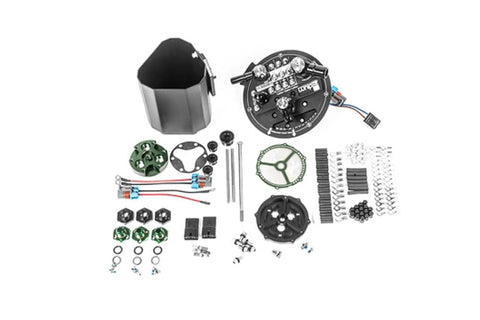

This Radium Engineering fuel hanger for the 2016+ Honda Civic is compatible with 1 or 2 or 3 aftermarket fuel pumps. The kit reuses the OEM fuel level sensor as well as the OEM vent and ORVR emission ports.

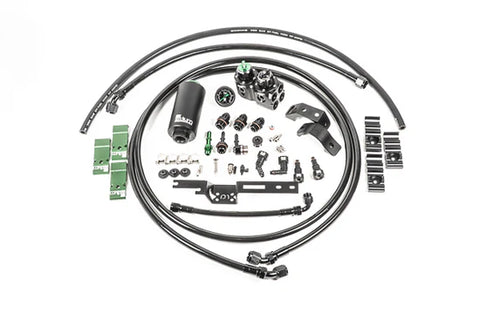

For some models, available plumbing kits provide all necessary plumbing to and from the engine including a fuel filter, fuel pressure regulator, fuel lines, adapter fittings, and mounting hardware.
The merged fuel pump outlet is tapped for 10AN ORB (7/8"-14) female threads on the top plate. However, a low profile 8AN male fitting (shown below left) is provided to connect to an aftermarket fuel line (not included). The fuel return inlet is tapped for 6AN ORB (9/16"-18) female threads on the top plate. A 6AN male adapter (shown below right) is provided to connect to an aftermarket fuel line (not included). All fittings are machined low enough to clear the surrounding area.
Please Note: Fuel pump is not included
Features
- Aluminum and Stainless Construction
- Merged 10AN ORB Female Pump-Out Port
- Anti-Rotation Electrical Terminals
Benefits
- Compatible with Various Pumps
- Drop-In Installation
- Gas, Methanol, and E85 Compliant
