    On Sale

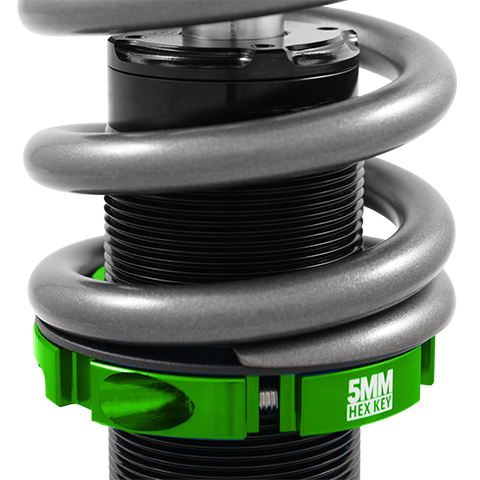

    Nissan 350Z Coilovers Kit Fortune Auto 500 Series (FA500-Z33)

    MAP Loyalty Program: Earn $ 26.60 Toward Next Purchase!
    PART# FOR3 FA500-Z33

    $1,330.00   $1,430.00
    You Save 7% ($100.00)

    Free Shipping On Orders $199 and Up!

    Nissan 350Z Coilovers Kit Fortune Auto 500 Series (FA500-Z33) - Modern Automotive Performance
 - 1
    Nissan 350Z Coilovers Kit Fortune Auto 500 Series (FA500-Z33) - Modern Automotive Performance
 - 1 Nissan 350Z Coilovers Kit Fortune Auto 500 Series (FA500-Z33) - Modern Automotive Performance
 - 2 Nissan 350Z Coilovers Kit Fortune Auto 500 Series (FA500-Z33) - Modern Automotive Performance
 - 3

    All Fortune Auto shock absorbers use Digressive piston technology. This technology allows for stiff low speed compression/rebound force which helps give better control of driver inputs such as roll, dive and squat. However, at fast stroke speeds (i.e. high speed bumps) the suspension is kept supple in response to bumps and irregularities in the road.The ability to upgrade to 2-Way canisters at any time ensures that your investment is a sound one. Update your shocks without the need of investing into a complete new coilover system: simply send your 500 series shocks into our service center for the modular 2-Way upgrade. All 500 series dampers are fully rebuildable, serviceable, and can be custom valved at any time. Please consult our 2-Way application list for more details and availability.500 series damper shaft seals have 40% less drag than our previous models. This provides for less hysteresis and for superior control of driver inputs. Our new seals are made of a specially formulated Buna rubber compound that provides a great balance between reliability and performance! Since the shaft seal is the most important seal on the shock, a stronger seal will greatly improve quality and performance.

    Features

    • All shocks custom built to order
    • Occasional track use
    • Dyno tested
    • Mono-Tube damper with high pressure nitrogen
    • 24-step rebound adjustable dampers
    • Spherical bearings
    • FA synthetic 5w or 10w shock oil
    • T6 6061 Forged aluminum mounts and camber plates
    • Bright dip anodized
    • Height adjustment independent of pre-load
    • Digressive piston technology
    • 5 year manufacturer's warranty (1 year on piston)
    • Swift springs upgrade available
    • Rebuild-able in the USA
    • Revalve-able in the USA
    • Modularity - Upgradeable to 2-Way Canister

    Every Fortune Auto coilover is extensively dyno tested and matched with in specifications to insure a consistent and uniform set of coilovers. This rigorous testing has earned us our ISO certification.

    Custom Spec Valving Options

    • Drag
    • Drift
    • Street
    • Track

    500 SERIES - GENERATION 5 UPDATES

    Ultra Precise Shim Stacks

    Shims are deflection disks that cover up the port holes on a piston. They regulate the fluid flow which generates the force found in a damper. "Valving" or "re-valving" of a shock is accomplished by using a variety of shims that will ultimately provide enough resistance and damping ability for a particular application. Minute differences in the shims' diameter and thickness are very critical; just a thousandths of an inch of variation in the dimensions can change a damper's force profile up to + or - 25%. The shims' consistency is crucial in matching shock absorbers to one another. Generation 5 dampers utilize a high-grade shim material made of Sandvik steel, ensuring precision matched dampers.


    Lightweight Internal Floating Piston

    The new Generation 5 Internal Floating Piston is considerably lighter and uses a low-drag teflon band that drastically reduces stiction. This allows the damper to react quicker to shock forces.

    Customer Reviews

    Based on 9 reviews
    78%
    (7)
    22%
    (2)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    @
    @.
    Love the handling

    I got these coilovers to replace my stock bilsteins on my EVO IX MR and I'm very happy with the result. not only was i able to adjust the ride height, but also the dampers and spring load. They feel good and i have to say, the ride feels a lot smoother than stock. The only downside was i ordered custom spring rates and they came with 8k all around. Still happy with the result though.

    S
    S.
    great

    feel great and smooth

    w
    w.
    FA 500's

    Recently purchased FA500's with the Radial upgrade, and FA 8k springs. I installed them and have been driving the car for about a week. The car feels great! With the dampening setting lower at 6 its smoother then and less harsh then the factory set up. Dialed up the dampening rating to 12 front and rear and its just a little more stiff then factory. Be prepared for the rear to settle about 1/2". front settled about 3/16's. so far so great and happy i made the purchase. Leo was awesome to work with and hands down great customer service and satisfaction.
    Cheers,

    J
    J.M.
    Great quality and service

    Finally installed these on my evo and wow the ride quality was just as great as oem or better. love the service MAP provides!

    D
    D.C.
    Excellent suspension

    I recently purchased the FA500 coilovers for my Evo 9. I custom ordered 10k front and 12K rear spring rates. The car handles absolutely amazing and is not crazy harsh even on these terrible Alaska roads. The hardest part of the install for me was running the rear adjustment extenders but I can confirm they do fit even with the SE's sub in the trunk. I cannot say if they are reliable or not because I have only had them on for 2 weeks.
